Technical Specifications
Product Overview

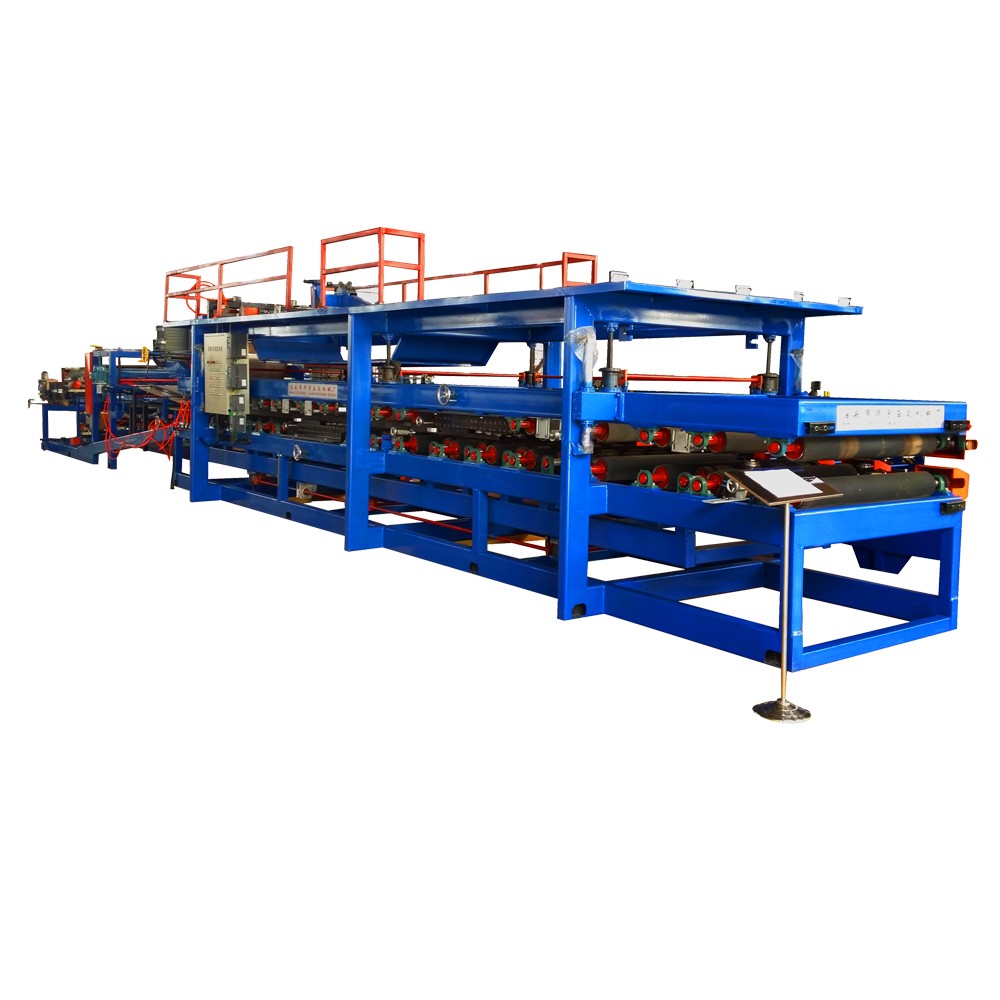

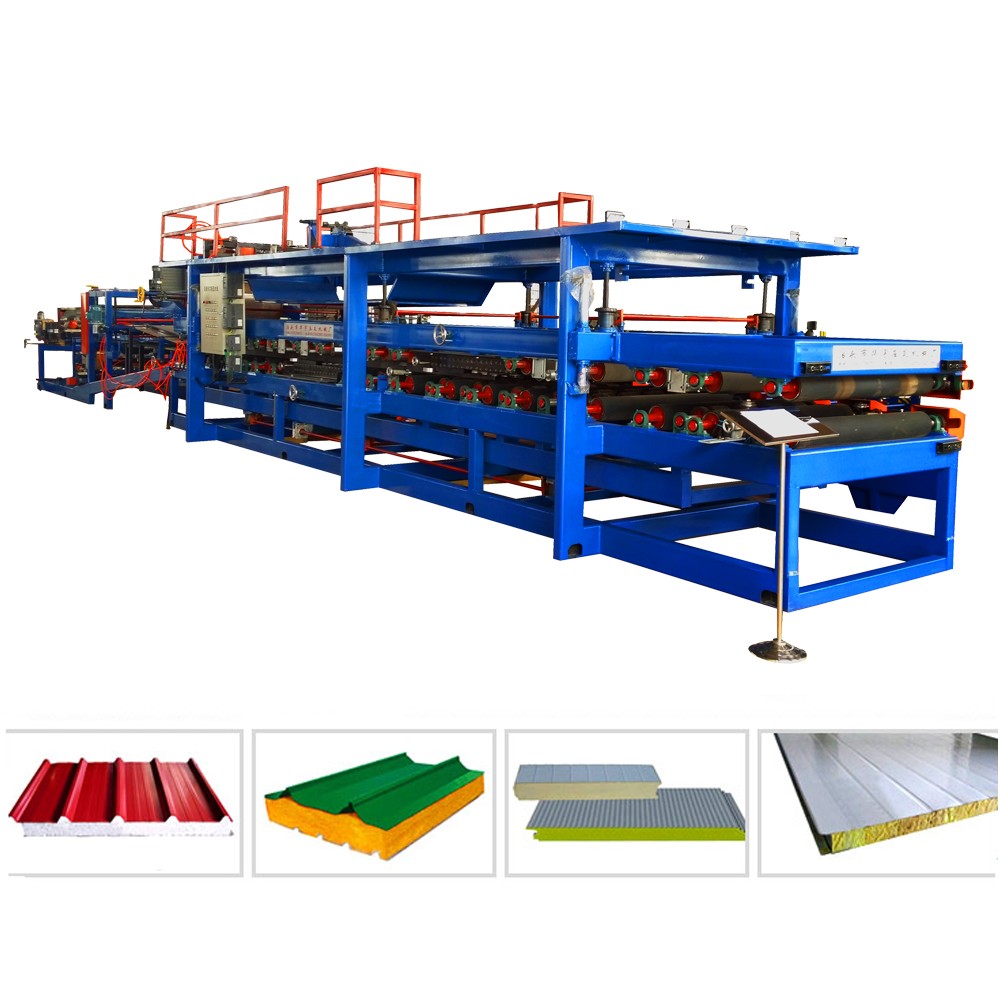

Industrial Sandwich Panel Production System
This high-capacity Z-lock sandwich wall panel production line is engineered for professional drywall and insulated panel manufacturing. It features a fully integrated, automated workflow that manages material feeding, precision roll forming, insulation bonding, and high-speed cutting. Designed for industrial efficiency, this system ensures dimensional accuracy and robust construction, making it an ideal solution for high-volume building material fabrication.
Technical Specifications
- Plate Thickness
- 0.55 mm
- Core Thickness Range
- 20-300 mm
- Production Capacity
- 2-4.5 m/min
- Total Power
- 30 KW
- Total Weight
- 25 ton
Process Workflow
Production Process
- Composite Decoiling

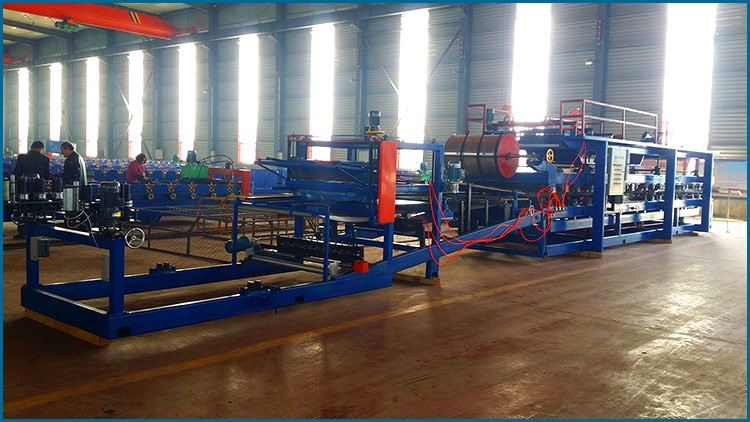

- Roll Forming
- Ribbon & Gelatinizing
- Heating & Compounding
- Crimping & Notching
- Edge Trimming
- Cutting System
- Runout Table
Material Capabilities
- Compatible Core Materials
- EPSRock WoolGlass Silk Floss
Physical Dimensions
Machine Footprint
35 m
Length
2.5 m
Width
2.6 m
Height
