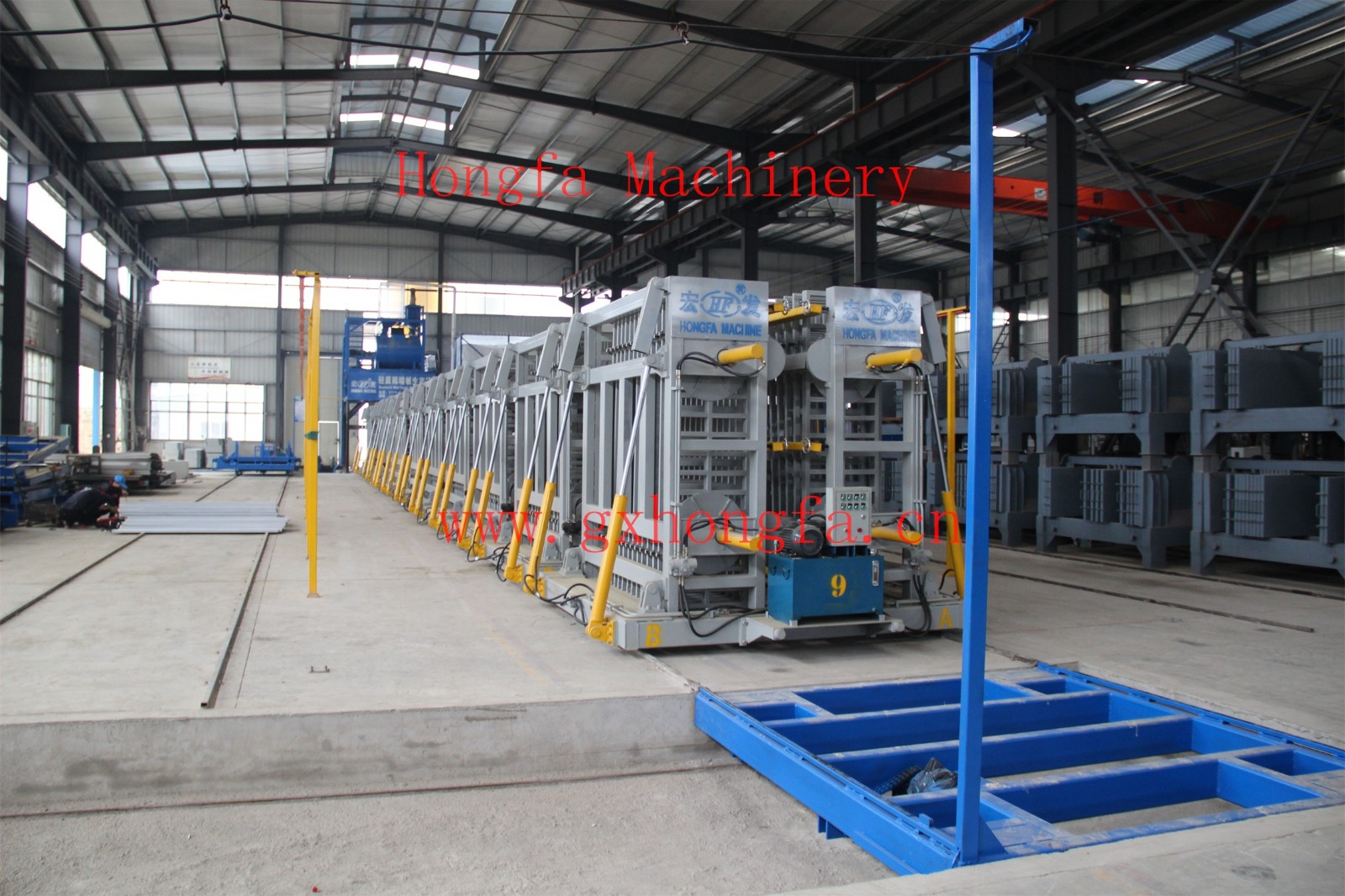

EPS Wall Panel Production Line
This machine produces various sizes and types of wall panels, including those with LECA, EPS, or foam cores, and with or without surface boards. It is engineered for high efficiency and precision, ensuring consistent panel quality and dimensional accuracy.
Technical Specifications
Overview
Advanced EPS Wall Panel Manufacturing
This automated production line is designed for the efficient manufacturing of lightweight EPS sandwich wall panels, utilizing a vertical casting process. The system integrates seven distinct working sections, including material batching, mixing, filling, and curing, to ensure consistent quality and high output. Engineered for modern construction requirements, it supports the production of fire-resistant, sound-insulated, and waterproof panels suitable for various building applications.
Production Capacity
Annual Output Capacity
100,000 sqm
Minimum Output
600,000 sqm
Maximum Output
- Mold Cars Per Line
- 30 units
Panel Specifications
Standard Panel Dimensions
| Dimension | Value |
|---|---|
| Length | 2440 mm |
| Width | 610 mm |
| Thickness | 50-200 mm |
Technical Performance
Key Performance Indicators
- Fire Resistance: >3 hours (for 90mm panel)
- Sound Insulation: >40 dB
- Water Absorption Rate: 3.3%
Infrastructure Requirements
Facility Requirements
| Requirement | Specification |
|---|---|
| Workshop Area | 1200-2000 sqm |
| Ceiling Height | 9 meters |
| Installed Power | 100 kW |
| Water Usage | 1 ton per 100 sqm |
System Features
- Production Process Steps
- EPS ExpandingBatchingMixingElectronic ControlFillingCuringDemolding
