Technical Specifications
Overview

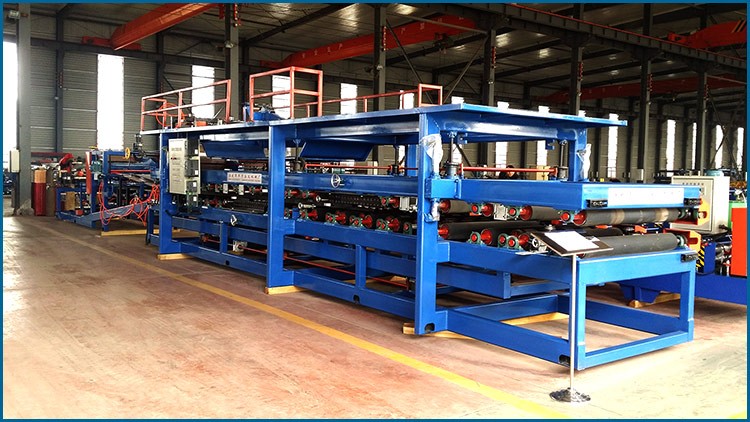

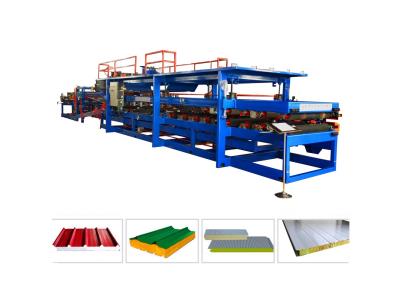

Automated Sandwich Panel Production
This automated production line is engineered for the continuous manufacturing of high-quality sandwich panels with EPS, rock wool, or glass silk floss cores. The system integrates decoiling, profiling, core insertion, laminating, and precision cutting into a single, efficient workflow. Designed for stability and high precision, it features a PLC control system that simplifies operation while ensuring consistent panel dimensions and structural integrity.
Technical Specifications
- Plate Thickness
- 0.3 mm
- Core Thickness Range
- 20-300mm
- Production Speed
- 2-4.5 m/min
- Total Power
- 30 KW
- Machine Weight
- 25 ton
- Overall Dimensions
- 35000 x 2500 x 2600 mm
Capabilities
Control System
PLC ControlledAutomatedHigh Precision
- Compatible Core Materials
- EPSRock WoolGlass Silk Floss

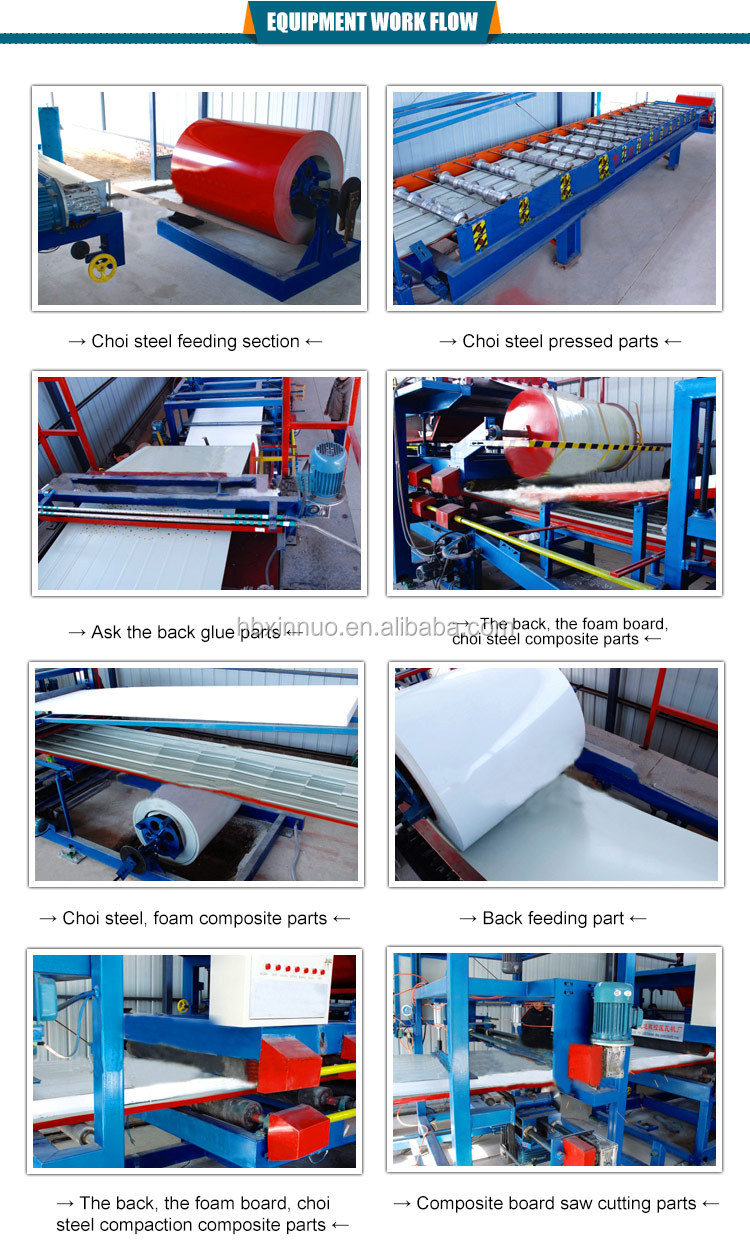

Process Flow
Production Workflow
- Decoiling

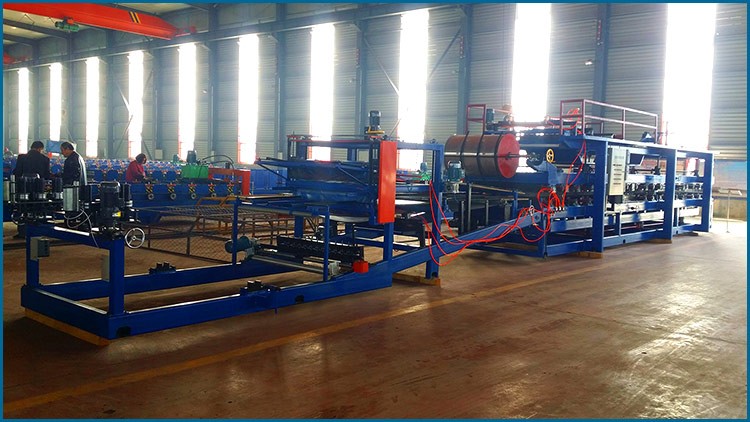

- Roll Forming
- Ribbon Application
- Gelatinizing
- Heating
- Compounding
- Crimping
- Notching
- Edge Trimming
- Cutting
- Runout Table
