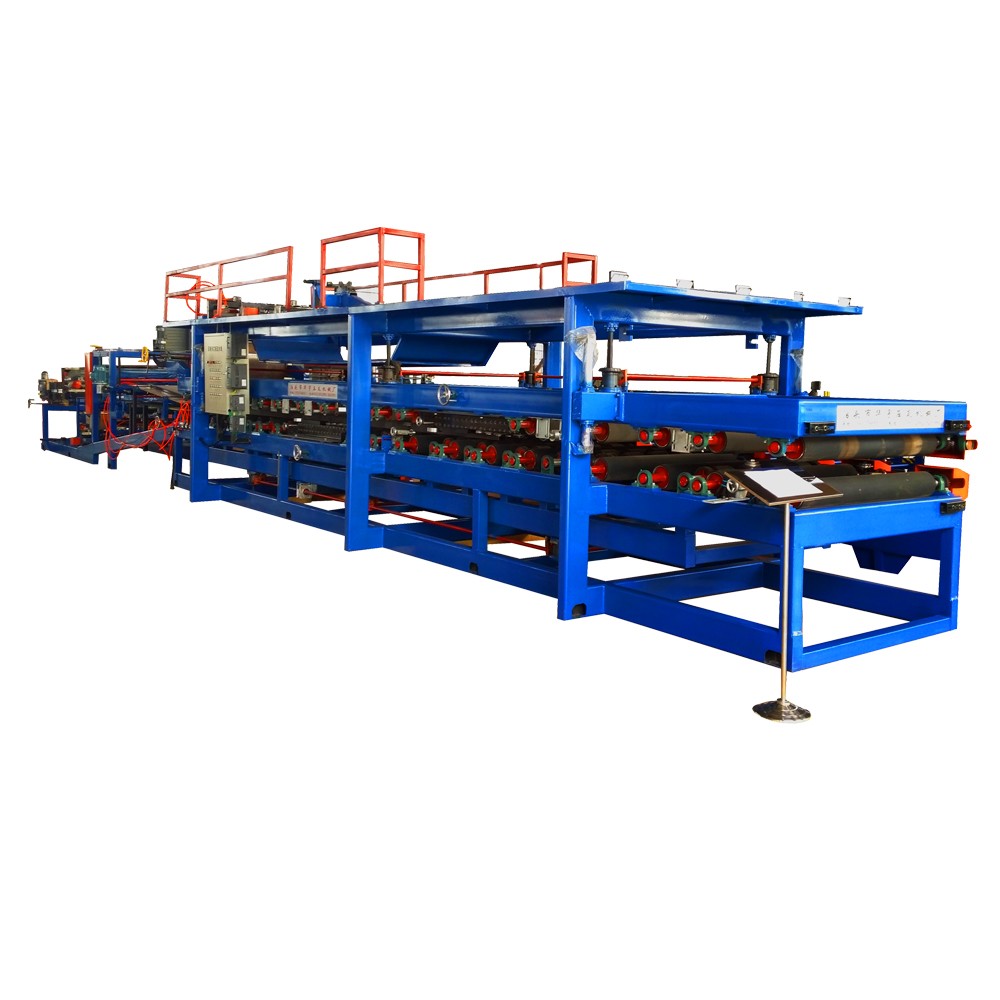

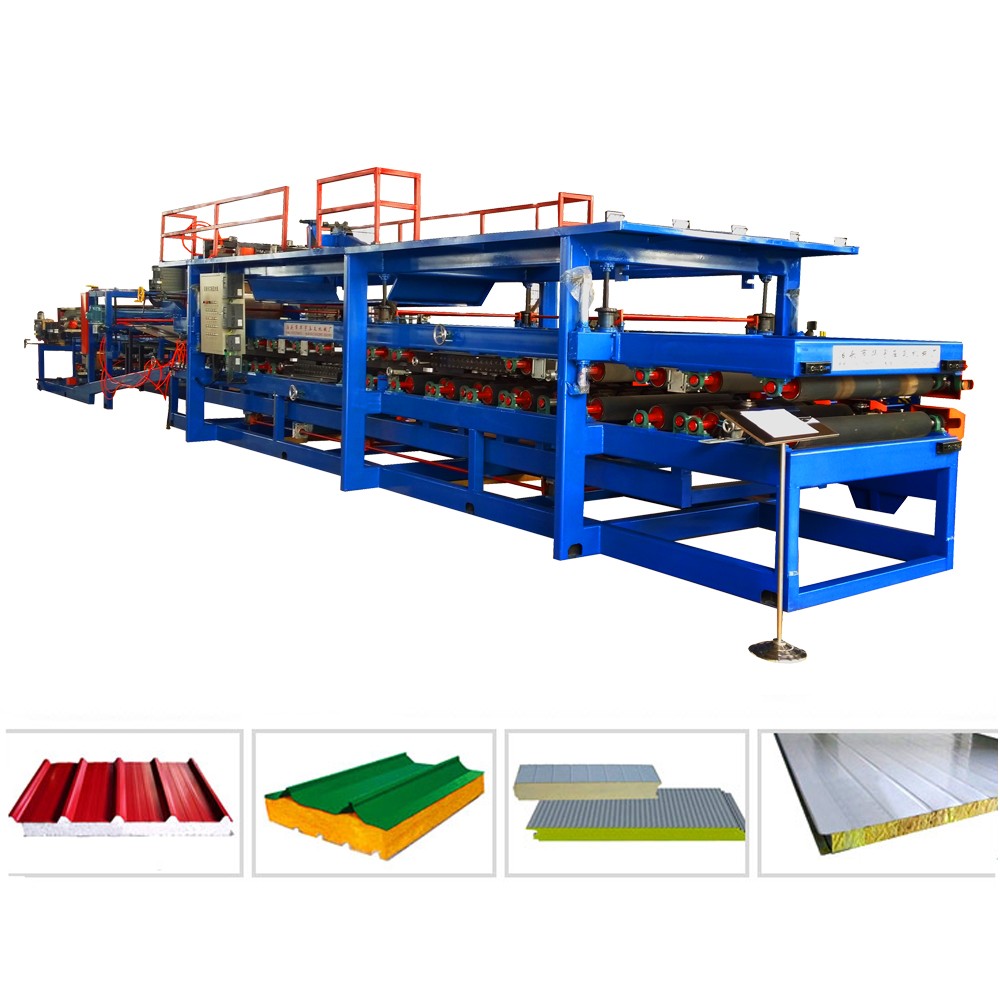

EPS Sandwich Panel Production Line
This automated production line manufactures EPS sandwich panels. It integrates decoiling, profiling, core insertion, lamination, cutting, and stacking processes.
Technical Specifications
Overview

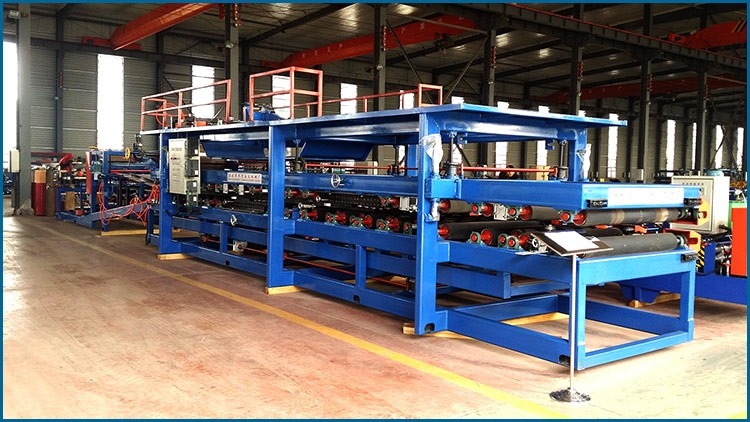

Automated EPS Sandwich Panel Production Line
This comprehensive production line is designed for the continuous manufacturing of high-quality insulated sandwich panels. The system integrates multiple automated processes including decoiling, roll forming, core insertion, lamination, and precision cutting to ensure consistent panel quality. Engineered for durability and efficiency, it is an ideal solution for producing wall and roofing panels for construction, refrigeration, and prefabricated building applications.
Technical Specifications
Key Features
AutomatedHigh PrecisionStable OperationEasy to Operate
- Total Power
- 30 KW
- Control System
- PLC Control System
Production Capabilities
Production Speed
2 m/min
Min Speed
4.5 m/min
Max Speed
- Compatible Core Materials
- EPSRock WoolGlass Silk Floss
- Plate Thickness
- 0.3 - 0.8 mm
- Core Thickness
- 20 - 300 mm
Dimensions & Weight
- Total Weight
- 25 ton
- Overall Dimensions
- 35000mm (L) x 2500mm (W) x 2600mm (H)

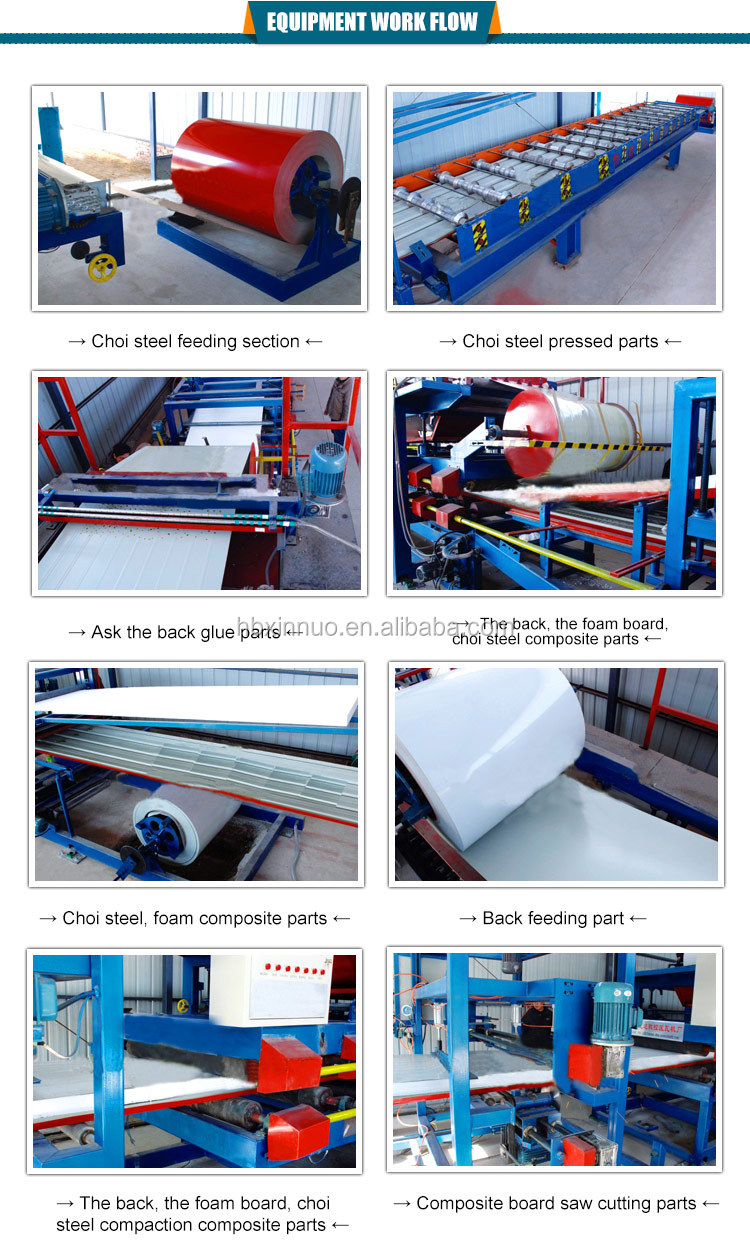

Process Flow
Production Workflow
- Composite Decoiler
- Roll Forming

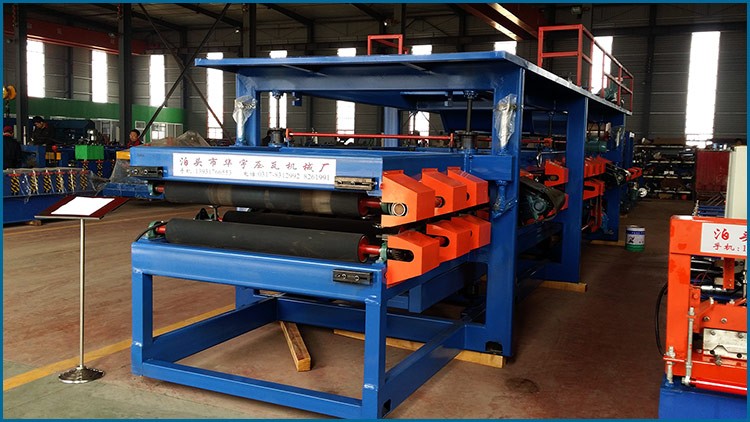

- Laminating System (Ribbon, Gelatinizing, Heating, Compounding)
- Crimping & Notching
- Edge Trimmer
- Cutting System
- Runout Table
