Z-Lock Sandwich Panel Production Line for EPS/Rock Wool

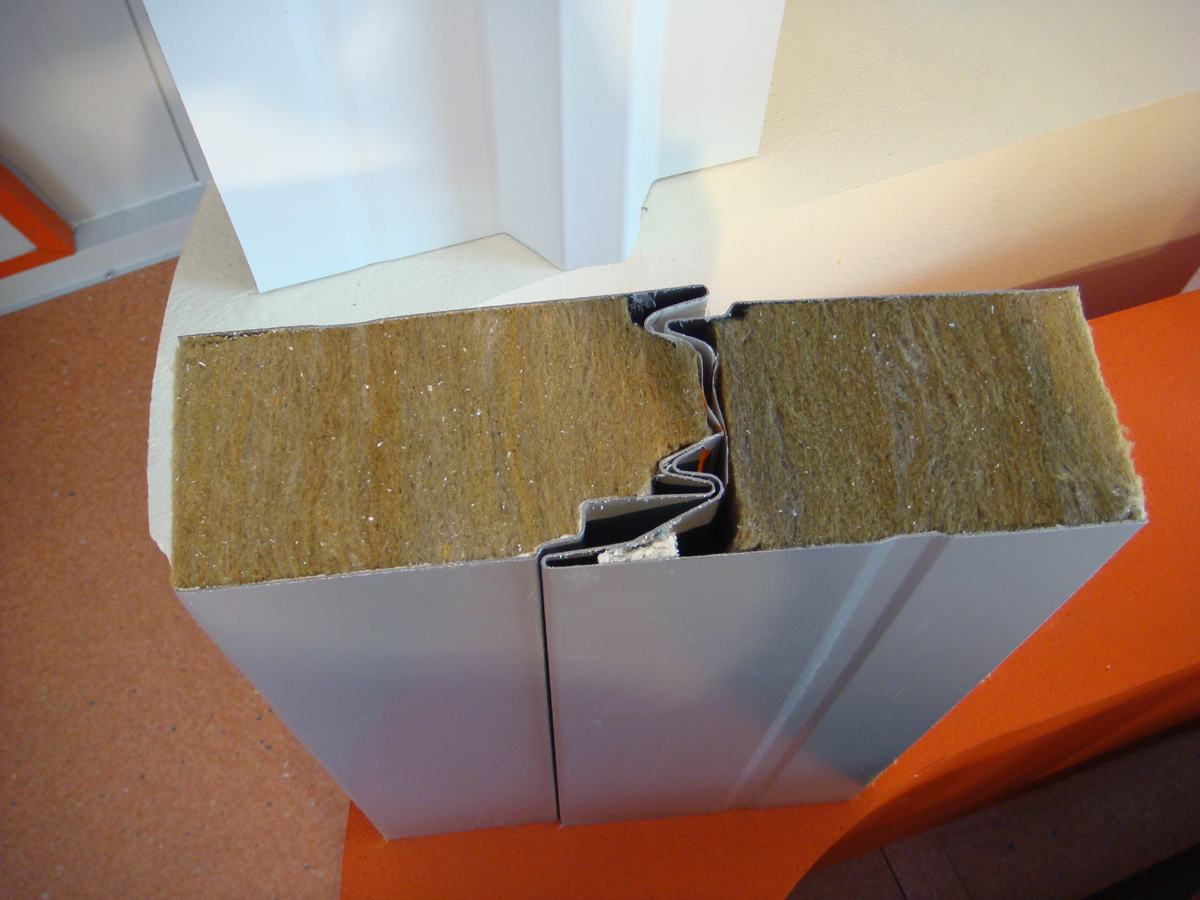

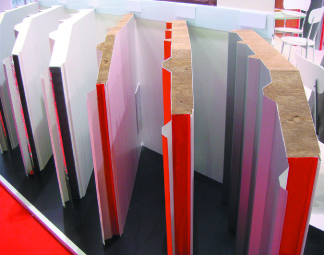

This production line is engineered for manufacturing sandwich panels with EPS or rock wool insulation, featuring a unique Z-lock joint. It is designed to produce panels of significant thickness, suitable for applications in high-latitude regions.
Technical Specifications
Product Overview
High-Efficiency Z-Lock Panel Production
The Z-lock Sandwich Panel Production Line is engineered for high-precision manufacturing of thick EPS and Rock Wool panels featuring unique Z-lock joints. Specifically optimized for performance in high-latitude regions, this system ensures superior insulation and structural integrity. Available in both fully-automatic and semi-automatic configurations, it offers scalable production capacity to meet diverse project requirements.
Technical Capabilities
Key Production Metrics
6 m/min
Maximum Production Speed
432 m²/h
Maximum Capacity
Technical Specifications
Model Specifications
| Item | HIM-S-8AZ | HIM-S-7Z |
|---|---|---|
| Type | Fully-automatic | Semi-automatic |
| Total Power (kw) | 200 | 65 |
| Weight (t) | 180 | 40 |
Equipment Dimensions
- HIM-S-8AZ: 90 x 25 x 6 m³
- HIM-S-7Z: 60 x 4.5 x 3 m³
Applications
- Applications
- RoofingWall PanelsCold Climate ConstructionThermal InsulationStructural Partitioning
