Square LED Indicator Push Button Switch
This square LED indicator push button switch provides visual indication through an integrated LED. It is designed for panel mounting and electrical connection via pins, suitable for electrical power applications requiring a small form factor and clear visual signaling.
Technical Specifications
Product Overview
Professional Industrial Push Button Switch

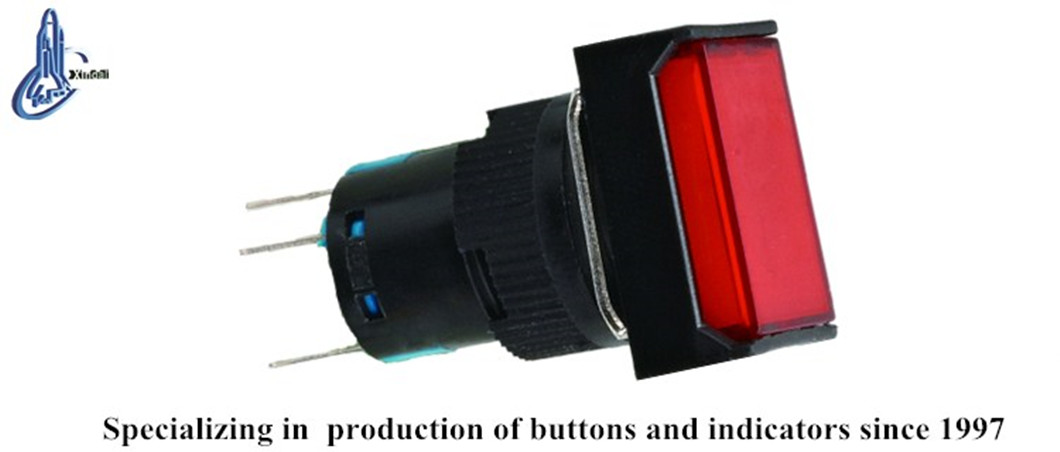

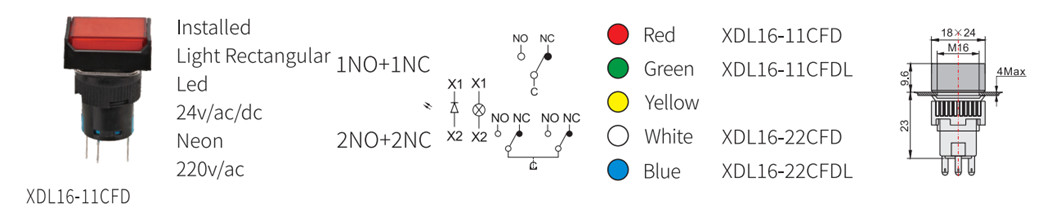

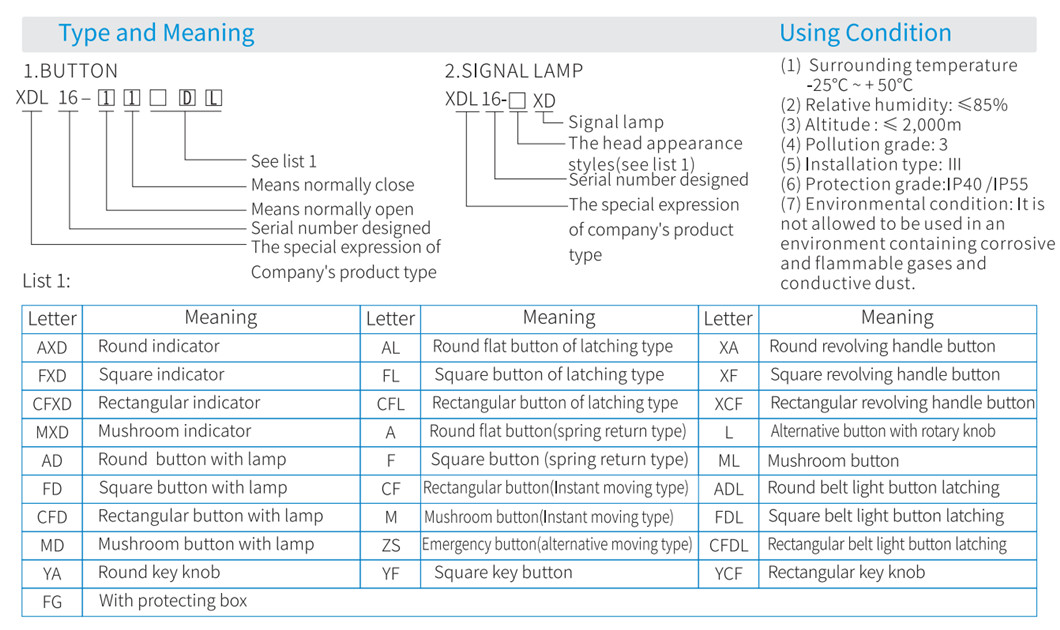

The XDL16 series square LED indicator push button switch is designed for high-performance industrial control environments. Engineered for versatility, it supports both AC voltage up to 660V and DC voltage below 400V. Featuring a durable zinc alloy body and high-grade anti-flam plastic, this switch utilizes silver alloy contacts to minimize electrical erosion, ensuring reliability in signal and interlocking control applications.
Electrical Specifications
- Rated Insulation Voltage
- AC 600V (50Hz/60Hz)
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
- Power Frequency Withstand Voltage
- AC 2.5KV/min
Performance Metrics
Mechanical Life
1,000,000 cycles
Pushbutton
500,000 cycles
Selector Switch
Electrical Life
5,000,000 cycles
Pushbutton
250,000 cycles
Selector Switch
Operating Environment
Operational Ratings
- Operating Temperature: -25°C to +50°C
- Relative Humidity: ≤85%
- Altitude: ≤2,000m
- Pollution Grade: 3
- Protection Grade: IP40/IP55
Certifications & Standards
- Compliances
- CEISO9001RoHSULGB/T14048.1IEC60947-5-1
