Metal Spring Return Mushroom Head Push Button Switch

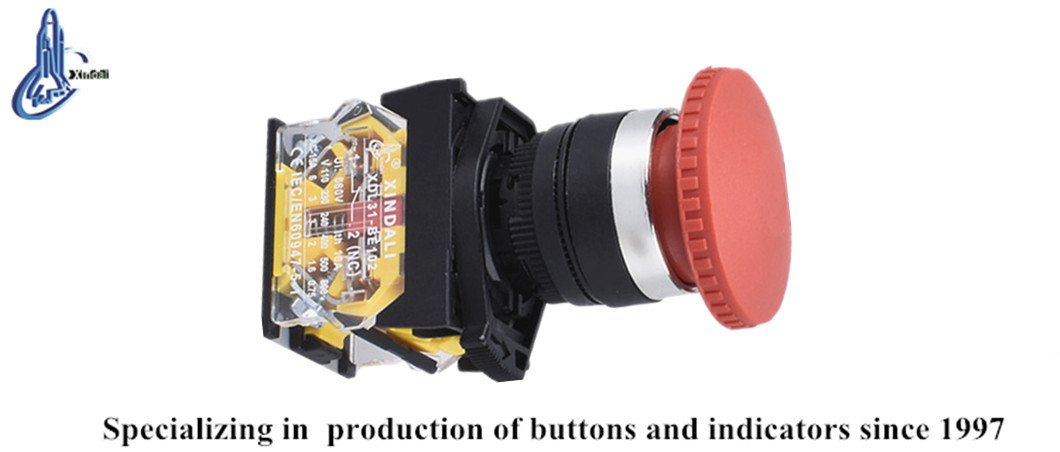

This metal push button switch features a spring return mechanism and a red mushroom head actuator. The mushroom head design allows for easy activation, making it suitable for emergency stop or critical control functions.
Technical Specifications
Overview
Industrial Mushroom Head Push Button
This metal spring-return mushroom head push button switch is engineered for reliable control circuit applications. Featuring a durable zinc alloy body and silver alloy contacts, it provides high resistance to electrical erosion. Compliant with international standards, it is suitable for industrial machinery, signal indication, and emergency stop configurations.

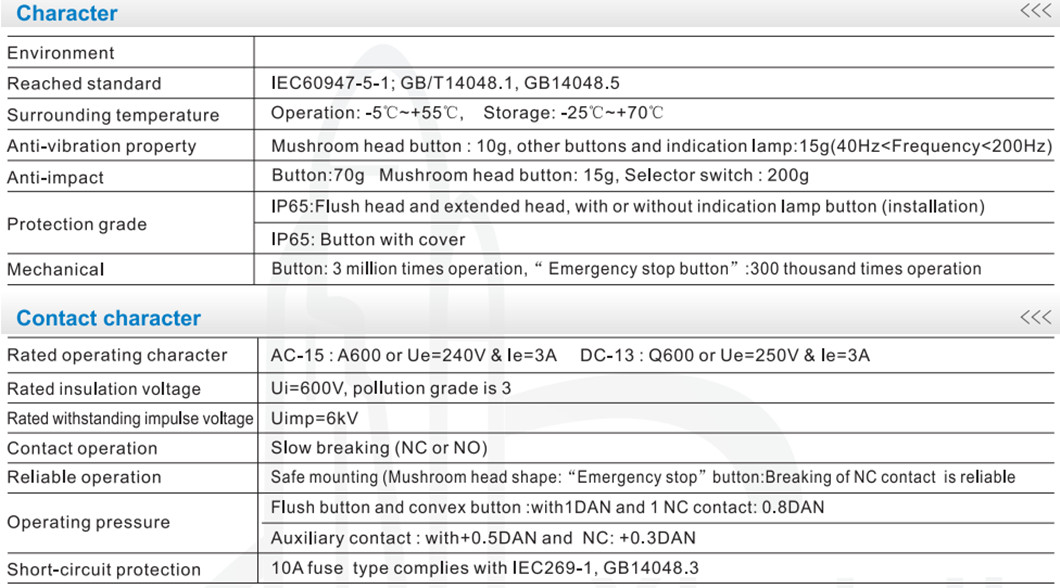

Technical Specifications
- Max AC Voltage
- 660 V
- Max DC Voltage
- 400 V
- Thermal Current
- 10 A
- Insulation Voltage
- 600 V
- Pollution Grade
- 3
Environmental Conditions
- Operating Temperature Range
- -5°C to +55°C
- Storage Temperature Range
- -25°C to +70°C
- Operating/Storage Humidity
- 35% - 85% RH
Certifications
- Certifications & Standards
- CEULISO9001RoHSIEC60947-5-1GB/T14048.1
Mechanical Performance
Mechanical Life
3,000,000 cycles
Standard Button
300,000 cycles
Emergency Button
Protection Grade
IP40IP54IP65IP66IP67IP68
- Fastening Torque
- 0.8Nm (Max: 1.2Nm)
