Waterproof Push Button Switch with Rubber Cap
This is a waterproof push button switch with a rubber cap for enhanced protection. It is designed for use in industrial and commercial settings where reliable, weather-resistant switching is essential.
Technical Specifications
Product Overview
Robust Waterproof Push Button Switch

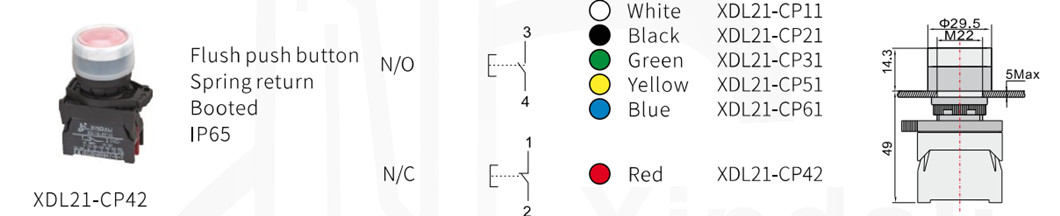

The XDL21-CP42 series push button switch features a durable rubber cap designed to provide reliable IP65-rated protection against dust and moisture ingress. Engineered for heavy-duty industrial environments, it features a zinc alloy main body with high-grade anti-flame plastic and silver alloy contacts for superior electrical erosion resistance. This versatile switch is suitable for control circuits in distribution boxes, power stations, and communication networks.
Technical Specifications
Ingress Protection
IP65
- Rated Insulation Voltage (Ui)
- 660 V
- Conventional Thermal Current (Ith)
- 10 A
- Mounting Diameter
- 22 mm
- Operating Temperature Range
- -5°C to +55°C
Standards & Compliance
- Certifications
- CEISO 9001RoHSULIEC 60947-5-1
Performance Metrics
Key Operational Metrics
3,000,000 operations
Mechanical Life
60 cd/m2
Brightness
6 kV
Impulse Voltage
