Technical Specifications
Product Overview
Professional Sandwich Panel Production

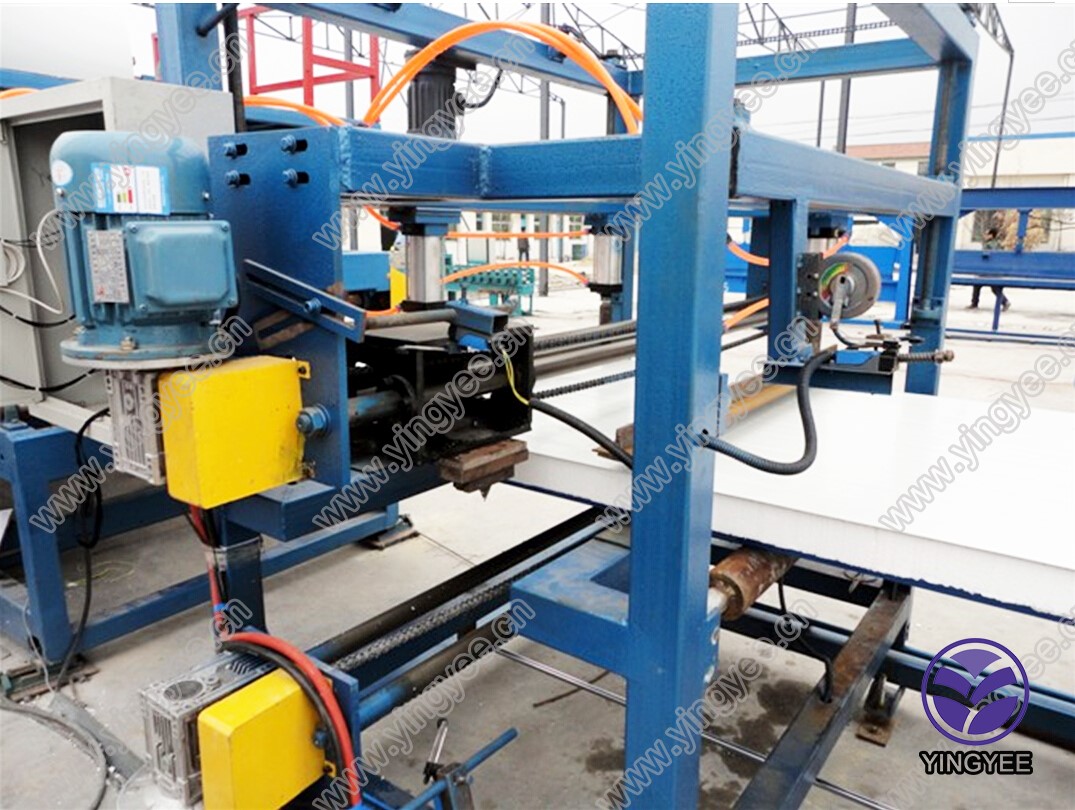

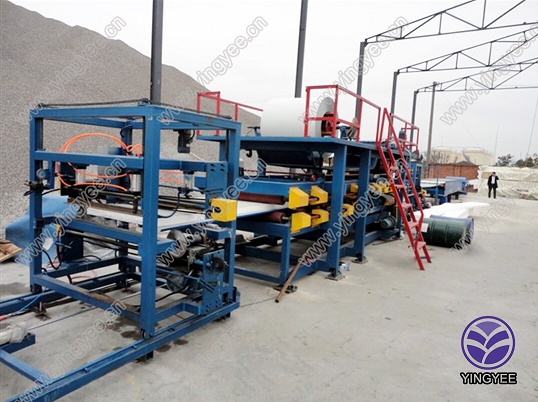

This automated roll forming line is engineered for the high-volume manufacturing of rock wool sandwich panels. The comprehensive system integrates decoiling, precision roll forming, and automated cutting into a single, efficient production workflow. Designed for industrial applications, it ensures consistent panel dimensions and quality for insulated construction materials.
Main Components
System Components
- Profile forming machine
- Compound forming machine
- Cutting machine
- De-coiler
- Supporting table
- Assistant equipments
Technical Specifications
Roll Forming Performance
5.5 kw
Main Power
1,200 mm
Input Width
7 m/min
Max Forming Speed
Material Specifications
| Parameter | Detail |
|---|---|
| Forming Steps | 14-16 |
| Shaft Material | 45# Steel |
| Shaft Diameter | 75 mm |
| Thickness Range | 0.3-0.8 mm |
- Machine Dimensions
- 9525 x 1450 x 1070 mm
