Technical Specifications
Product Overview
Industrial Emergency Stop Solution

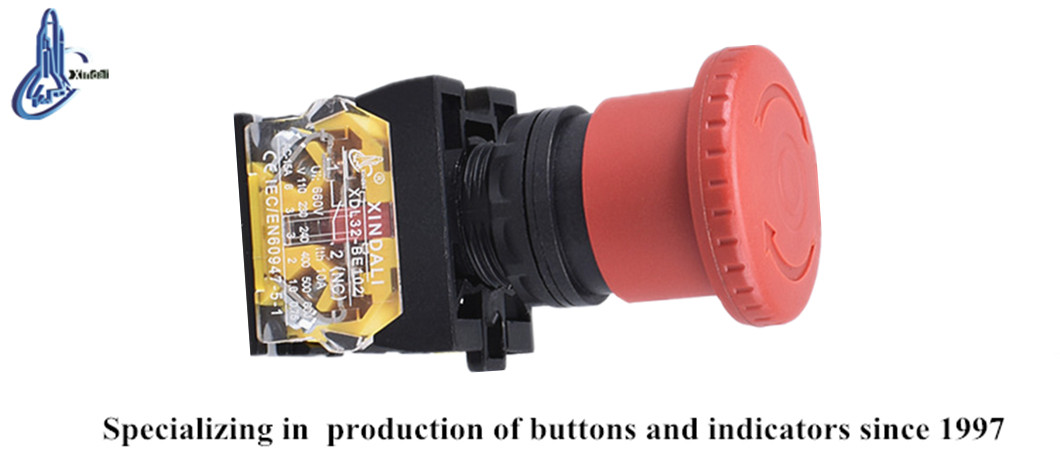

This mushroom-head emergency stop switch is engineered for safety-critical industrial applications, featuring a reliable turn-to-release mechanism for immediate manual reset. Built with high-grade zinc alloy and anti-flame materials, it ensures durability and consistent performance in demanding environments. The switch is compliant with international safety standards, making it an ideal choice for machine control and emergency shutdown systems.
Electrical Ratings
Rated Insulation Voltage
600 V
Insulation Voltage
- Conventional Thermal Current
- 10 A
- Compatibility
- AC up to 660VDC below 400V
Environmental & Durability
Protection Grade
IP65IP66IP67IP68
Mechanical Life
300,000 ops
Emergency Stop Cycles
- Operating Temperature Range
- -5°C to +55°C
Technical Specifications
Standards Compliance
- IEC 60947-5-1
- GB/T 14048.1
- GB 14048.5
- CE Certified
- UL Certified

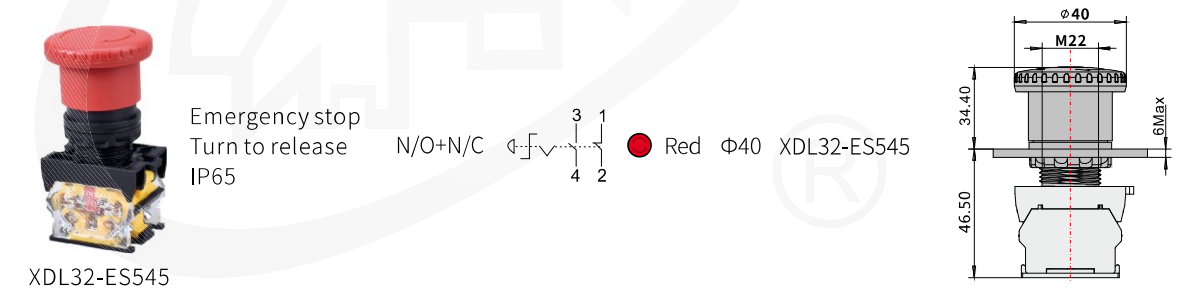

Mounting Details
| Parameter | Value |
|---|---|
| Mounting Hole Diameter | M22 |
| Actuator Diameter | 40mm |
| Fastening Torque | 0.8Nm (Max 1.2Nm) |
