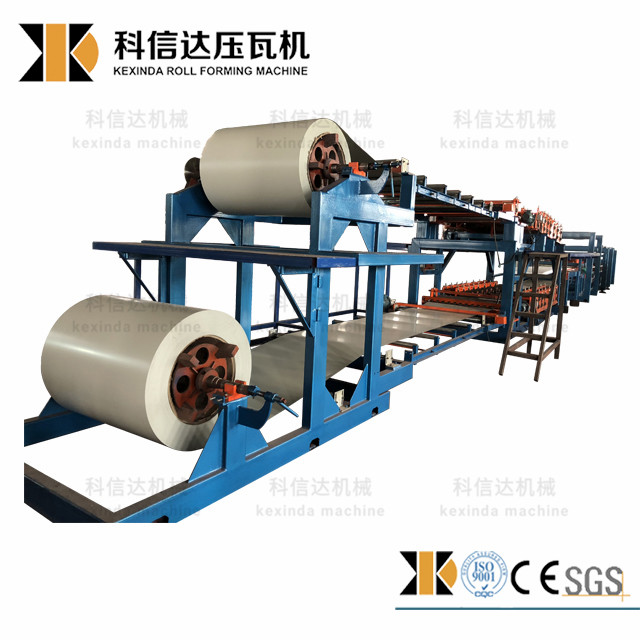

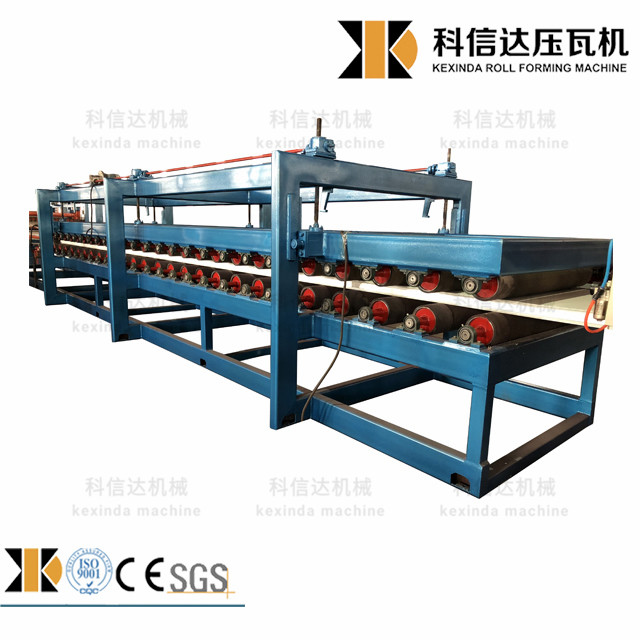

Insulated Sandwich Panel Roll Forming Machine
This sandwich panel production line is designed for producing insulation composite boards. It uses a stepless speed regulation system to efficiently produce corrugated composite panels.
Technical Specifications
Overview
Professional Sandwich Panel Production Line
This high-efficiency sandwich panel roll forming machine is engineered for the precise manufacturing of insulated composite panels used in industrial, commercial, and residential construction. Featuring an integrated stepless speed regulation system and advanced PLC control, the machine ensures consistent quality for both EPS and rock wool boards. Its robust, automated design optimizes output while maintaining structural accuracy across a wide range of panel thicknesses.
Performance
Production Capacity
600,000 m²/year
Annual Output
6 m/min
Max Production Speed
Technical Specifications
Technical Data
| Parameter | Value |
|---|---|
| Main Motor Power | 32-34 kW |
| Panel Width | 1000mm / 1200mm |
| Panel Thickness | 50-250mm |
| Steel Coil Thickness | 0.3-0.8mm |
| Machine Weight | 17.5t |
| Voltage | 380V / 50Hz / 3Phase |
- Control System
- PLC system with frequency converter
- Certifications
- CEISOTUV
Facility Requirements
Required Factory Environment
- Flat concrete flooring
- Compressed air supply 0.4-0.6MPa
- Minimum 5m cornice height
- Minimum 45m effective width
- Voltage fluctuation within 10%
