Flush Mount Push Button Switch with Return Symbol
This flush mount switch is waterproof and features a green button with a return symbol. It is designed for controlling circuits with AC voltage up to 660V.
Technical Specifications
Product Overview
Professional Flush Mount Switch

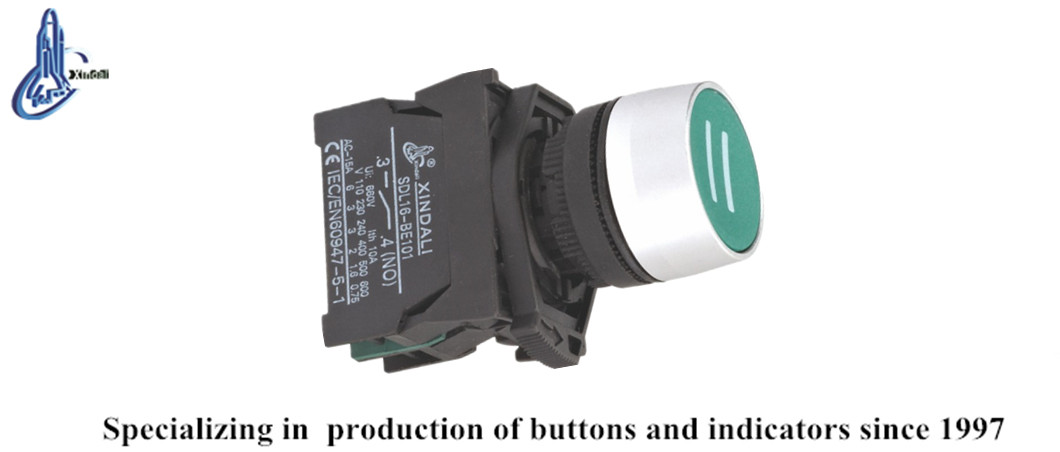

This flush-mounted push button switch is engineered for high-performance industrial control, featuring a durable green actuator with clear return symbols. Constructed with a zinc alloy body and high-grade anti-flam plastic, it offers superior resistance and reliable operation in demanding environments. It is fully certified for safety and quality, making it an ideal choice for distribution cabinets, power stations, and communication network controls.
Technical Specifications
Mechanical Life
1,000,000 cycles
Push Button
500,000 cycles
Selector Switch
Electrical Parameters
| Parameter | Value |
|---|---|
| Rated Insulation Voltage | AC 600V |
| Conventional Heating Current | 10A |
| Insulation Resistance | ≥50MΩ |
| Contact Resistance | ≤25mΩ |
| Dielectric Withstand | AC 2.5KV/min |
Compliance and Standards
- Certifications & Compliance
- CEISO 9001RoHSULIEC 60947-5-1GB/T 14048.1

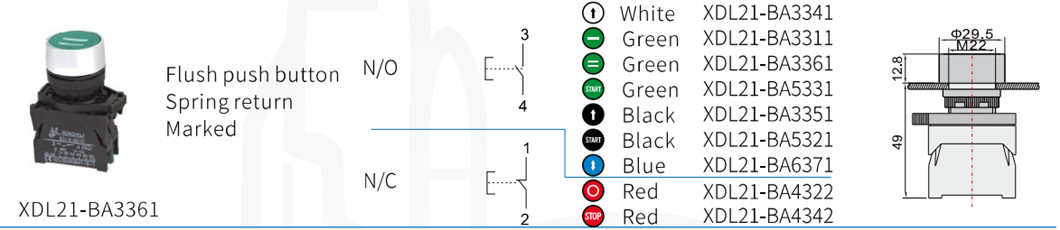

Physical Dimensions
Mounting & Dimensions
- Mounting hole diameter: 22mm (M22)
- Head diameter: 29.5mm
- Overall height: 49mm
- Bezel height: 12.8mm
