EPS Sandwich Panel Production Line

This continuous production line manufactures EPS sandwich panels. The rolling mill machine integrates uncoiling, roll forming, EPS lamination, cutting, and stacking processes.

Request a Quote Download PDFPDF

EPS Sandwich Panel Machine China Supplier Continuous Sandwich Panel Production Line - Image 1

Technical Specifications

Overview

Continuous EPS Sandwich Panel Production Line

This continuous production line is engineered for the high-efficiency manufacturing of EPS (Expanded Polystyrene) sandwich panels. The system integrates multiple critical processes, including decoiling, roll forming, adhesive application, laminating, cutting, and stacking into a single automated workflow. Designed for versatility and precision, it is an ideal solution for producing insulated panels for construction, roofing, wall cladding, and cold storage applications.

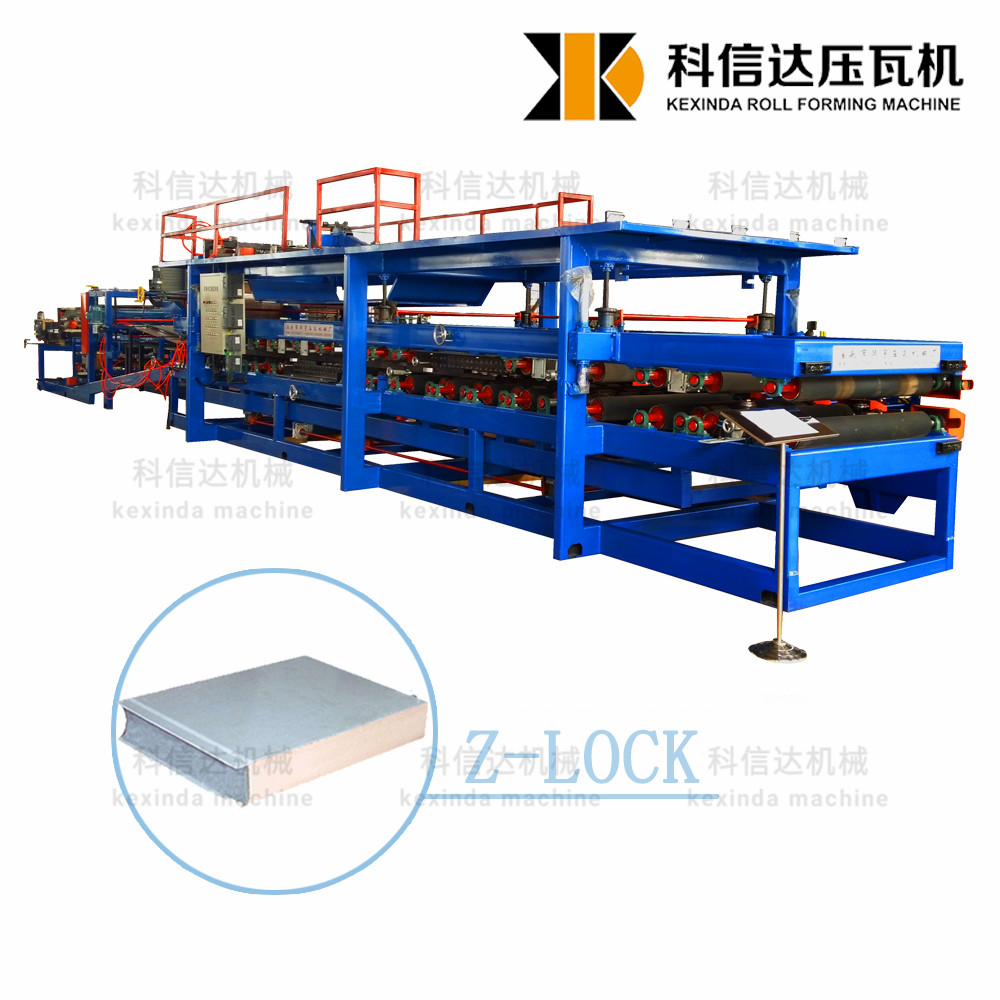

Continuous EPS sandwich panel production line overview — The production line features advanced automation and control systems to ensure consistent high-quality output.

Technical Specifications

Coil Material: EPS
Plate Thickness: 0.3-0.8mm
Core Thickness: 40-250mm
Total Power: 30 KW
Total Weight: 25 ton
Control System: PLC

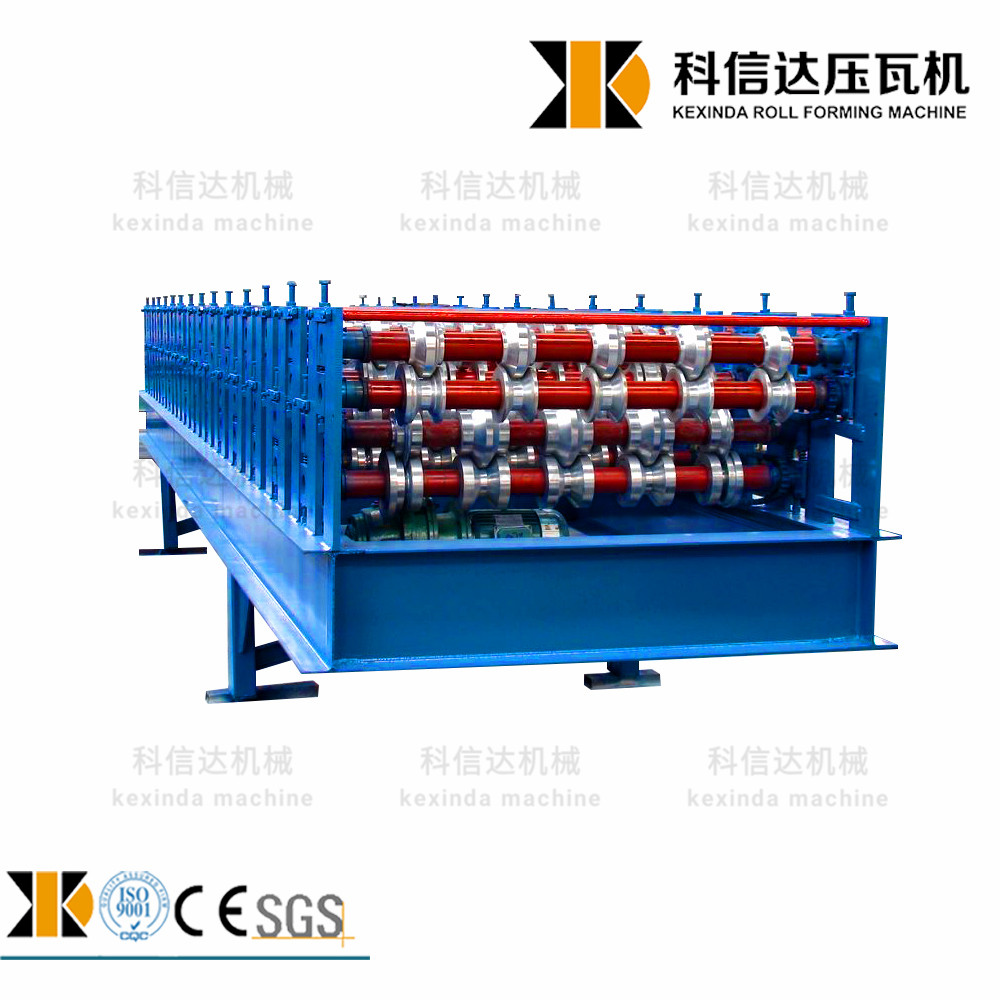

Close-up of the roll forming stations — Multiple forming stations with precision rollers ensure accurate shaping and lamination of panel layers.

Performance Metrics

Production Capacity

4.5 m/min

Maximum Speed

2 m/min

Minimum Speed

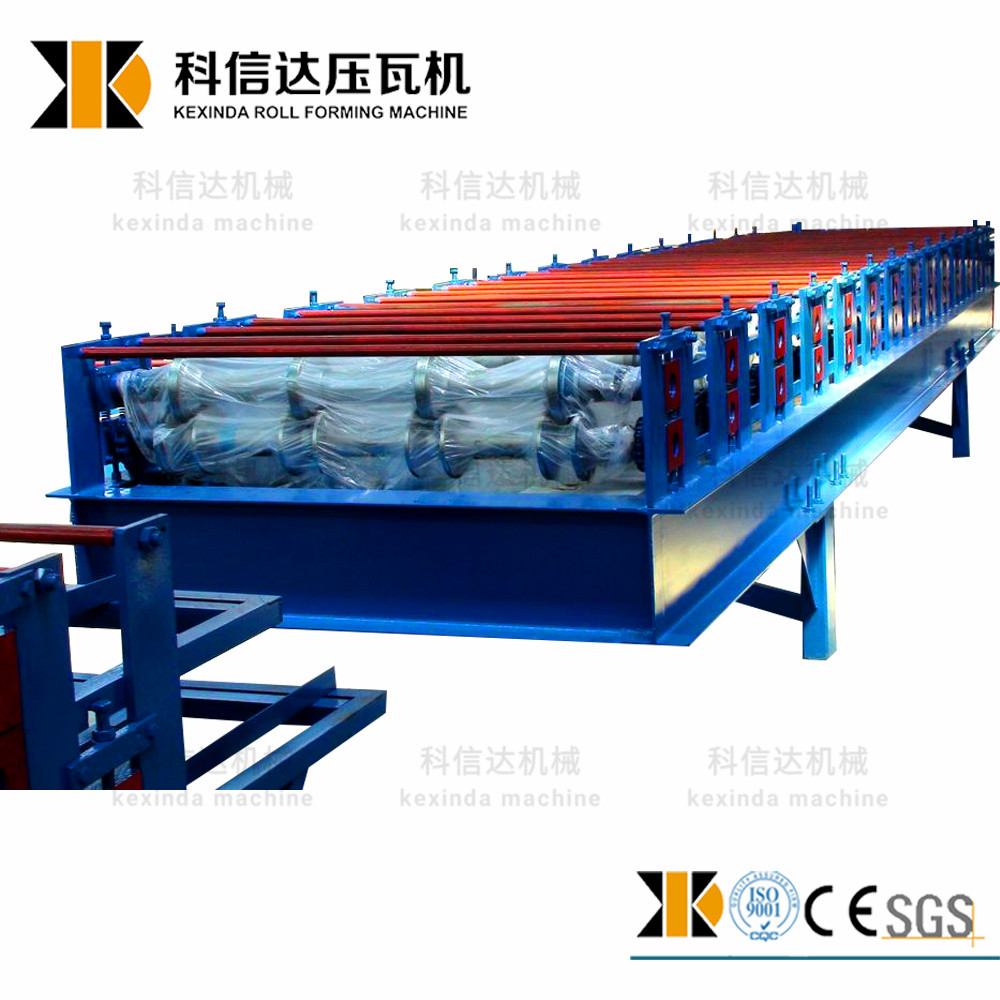

Finished EPS sandwich panel production line view — The system integrates forming, laminating, and cutting processes to create finished panels for construction applications.

Dimensions

Overall Dimensions

Dimension	Value
Length	42000mm
Width	3600mm
Height	3300mm

Features

System Capabilities

Automated decoiling and feeding
Integrated roll forming system
Continuous EPS core insertion
Precision adhesive application
Automated cutting and stacking

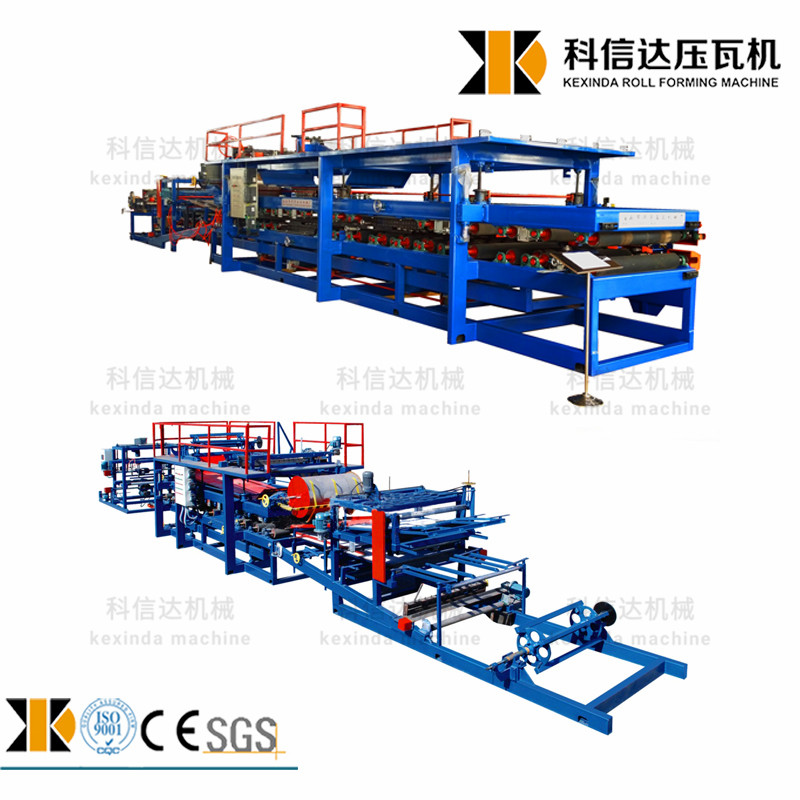

Detailed view of the production line assembly — Robust construction designed for durability and long-term reliability in large-scale manufacturing.
