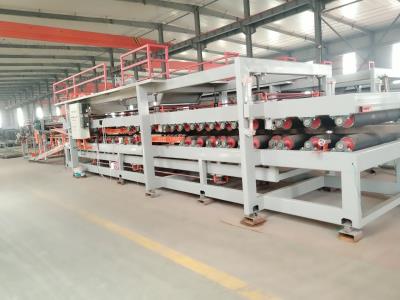

EPS Sandwich Panel Production Line
This automated production line efficiently manufactures EPS sandwich panels. It integrates processes such as forming, laminating, cutting, and stacking to create insulated boards.
Technical Specifications
Overview

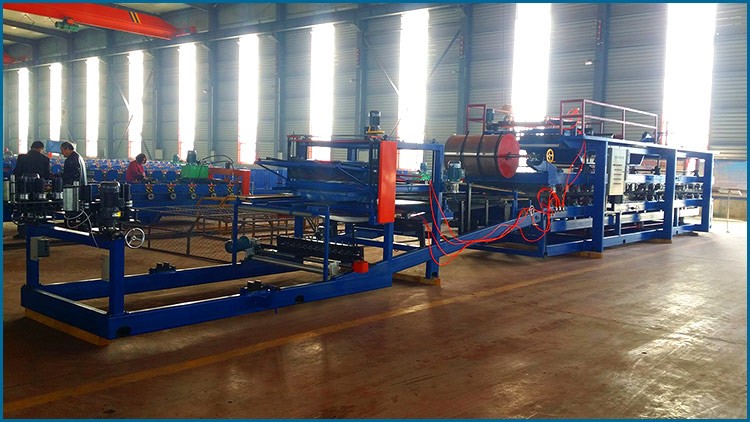

High-Efficiency Sandwich Panel Production Line
This automated production line is engineered for the continuous manufacturing of high-quality insulated sandwich panels. Designed for versatility, the system supports various core materials including EPS, rock wool, and glass silk floss, making it suitable for diverse construction applications such as walls, roofs, and facades. The integrated PLC control system ensures high precision, stable operation, and consistent output, significantly enhancing production efficiency while maintaining strict quality standards.
Technical Specifications
- Supported Core Materials
- EPSRock WoolGlass Silk Floss
- Plate Thickness
- 0.8 mm
- Core Thickness Range
- 20-300mm
- Production Speed
- 2-4.5 m/min
- Total Power
- 30 KW
- Control System
- PLC automated control
Dimensions & Weight
Total Weight
25 ton
System Weight
Overall Dimensions
| Dimension | Value | Unit |
|---|---|---|
| Length | 35,000 | mm |
| Width | 2,500 | mm |
| Height | 2,600 | mm |

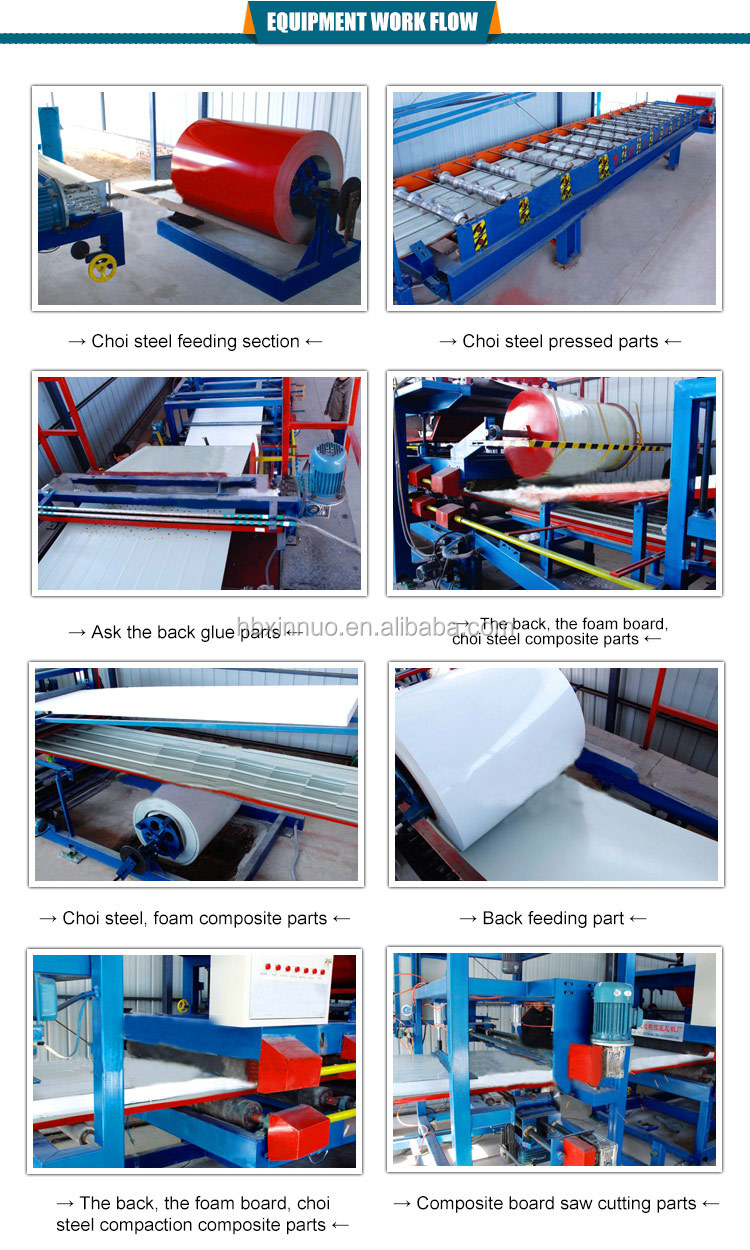

Production Process
Workflow Sequence
- Composite Decoiler

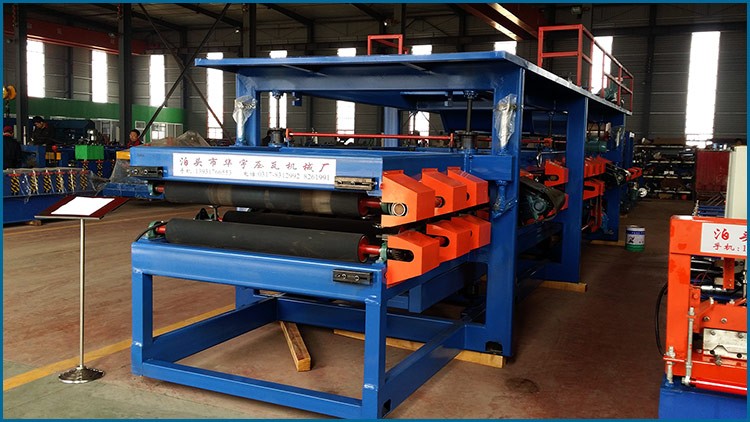

- Roll Forming
- Laminating (Ribbon, Gelatinizing, Heating, Compounding)
- Crimping and Notching
- Edge Trimming
- Cutting System
- Runout Table
