Technical Specifications
Overview
High-Efficiency Sandwich Panel Production

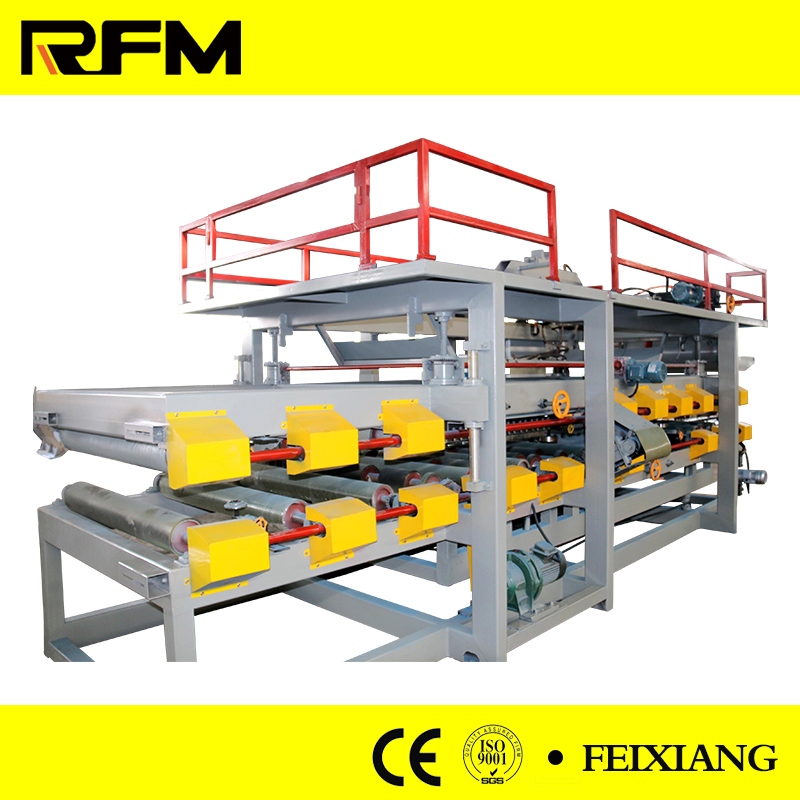

This automated production line is engineered for the continuous manufacturing of sandwich panels with EPS, rock wool, or PU cores. Designed for industrial-scale construction and insulation applications, the system features a robust steel-welded frame and precise forming stations to ensure consistent dimensional accuracy. With customizable power requirements and adjustable panel thickness capabilities, this line offers a versatile solution for high-volume manufacturing environments.
Key Metrics
Performance Metrics
4 m/min
Max Working Speed
14 steps
Forming Stations
32 kw
Compound Machine Power
Technical Specifications
Processed Material Properties
| Property | Specification |
|---|---|
| Material | Galvanized steel or Aluminum |
| Thickness | 0.3 - 0.8 mm |
| Yield Strength | 235 - 450 mpa |
| Core Material Compatibility | EPS, Rock wool, PU |
Machine Dimensions & Weight
- Size: 450,000 x 8,000 x 5,000 mm
- Weight: 15.0 Tons
Output Dimensions
- Width: 1000 mm, 1200 mm
- Thickness: 50 - 250 mm
Line Components
- Included Line Components
- DecoilerMain forming machineControl panelHydraulic pumpHydraulic cutting deviceComposite forming machineManual holder
Operational Requirements
Operational Needs
- Voltage: 380V / 50Hz / 3P
- Electric support wires: 8m²
- Labor requirement: 8-12 workers
Certifications & Support
Compliance
CE CertifiedLetters Patent
Warranty and Service
- Warranty: 2 years
- Delivery: 45 days after deposit
- Support: 24/7 online and overseas engineer service
