Product Overview
Versatile Industrial Switching

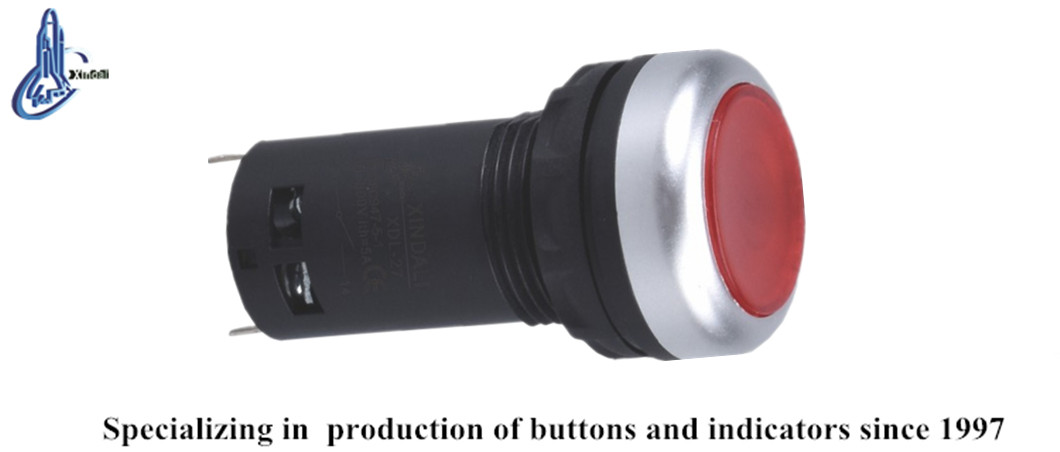

The XDL27-CW3462 is a high-performance electric indicator pushbutton switch designed for demanding industrial environments. Built with a combination of robust zinc alloy and high-grade anti-flame plastic, it features silver alloy contacts to ensure high electrical erosion resistance and long-term durability. This versatile component is ideal for signal, warning, and emergency control tasks within distribution cabinets, control systems, and communication networks.
Technical Specifications
Electrical Ratings
600 V
Max Insulation Voltage
10 A
Heating Current
2.5 KV
Withstand Voltage
Performance Metrics
| Metric | Value |
|---|---|
| Insulation Resistance | ≥50MΩ |
| Contact Resistance | ≤25mΩ |
| Voltage Wave Tolerance | ±20% |
| Indicator Brightness | 60cd/m² |
Mechanical & Environmental
Service Life
- Mechanical Life (Pushbutton): 1,000,000 cycles
- Mechanical Life (Selector): 500,000 cycles
- Electrical Life (Pushbutton): 5,000,000 cycles
- Electrical Life (Selector): 250,000 cycles
- Continuous Working Life: 100,000 hours

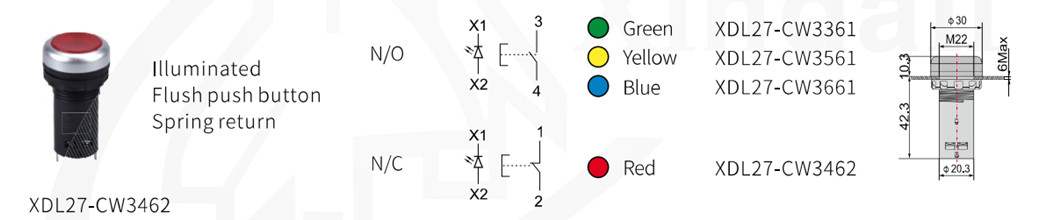

Mounting Specs
- Mounting Diameter: 30mm
- Thread Size: M22
- Max Panel Thickness: 6mm
- Base Diameter: 20.3mm
- Height Above Surface: 10.3mm
- Total Height: 42.3mm
Certifications & Standards
- Compliance & Certifications
- CEISO 9001ROHSULIEC 60947-5-1GB/T 14048.1
