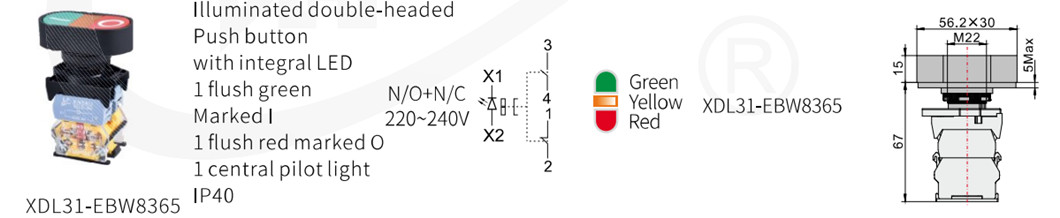

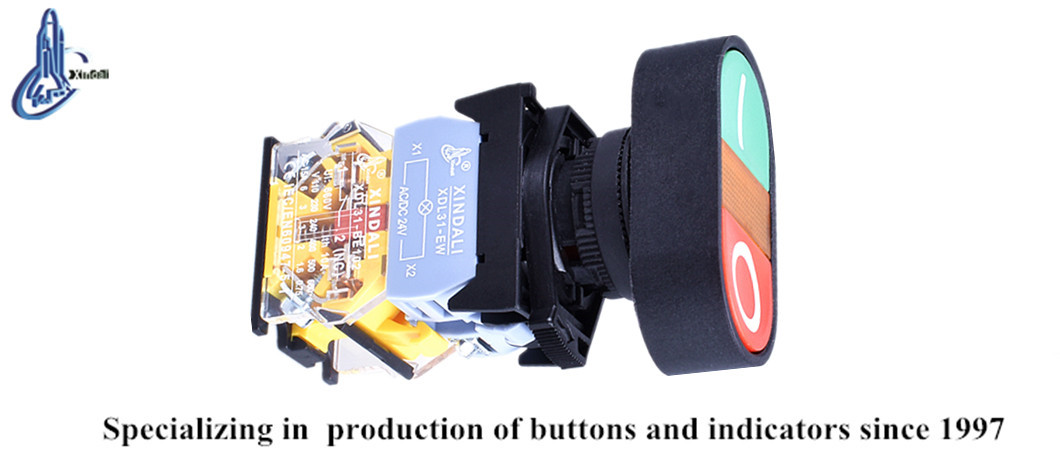

Double Head Push Button Switch with Lamp
This double-headed push button switch features integrated lamps for clear on/off indication. Designed for industrial applications, it is suitable for control panels and machinery.

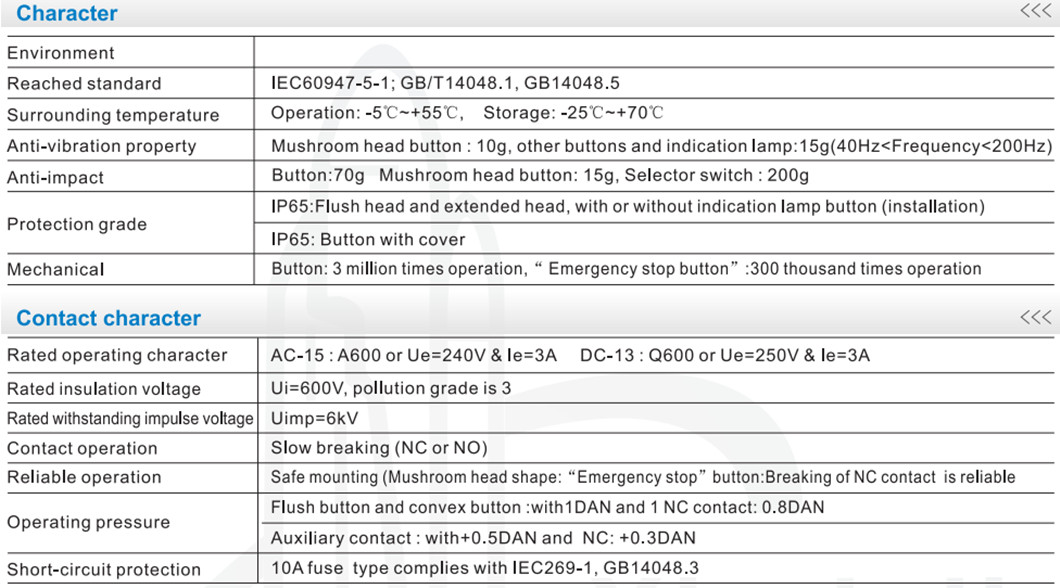

Technical Specifications
Product Overview
Industrial Double Head Control Switch
This double-head push button switch features an integrated indicator lamp for efficient on-off control in industrial circuitry. Designed for reliability, it incorporates a zinc alloy body with high-grade anti-flame plastic and silver alloy contacts to resist electrical erosion. It is ideal for signal, warning, and emergency control applications in AC and DC electrical systems.
Technical Standards
Standards Compliance
- IEC60947-5-1
- GB/T14048.1
- GB14048.5
- Certifications
- CEISO 9001RoHSUL
Electrical Ratings
Key Electrical Metrics
600 V
Max AC Voltage
400 V
Max DC Voltage
6 kV
Impulse Voltage
- Short-circuit Protection
- 10A fuse type (IEC269-1, GB14048.3)
Environmental and Protection
Protection Ratings
IP40IP54IP65IP66IP67IP68
- Ambient Temperature
- Operating: -5°C to +55°C; Storage: -25°C to +70°C
- Pollution Grade
- 3
Mechanical Performance
Mechanical Life Cycles
| Component | Operations |
|---|---|
| Standard Button | 3,000,000 |
| Emergency Stop | 300,000 |
- Fastening Torque
- 0.8 Nm
