Digital Clamp Meter with Bluetooth

This digital clamp meter measures AC/DC current, voltage, resistance, and performs diode tests. It features Bluetooth connectivity for data analysis and non-contact voltage detection.

Request a Quote Download PDFPDF

Digital Clamp Multimeter Current NCV Voltage Resistance Diode Backlight HP-7200APP - Image 1

Technical Specifications

Overview

Versatile Bluetooth-Enabled Clamp Multimeter

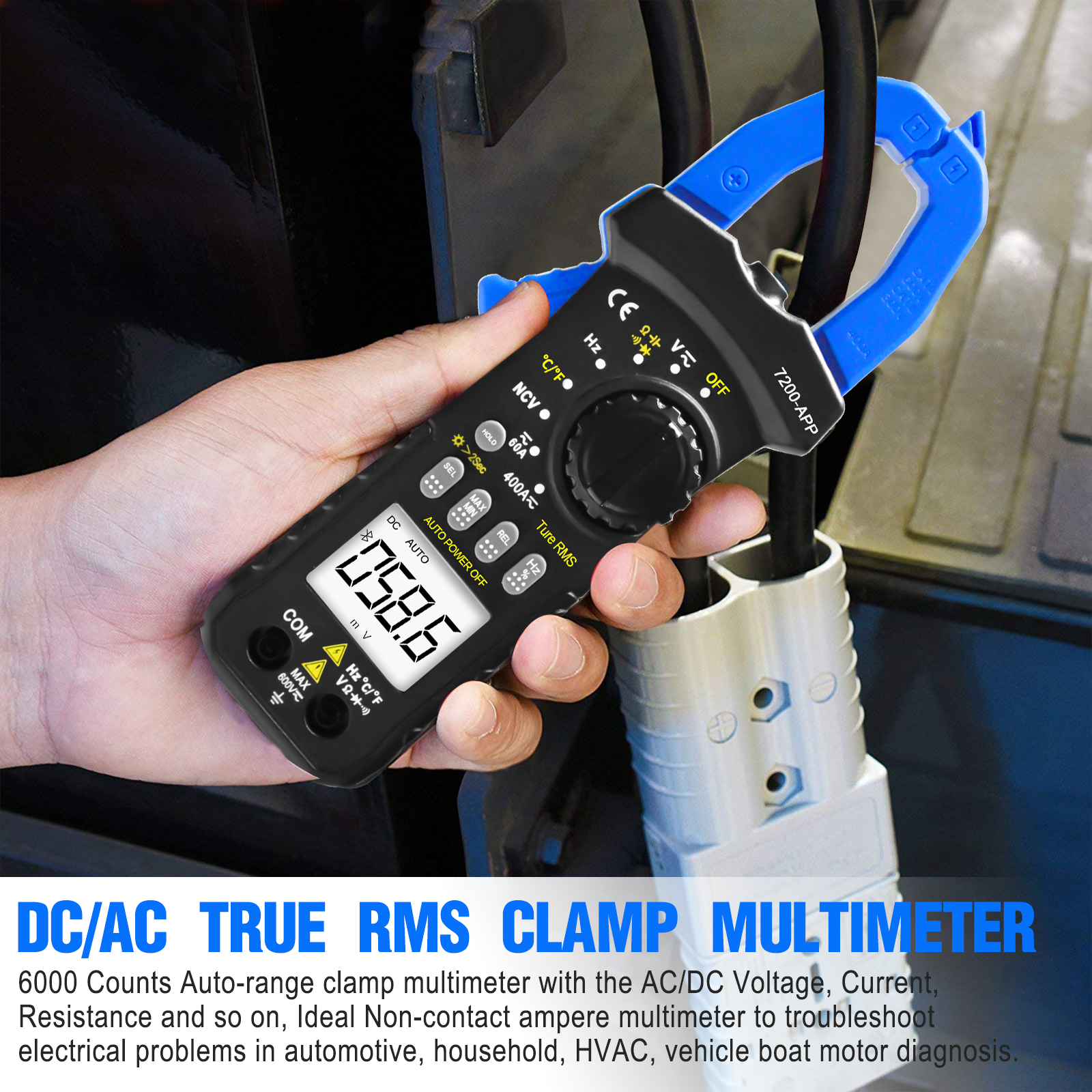

The HP-7200APP is a professional-grade 6000-count auto-ranging clamp meter designed for accurate AC/DC measurements in automotive, HVAC, and industrial environments. It features integrated Bluetooth connectivity, allowing users to sync data with Android or iOS devices via the AiLink app for real-time analysis from up to 15 meters away. With built-in Non-Contact Voltage (NCV) detection and True RMS capabilities, this tool ensures both safety and precision for complex electrical troubleshooting.

Key Performance Metrics

Featured Ratings

400 A

Max AC/DC Current

600 V

Max Voltage

6,000

Display Counts

26 mm

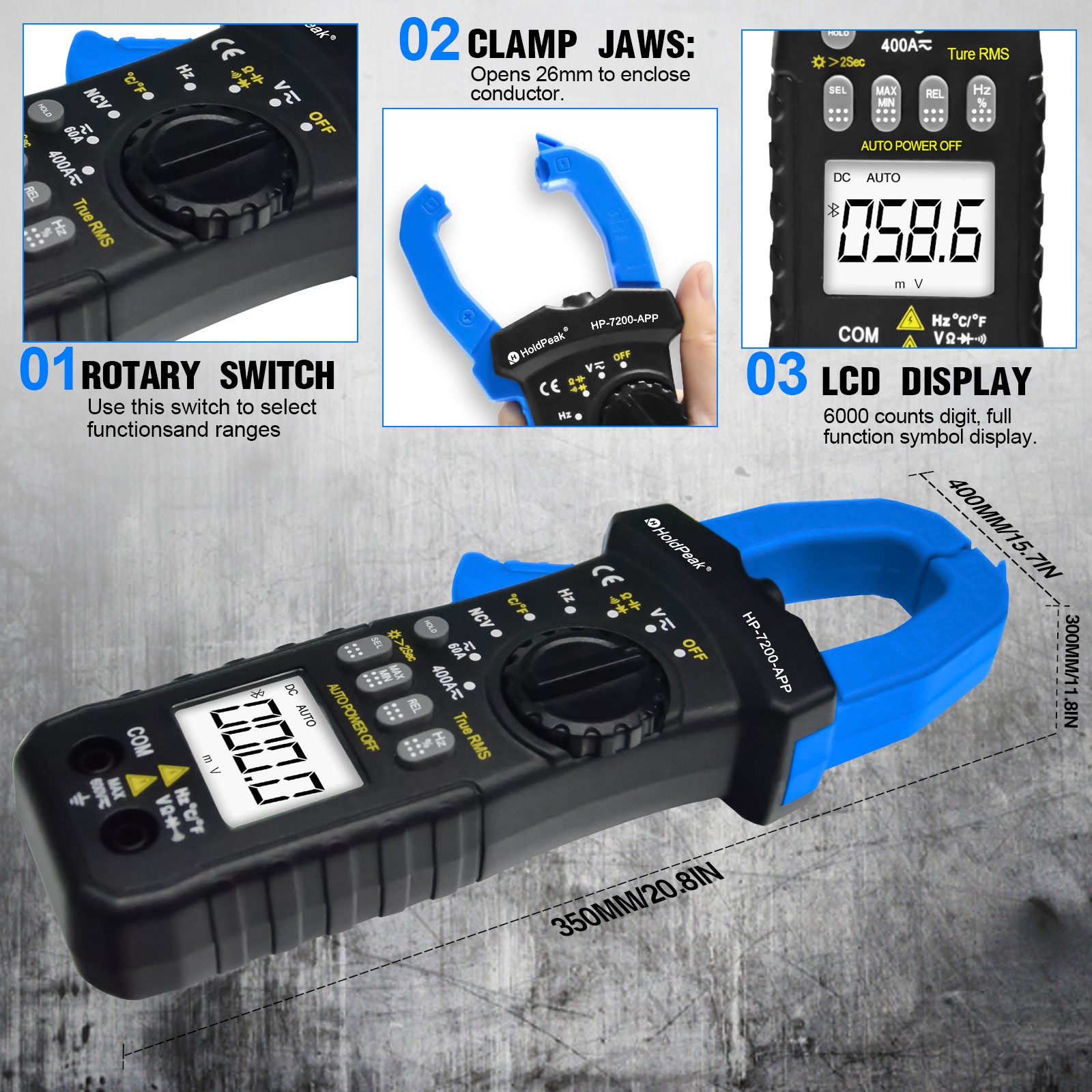

Jaw Opening

Measurement Ranges

Voltage & Current Ranges

Function	Range	Accuracy
DC Voltage	600mV to 600V	±(0.5%+2) to ±(0.8%+2)
AC Voltage	6V to 600V	±(1.0%+3) to ±(1.5%+3)
DC Current	60A to 400A	±(2.0%+10) to ±(3.0%+10)
AC Current	60A to 400A	±(2.0%+10) to ±(3.0%+10)
Resistance	600Ω to 60MΩ	±(1.0%+2) to ±(1.5%+3)

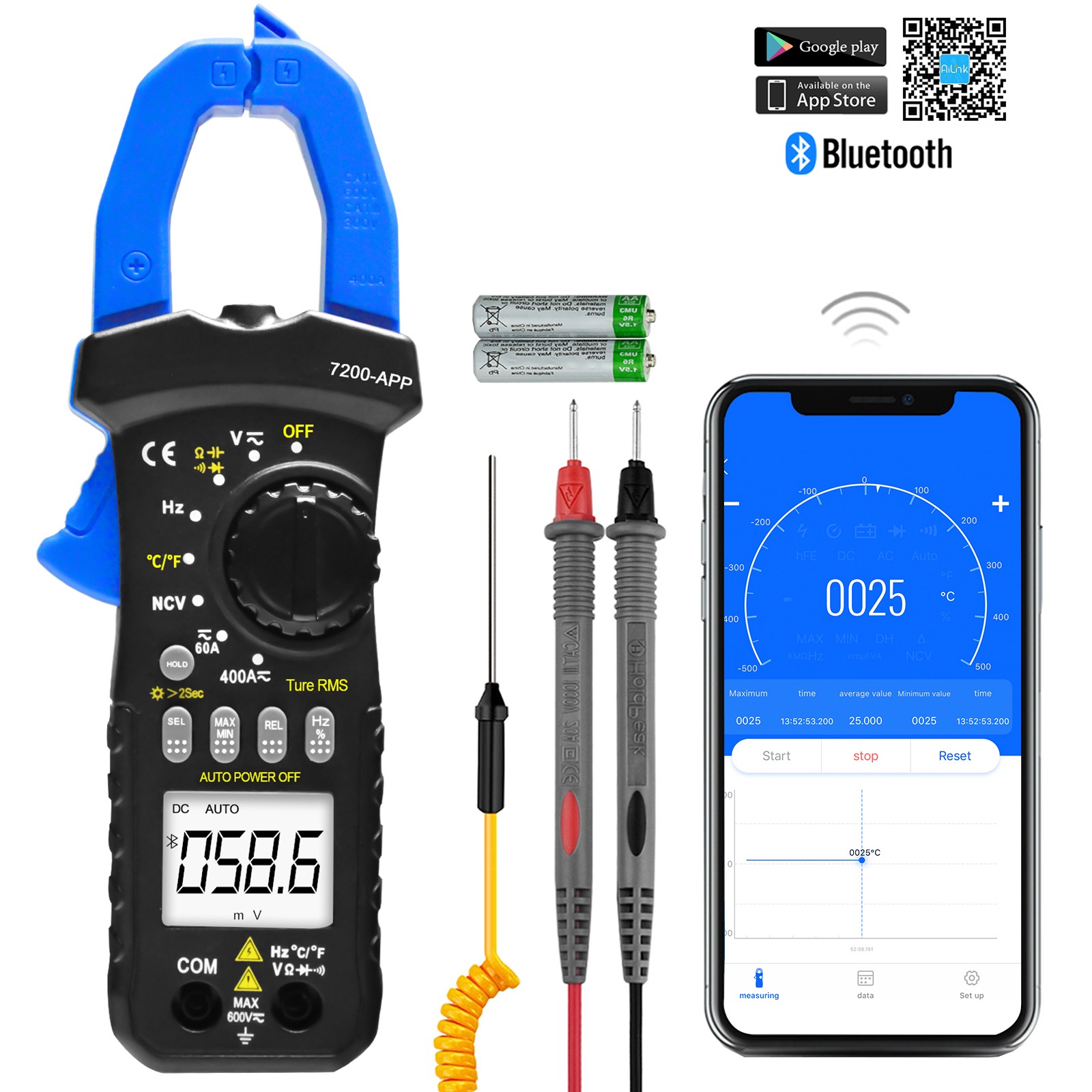

Smart Connectivity

Wireless Capabilities

Bluetooth Auto-pairing with Android and iOS
Remote data monitoring via AiLink App
Max wireless distance: 10–15m
Real-time data analysis on mobile devices
Compatible with iOS 7.0/Android 4.3 and up

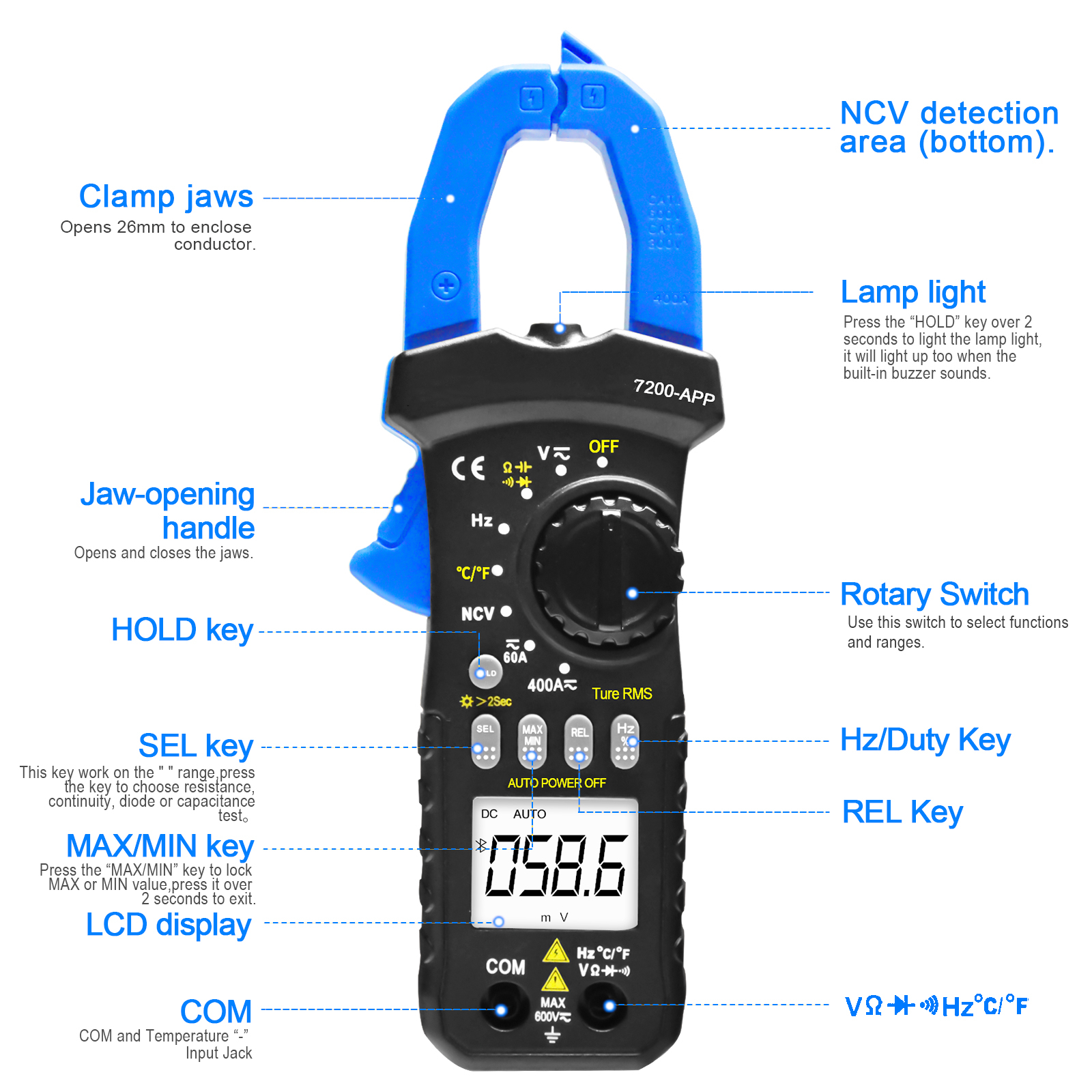

Advanced Functions

Built-in Functions: True RMSNCV DetectionData HoldMax/Min CaptureRelative MeasurementAuto Power OffDiode TestContinuity BuzzerFrequency Measurement
