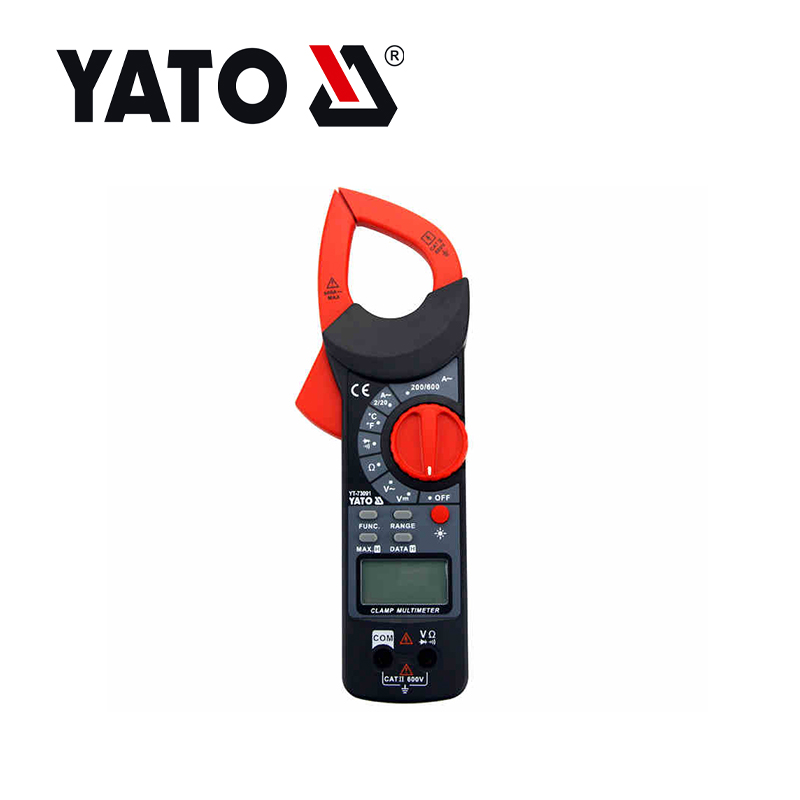

Digital Clamp Multimeter
This digital clamp multimeter measures AC current, AC/DC voltage, resistance, capacitance, frequency, and temperature. It features a clamp for non-contact current measurement and a digital display for easy readings.
Technical Specifications
Overview
Professional Digital Clamp Multimeter
This versatile digital clamp multimeter is designed for precise electrical troubleshooting and maintenance. Featuring a 3 1/2 digit LCD display with backlight and data-hold capabilities, it ensures accurate readings even in low-light conditions. The device is equipped with essential safety features, including overload protection, making it a reliable tool for general electrical measurements.
Measurement Capabilities
Key Measurement Ranges
600 V
Max AC Voltage
600 A
Max AC Current
1,000 °C
Max Temperature
Measurement Specifications
| Function | Range |
|---|---|
| Voltage DC | 200mV - 600V |
| Voltage AC | 2V - 600V |
| Current AC | 2A - 600A |
| Resistance | 200Ω - 20MΩ |
| Temperature | -20°C to +1000°C |
Technical Specifications
Display & Interface
- 3 1/2 Digits LCD
- 1999 Counts
- Display Backlight
- Data-Hold Function
- Low Battery Indication
Physical Characteristics
- Dimensions: 77 x 230 x 32 mm
- Weight: 220g (with battery)
- Power: 2 x 1.5V AAA Batteries
Safety & Compliance
- Safety Features
- Overload ProtectionAutomatic ZeroingCAT II 600V RatedContinuity Test (<50Ω)Diode Check (~1.5V)
