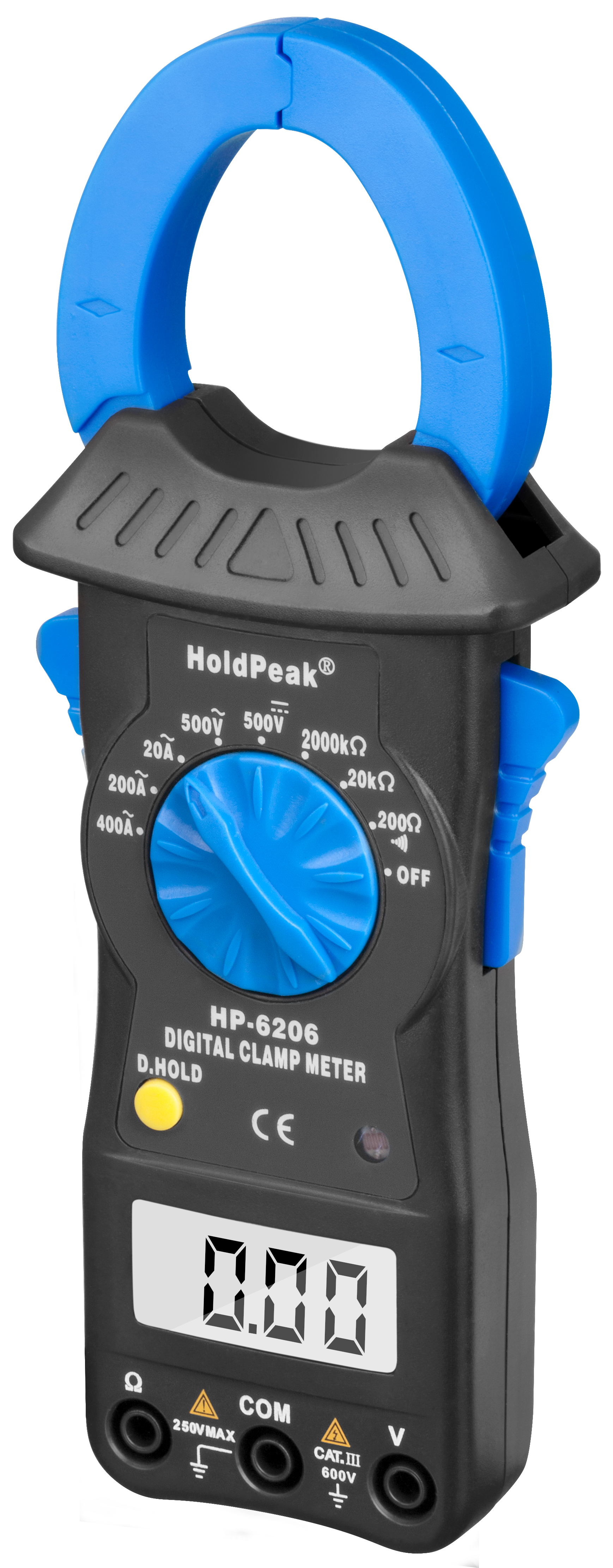

Digital Clamp Meter 500V 400A

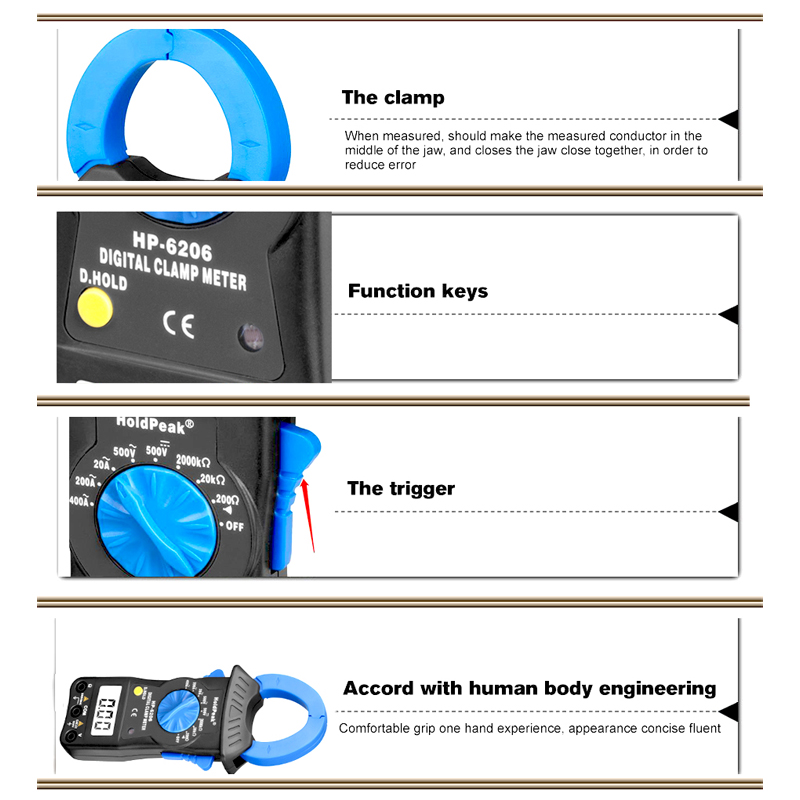

This digital clamp meter measures up to 500V and 400A. It is designed with double open jaw, portable and stable performance.
Technical Specifications
Product Overview
Professional Digital Clamp Multimeter

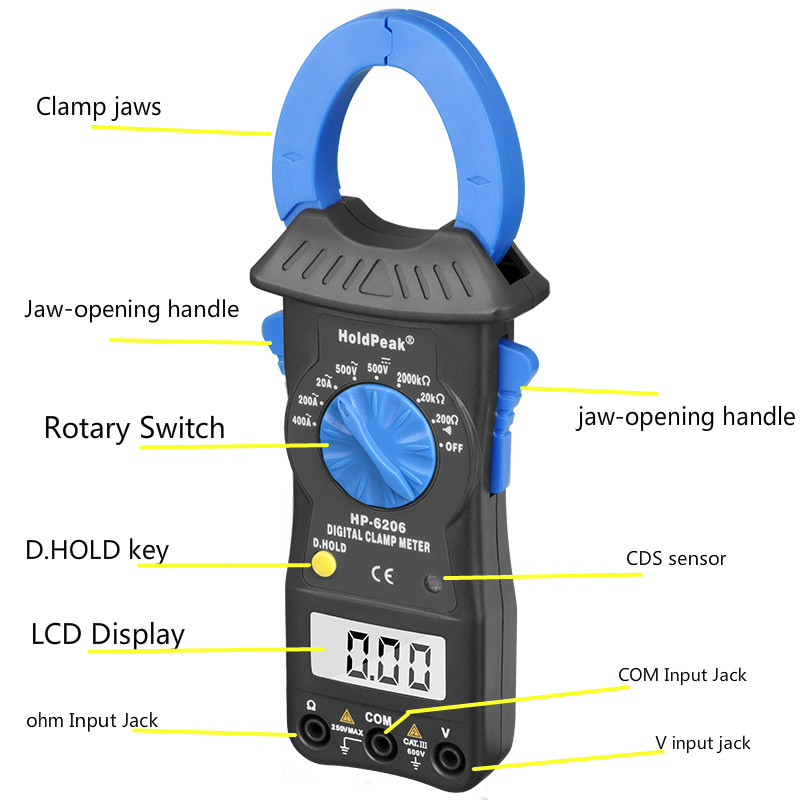

The HP-6206 is a versatile, portable digital clamp meter designed for high-voltage electrical troubleshooting and maintenance. Featuring a double open jaw design and auto-ranging capabilities, it provides stable performance for measuring AC/DC voltage, current, resistance, and frequency. This instrument is engineered for durability with anti-dropping capacity and full-range overload protection, making it ideal for industrial applications in manufacturing, communications, and power utilities.
Key Performance Metrics
Featured Metrics
500 V
Max Voltage
400 A
Max Current
34 mm
Jaw Caliber
6,000 digit
LCD Counts
Measurement Ranges
Measurement Capabilities
| Function | Range |
|---|---|
| AC Current | 20A / 200A / 400A |
| AC/DC Voltage | Up to 500V |
| Resistance | 200Ω / 20kΩ / 2000kΩ |
| Display Max | 1999 Counts |
Technical Features
Device Features
- Auto Range & Manual Operating Models
- Auto Power Off
- Data Hold Function
- Automatic Backlight
- Continuity Buzzer
- Diode Test (Positive Voltage Fall)
- Overload Protection Circuitry

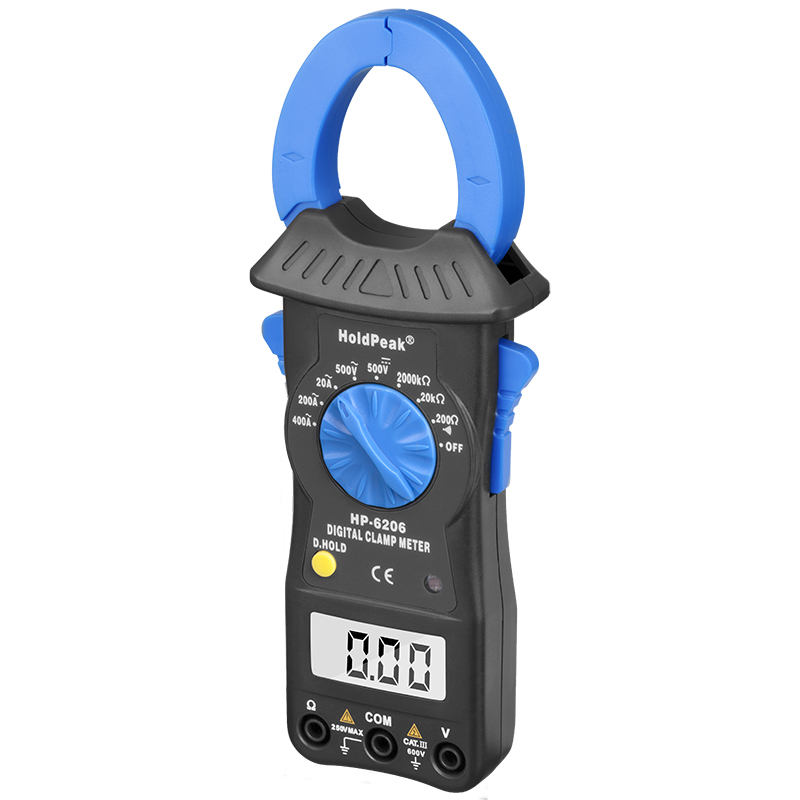

Safety & Standards
Safety Compliance
CAT III 600VCE Certified250V Max Input Protection
Physical Specifications
- Dimensions
- 193 x 73 x 26 mm
- Weight
- 255 g
Power Supply
- Battery Requirements
- 1.5V (AAA) x 1
Applications
- Target Industries
- SmeltingCommunicationsManufacturingPetroleum RefiningNational DefenseChemical Industry
