Digital Clamp Meter Multimeter

This digital clamp meter is designed for measuring AC/DC current and voltage, resistance, capacitance, and frequency. It features a 45mm jaw and offers data hold, max/min value recording, and relative measurement capabilities.

Request a Quote Download PDFPDF

digital clamp meter, digital multimeter clamp meter HP-870N - Image 1

Technical Specifications

Product Overview

Professional Digital Clamp Multimeter

The HP-870N is a versatile AC/DC digital clamp meter designed for high-capacity electrical testing. It features True RMS measurement for accuracy in non-sinusoidal waveforms and a large 45mm jaw diameter for inducing currents up to 1000A. With integrated functions for voltage, resistance, capacitance, and frequency, it provides a comprehensive solution for industrial and DIY electrical troubleshooting.

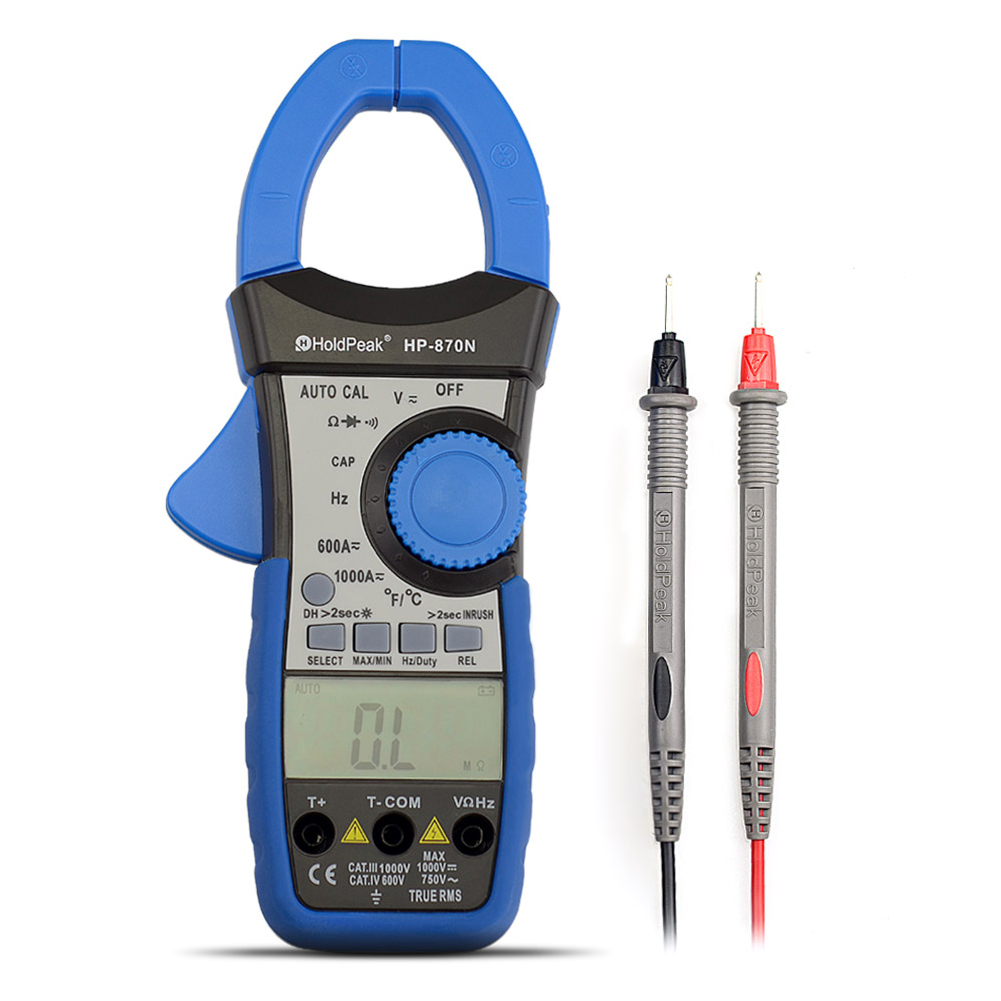

Digital Clamp Meter Interface — Front view showing the large LCD display, selection dial, and function buttons including True RMS and Inrush current measurement.

Key Performance Metrics

1,000 A

Max Current

1,000 V

Max DC Voltage

45 mm

Jaw Opening

6,000

Display Counts

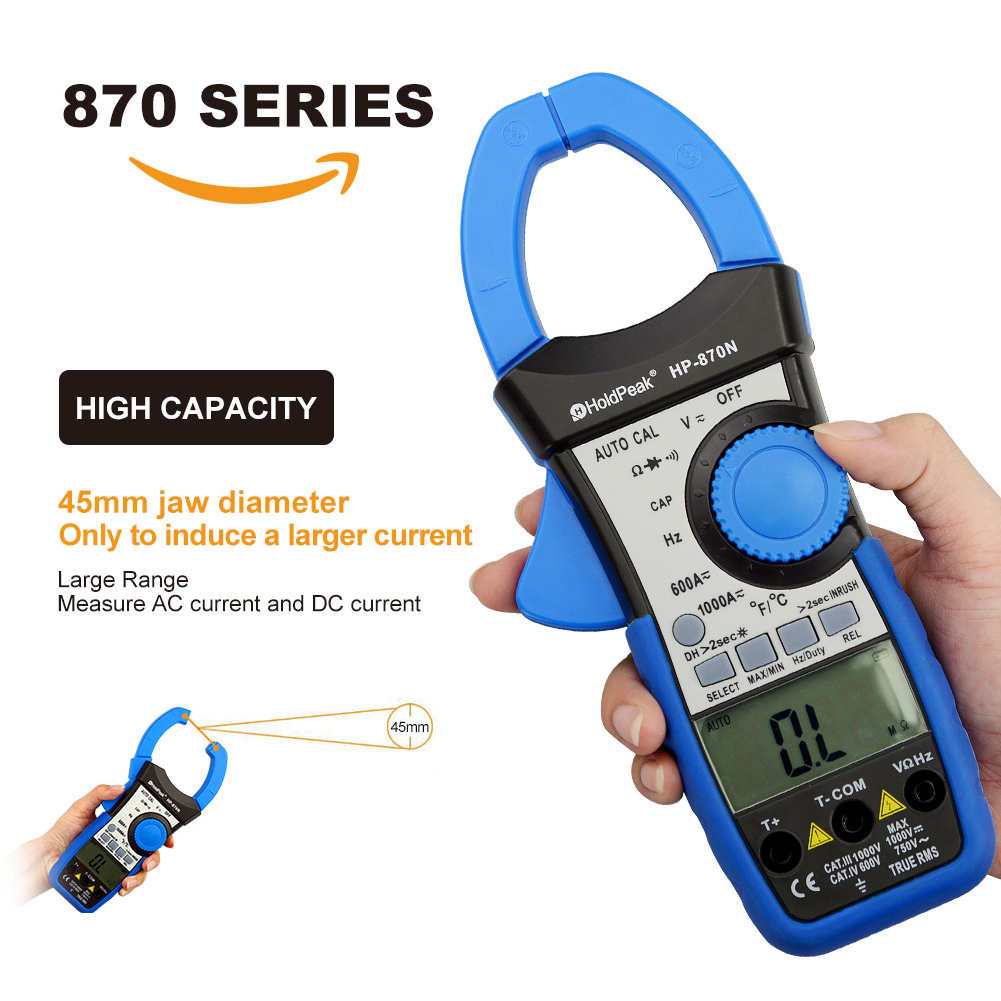

45mm Jaw Diameter Detail — The 45mm jaw caliber is designed to induce larger currents safely and efficiently.

Measurement Ranges

Voltage Range: 600mV / 6V / 60V / 600V / 750V / 1000V
Current Range: 200A / 1000A (AC/DC)
Resistance Range: 600Ω to 60MΩ
Capacitance Range: 9.999nF to 99.99mF
Frequency Range: 9.999Hz to 9.999MHz

Advanced Features

Functional Capabilities: True RMSAuto RangingData HoldInrush Current TestRelative ValueDiode TestBacklightAuto Calibration

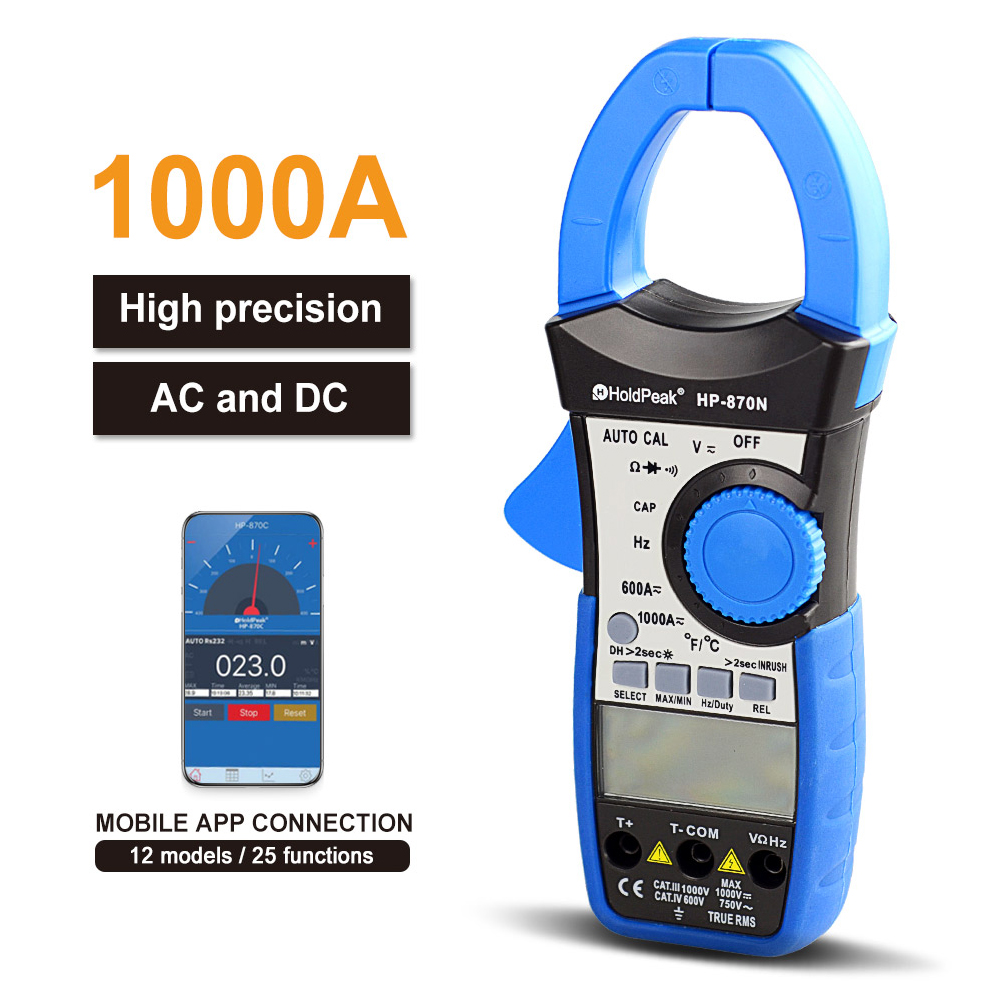

Data Connectivity: Yes
