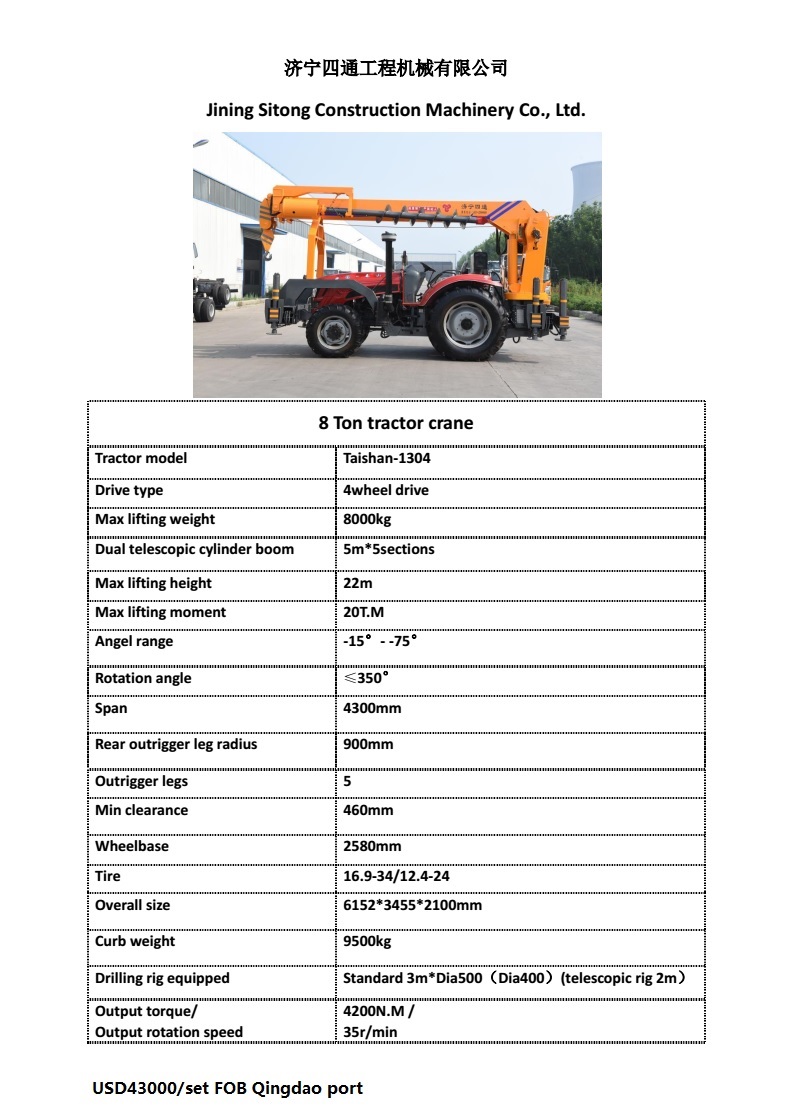

8-Ton Rough Terrain Crane with Auger Attachment
This 8-ton crane is designed for rough terrain and agricultural construction. It features a crane arm and auger attachment for versatile lifting and drilling operations.
Technical Specifications
Overview
8-Ton Rough Terrain Crane
This high-performance 8-ton rough terrain crane is engineered for versatility and efficiency in challenging agricultural and construction environments. It features a robust 4-wheel drive tractor base that ensures superior maneuverability on uneven ground, combined with a powerful auger attachment for precise drilling operations. With an optimized hydraulic system that reduces oil consumption, this crane offers both high operational stability and long-term cost-saving benefits.
Core Specifications
Key Performance Metrics
8 t
Max Lifting Capacity
22 m
Max Lifting Height
20 T.M
Max Lifting Moment
Operational Details
| Feature | Value |
|---|---|
| Rotation Angle | <350° |
| Boom Type | Dual telescopic cylinder (5 sections) |
| Angle Range | -15° to -75° |
| Outrigger Legs | 5 |
| Drilling Torque | 4200 N.M |
Certifications
- Compliance & Certifications
- GSSGSCEISO9001
Physical Dimensions
Machine Dimensions
- Overall Size: 6152 x 3455 x 2100 mm
- Wheelbase: 2580 mm
- Minimum Clearance: 460 mm
- Curb Weight: 9500 kg
