75-Ton Hydraulic Crawler Crane
The hydraulic crawler crane has a maximum lifting capacity of 75 tons and is designed for heavy-duty construction. Its crawler tracks provide excellent ground contact, ensuring stability and maneuverability on soft or uneven surfaces.

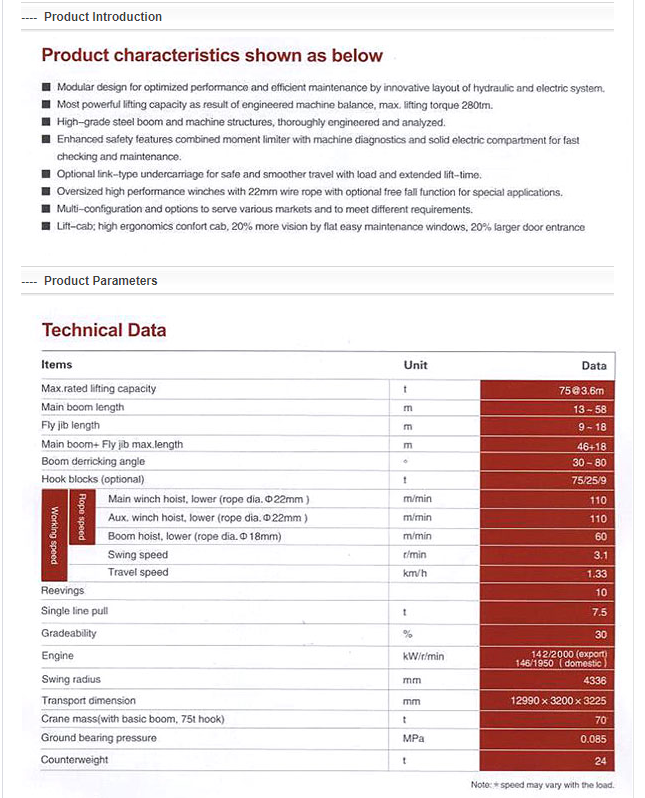

Technical Specifications
Overview
High-Performance Hydraulic Crawler Crane
This 75-ton hydraulic crawler crane is engineered for heavy-duty construction and industrial applications, offering exceptional stability and maneuverability on diverse terrains. It features a modular design for optimized performance and efficient maintenance, utilizing high-grade steel structures for durability. Advanced safety systems, including moment limiters and machine diagnostics, ensure reliable operation, while the ergonomic cab design enhances operator comfort and visibility.
Performance Metrics
Max Rated Lifting Capacity
75 t
Max Capacity
3.6 m
at Radius
- Max Lifting Torque
- 280 tm
Boom Specifications
Boom Configuration
| Component | Range |
|---|---|
| Main Boom Length | 13-58 m |
| Fly Jib Length | 9-18 m |
| Max Combined Length | 46 + 18 m |
- Boom Derricking Angle
- 30-80 degrees
Operational Speed
Winch Rope Speeds
- Main winch hoist: 110 m/min (22mm rope)
- Auxiliary winch hoist: 110 m/min (22mm rope)
- Boom hoist: 60 m/min (18mm rope)
Swing and Travel Speed
3.1 r/min
Swing Speed
1.33 km/h
Travel Speed
Technical Details
Physical Specifications
| Metric | Value |
|---|---|
| Crane Mass | 70 t |
| Counterweight | 24 t |
| Ground Bearing Pressure | 0.085 MPa |
| Transport Dimensions | 12990 x 3200 x 3225 mm |
- Engine Output
- 142 kW/2000 r/min (Export)146 kW/1950 r/min (Domestic)
Features
Safety & Operational Features
Moment LimiterMachine DiagnosticsOverload ProtectionEmergency StopOptional Free Fall Function
