60t Hydraulic Crawler Crane
This hydraulic crawler crane has a maximum lifting capacity of 60t. It features a robust crawler undercarriage for stability and maneuverability on uneven terrain.
Technical Specifications
Overview
High-Performance Hydraulic Crawler Crane
This hydraulic crawler crane is engineered for heavy-duty lifting operations across diverse industrial and construction environments. It features a robust, smart-engineered box-type upper structure that ensures a low center of gravity and exceptional stability. With efficient hydraulic systems allowing for simultaneous operation at low engine RPM and a modular design, this machine offers both reliability and ease of maintenance for demanding job sites.
Performance Metrics
Key Performance Metrics
60 t
Max Lifting Capacity
38 m
Max Boom Length
40 %
Gradeability

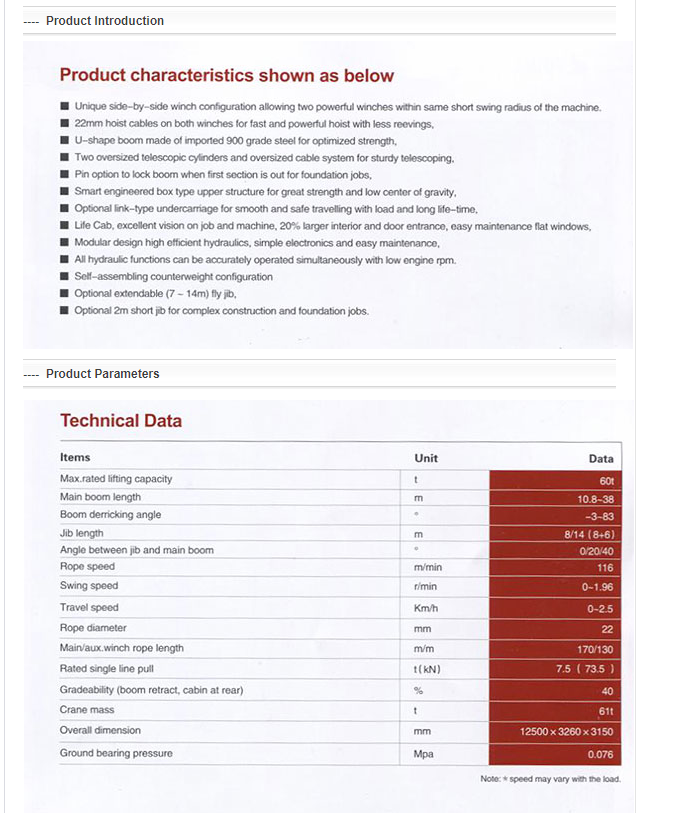

Technical Specifications
Detailed Technical Data
| Specification | Value |
|---|---|
| Main Boom Length | 10.8-38 m |
| Boom Derricking Angle | -3-83 degrees |
| Jib Lengths | 8/14 m |
| Rope Speed | 116 m/min |
| Swing Speed | 0-1.96 r/min |
| Travel Speed | 0-2.5 Km/h |
| Ground Bearing Pressure | 0.076 Mpa |
Winch System
- Main/Aux. Winch Rope Length: 170/130 m
- Rope Diameter: 22 mm
- Rated Single Line Pull: 7.5 t (73.5 kN)
Design Features
Optional Equipment
Extendable fly jib (7-14m)2m short jibLink-type undercarriage
- Construction Highlights
- U-shape 900 grade steel boomSide-by-side winch configurationSelf-assembling counterweightModular designBox type upper structure
Dimensions & Weight
- Physical Dimensions
- 12500 x 3260 x 3150 mm
- Total Crane Mass
- 61 t
