11-Ton Telescopic Crane Loader Forklift
This 11-ton telescopic crane loader forklift combines the functionalities of a crane, loader, and forklift. Its telescopic boom allows for extended reach and precise placement of materials.
Technical Specifications
Overview
Versatile 11-Ton Telescopic Crane Loader

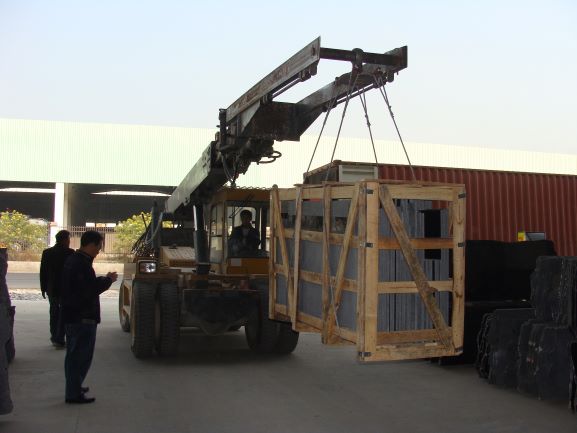

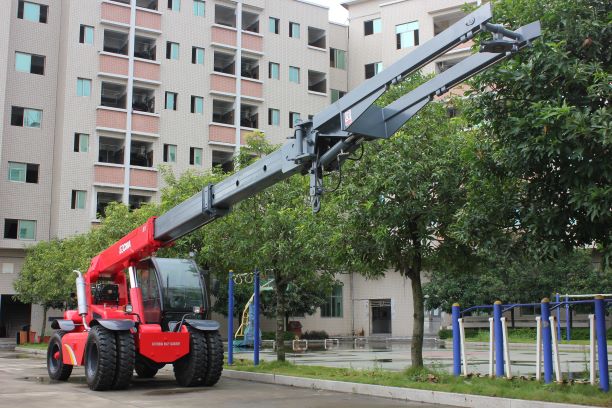

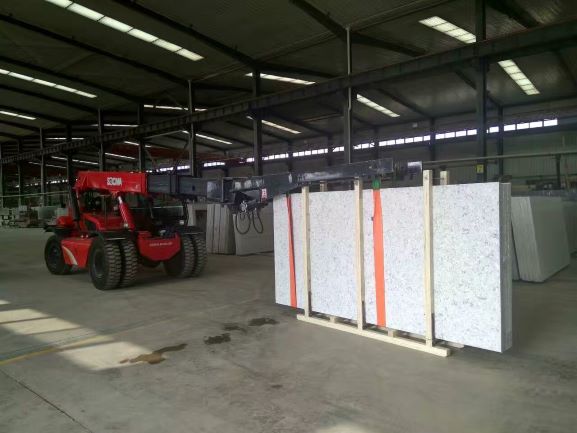

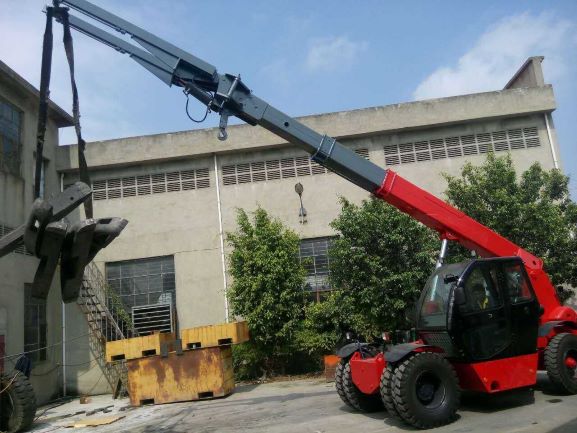

The HNT-110 is a high-efficiency loading and unloading machine that combines the capabilities of a crane, loader, and forklift into a single robust chassis. Featuring a three-stage quadrilateral telescopic boom and a quick-change device, it is designed for wide adaptability in factories, docks, and construction sites. This machine excels at specialized tasks like lifting stone slabs from containers while remaining versatile enough for general crane and material handling operations.
Performance Metrics
Key Performance Metrics
11,000 kg
Rated Load
10,300 mm
Max Lifting Height
13,000 kg
Operating Weight
Chassis & Drivetrain
Drive System
- Front-wheel drive with rear-wheel steering
- Hydro-mechanical transmission
- Two-speed forward and two-speed reverse
- Full hydraulic power steering
- Electronic off-axle function for 2WD/4WD switching
- Rigid suspension system
Technical Specifications
Operational Parameters
| Item | Parameter | Remark |
|---|---|---|
| Rated Load | ≤11000 kg | Maximum capacity |
| Operating Weight | 13000 kg | Standard configuration |
| Main Hook Max Height | 7605 mm | From hook to ground |
| Full Extended Boom Height | 10300 mm | Maximum vertical reach |
Hydraulics & Braking
Hydraulics & Braking
- Dual-pump combined hydraulic system for reduced energy consumption
- Air-over-oil type drum brakes
- Electronic handbrake for improved sensitivity
- Coaxial flow amplification steering system
Operator Comfort & Safety
- Operator Environment
- Wide View CabinAir ConditioningJoystick ControlAdjustable Air SeatRadioLow Noise SealingMaintenance-Free Battery
Applications
Target Industries
LogisticsConstructionFreight YardsDocks & PortsForestryStone HandlingUtility Installation
Attachments
Available Attachments
- Standard Forks
- Loading Bucket
- Extension Forks (Optional)

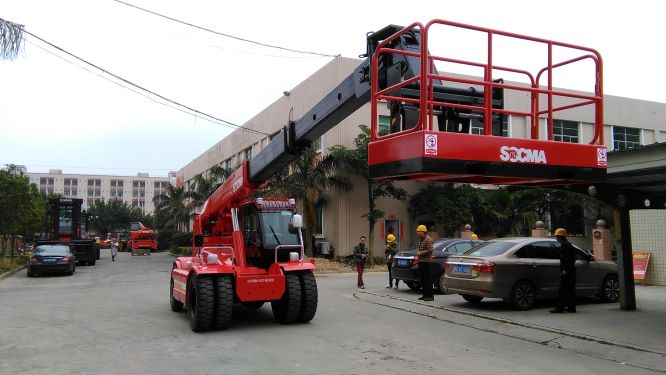

- Aerial Work Platform (Optional)
- Quick Hitch System
- Side Shifter
