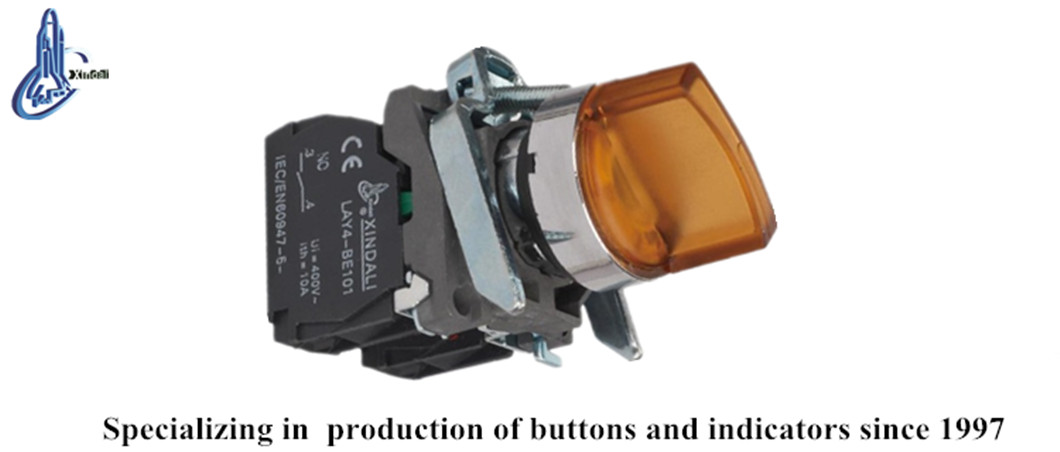

Yellow LED Push Button Switch Indicator
This yellow LED push button switch indicates elevator or switch positions. It is designed for industrial environments and complies with IEC/EN60947-5 standards.
Technical Specifications
Product Overview
Industrial Switch Indicator
This yellow LED push button switch indicator is designed for high-performance control circuits in industrial environments, including elevator systems and control panels. Engineered with a durable zinc alloy and high-grade anti-flam plastic construction, it ensures reliability and safety. The unit features silver alloy contacts for superior anti-electrical erosion resistance and is fully compliant with IEC/EN60947-5 standards.
Electrical Ratings
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Voltage Wave
- 20 %
- Withstand Voltage
- AC 2.5KV/min
Performance Metrics
Operating Metrics
50 MΩ
Insulation Resistance
60 cd/m2
Brightness
100,000 cycles
Pushbutton Mechanical Life
- Electrical Life
- 500,000 cycles (pushbutton)
Physical Specifications

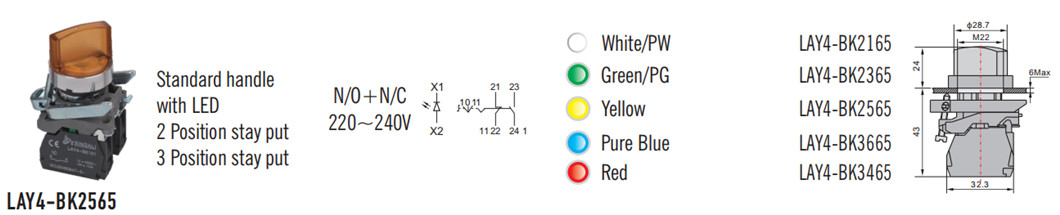

Dimensions
| Feature | Value |
|---|---|
| Mounting Size | M22 |
| Base Width | 32.3 mm |
| Overall Height | 43 mm |
| Max Panel Thickness | 6 mm |
Compliance & Standards
- Certifications
- CEISO 9001ROHSULIEC 60947-5-1
