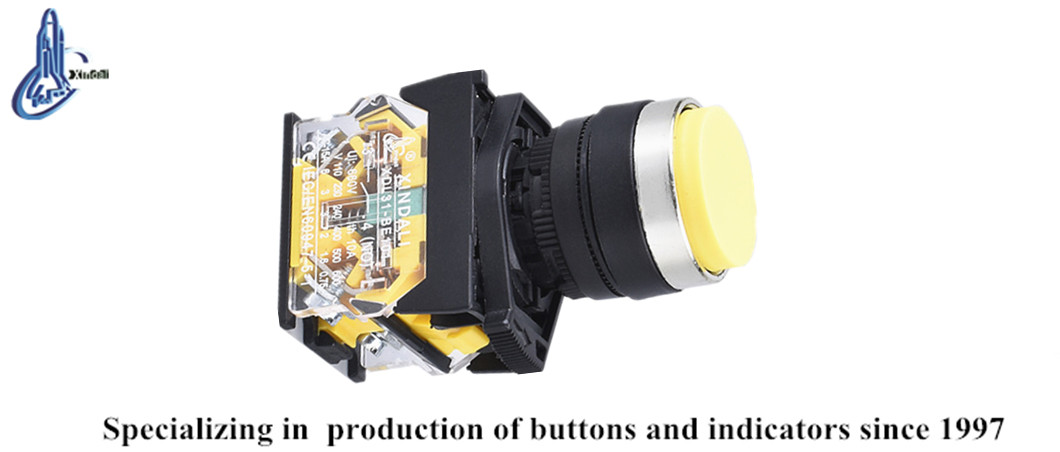

Yellow Convex Push Button IP65 Waterproof Switch
This yellow convex push button switch is IP65 rated, providing waterproof protection. It is designed for electrical applications needing protection from dust and water.
Technical Specifications
Product Overview
Robust Industrial Switching
This IP65-rated yellow convex push button switch is engineered for demanding industrial and commercial control environments. Featuring a durable zinc alloy and high-grade anti-flam plastic construction, it provides reliable switching for AC circuits up to 660V. Its specialized silver alloy contacts ensure high resistance to electrical erosion, while the IP65 rating guarantees superior protection against dust and water ingress.
Technical Specifications
Rated Insulation Voltage
600 V
Rated Insulation Voltage
6 kV
Impulse Withstanding Voltage
- Contact Configuration
- N/O + N/C
- Mechanical Life
- 3000000 cycles
Environmental Ratings
Protection Grade
IP65IP66IP67IP68
- Operating Temperature Range
- -5°C to +55°C

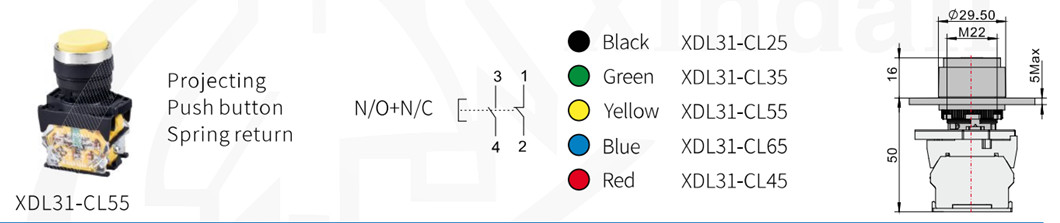

Mechanical Dimensions
Dimensions
| Dimension | Value |
|---|---|
| Mounting Diameter | 22mm |
| Button Diameter | 29.50mm |
| Total Height | 50mm |
| Max Panel Thickness | 5mm |
Compliance
- Certifications
- CEISO 9001RoHSUL
