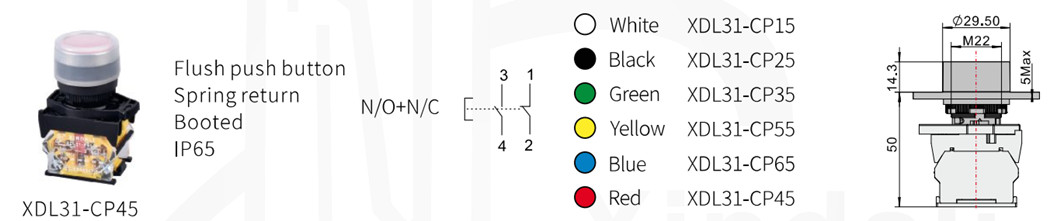

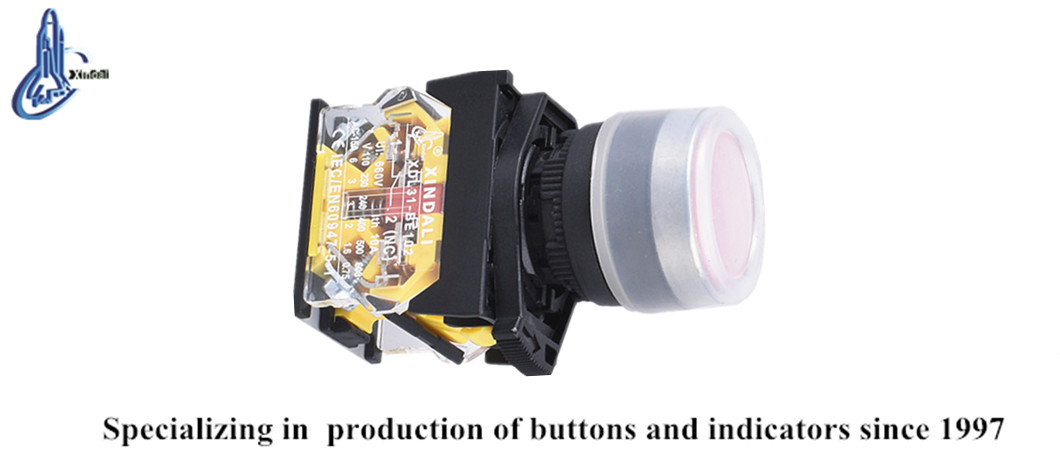

Waterproof Push Button Switch with Rubber Cap
This waterproof push button switch is designed with a rubber cap and an IP65 rating for use in harsh environments. It can be used in control panels and as an emergency stop button.
Technical Specifications
Overview
Industrial Waterproof Push Button Switch
This series of push button switches is engineered for reliable control in demanding industrial environments, featuring a robust IP65 waterproof rating. The main body is constructed from a combination of zinc alloy and high-grade anti-flam plastic, ensuring longevity and safety. With silver alloy contacts designed for high anti-electrical erosion resistance, these switches are ideal for signal, warning, and emergency circuit control.
Technical Specifications
Rated Insulation Voltage (Ui)
600 V
Rated Insulation Voltage
6 kV
Withstanding Impulse Voltage
Environmental Ratings
- Operating Temperature: -5°C to +55°C
- Storage Temperature: -25°C to +70°C
- Relative Humidity: 35-85% RH
- Pollution Grade: 3
- Compliance & Protection
- IP65IEC60947-5-1GB/T14048.1CEISO 9001RoHSUL
Mechanical Data
Mechanical Lifespan
| Button Type | Operations |
|---|---|
| Standard Pushbutton | 3,000,000 |
| Emergency Stop Button | 300,000 |
- Fastening Torque
- 0.8 Nm
