Waterproof Push Button Switch with Protective Cap

This waterproof push button switch is designed for on/off control in various electrical applications. It features a protective cap for enhanced durability and resistance to environmental factors.

Request a Quote Download PDFPDF

XDL21-CB9325 on off switch waterproof push button switch with protective cap - Image 1

Technical Specifications

Product Overview

Professional Industrial Switching

This double-headed waterproof push button switch provides reliable on/off control for demanding industrial environments. Built with a robust zinc alloy body and high-grade anti-flame plastic, it is designed for durability and longevity. With an IP65 protection rating and a secure protective cap, it ensures safe operation in distribution cabinets and control systems.

Technical Specifications

Ingress Protection

IP65

Rated Insulation Voltage: 660 V
Conventional Heating Current: 10 A
Mechanical Life (Pushbutton): 1000000 ops
Operating Temperature: -5°C to +55°C

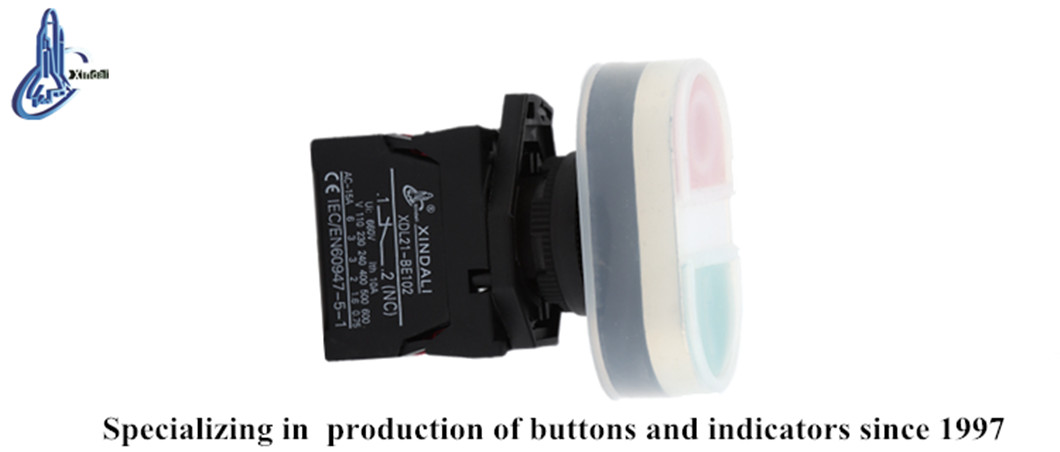

Technical electrical data for industrial push button

Certifications & Standards

Certifications: CERoHSIEC60947-5-1

Electrical Performance

Contact Resistance: ≤25mΩ
Insulation Resistance: ≥50MΩ

Mounting Dimensions

Mounting Hole Diameter: 22 mm

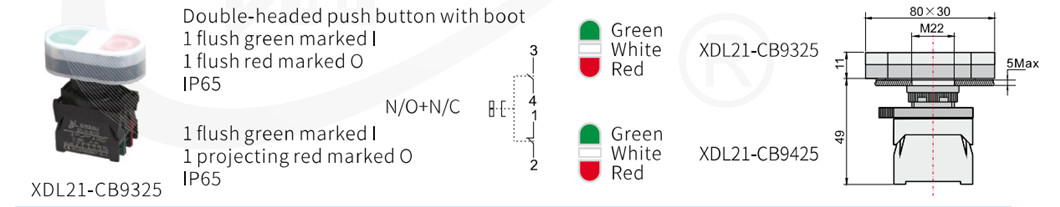

Double-headed push button with protective cap
