Waterproof Push Button LED Indicator Switch
This waterproof push button switch features an integrated LED indicator. It is designed for controlling circuits in AC voltage up to 660V and DC voltage below 400V.
Technical Specifications
Product Overview
Industrial Push Button & Indicator Series
This series of high-quality push buttons and indicator lamps is designed for demanding industrial control circuits. Engineered with a durable zinc alloy body and advanced anti-flame materials, these components provide reliable signal and interlock control in voltage environments up to 660V. With an IP65 protection rating, they are ideally suited for use in distribution cabinets, power stations, and communication networks.
Key Features
Protection Rating
IP65
- Certifications
- CEISO 9001RoHSUL
Technical Parameters
Electrical Ratings
660 V
Max Insulation Voltage
10 A
Heating Current
6 kV
Impulse Voltage
Operational Performance
| Metric | Value |
|---|---|
| Operating Temp | -5°C to +55°C |
| Storage Temp | -25°C to +70°C |
| Insulation Resistance | ≥50MΩ |
| Contact Resistance | ≤25mΩ |
| Brightness | 60cd/m² |

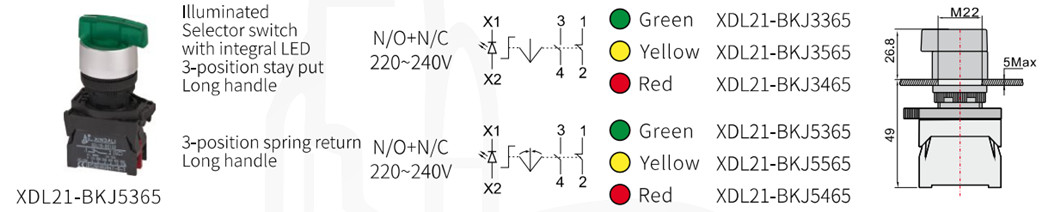

Physical Dimensions
Mounting Details
- Mounting Hole Diameter: 22mm
- Max Panel Thickness: 5mm
- Total Height: 49mm
- Height Above Panel: 26.8mm
Applications
- Common Environments
- Distribution BoxesControl CabinetsPower StationsCommunication Networks
