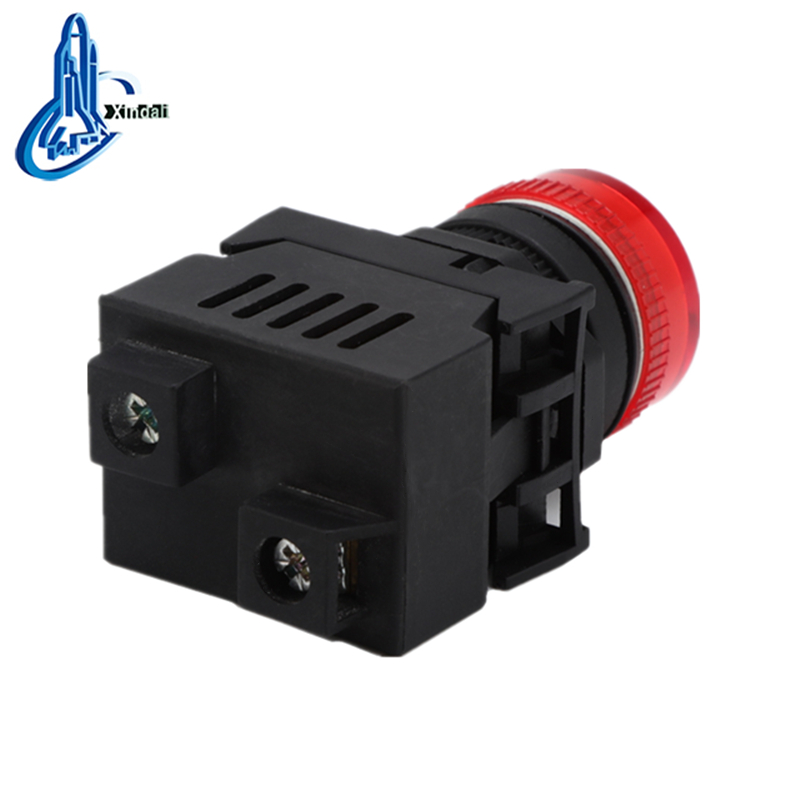

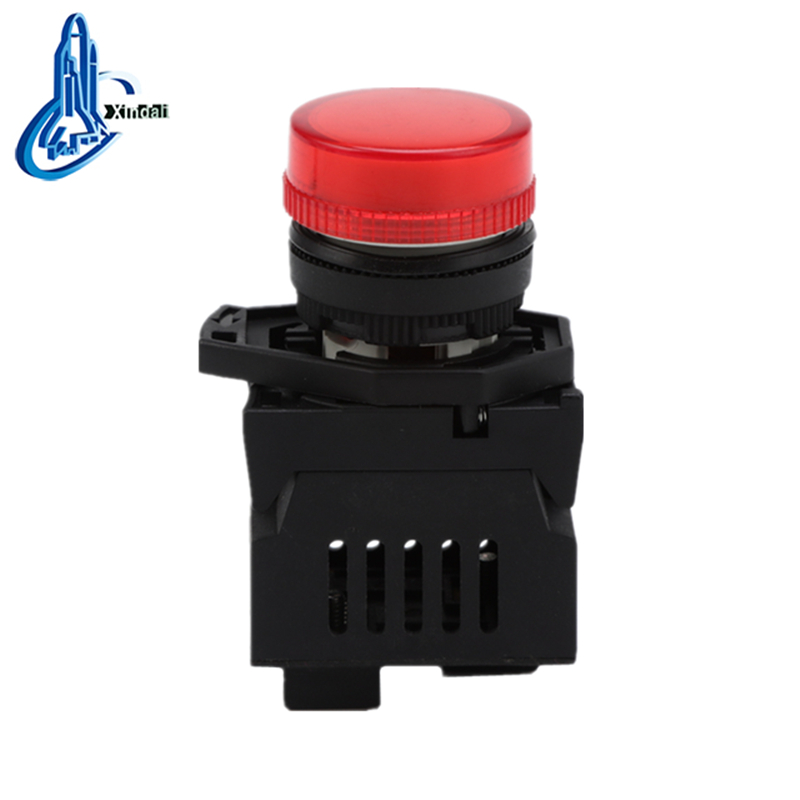

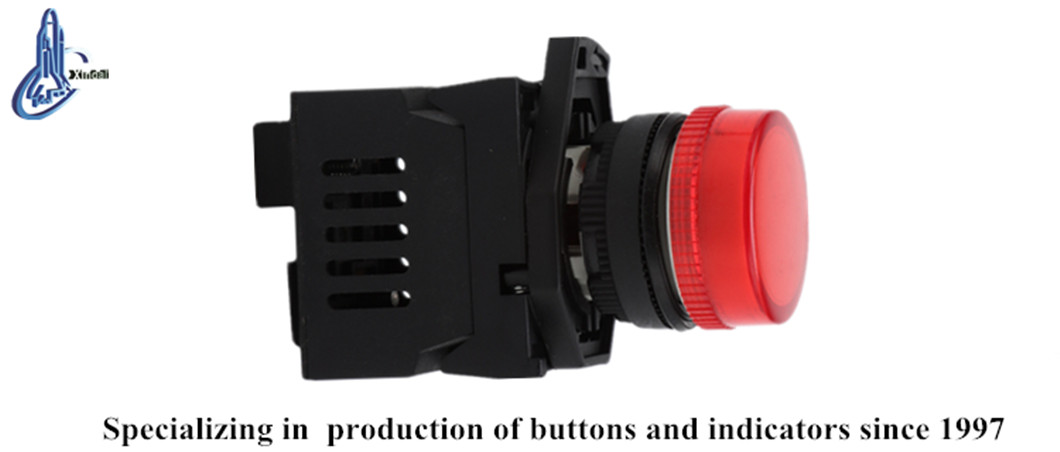

Waterproof LED Push Button Light Switch
This plastic LED push button light switch is waterproof to IP65 standards. It features an integrated LED indicator for clear visual status feedback.
Technical Specifications
Product Overview
Industrial Push Button Series
These professional-grade push button switches are designed for demanding industrial control circuits, supporting AC voltages up to 660V and DC voltages up to 400V. Engineered with a durable combination of zinc alloy and high-grade anti-flame plastic, they ensure long-term reliability even in harsh conditions. The contacts feature specialized silver alloy for superior resistance to electrical erosion, making them an ideal choice for control panels, machinery, and signaling applications.
Technical Specifications
Mechanical Life
- 1,000,000 operations (Pushbutton)
- 500,000 operations (Selector switch)
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
Environmental Performance
Ingress Protection
IP65
- Compliance & Certification
- CEISO 9001ROHSULGB/T14048.1IEC60947-5-1

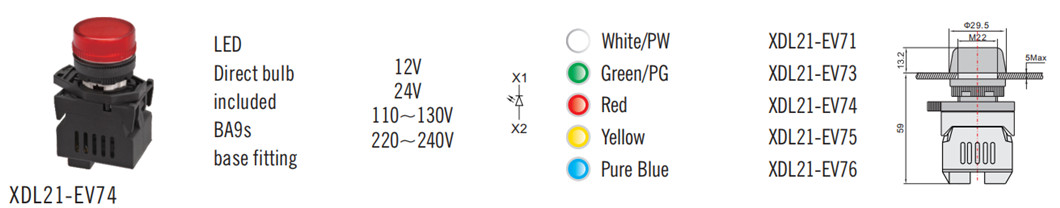

Indicator Features
Signal Lamp Metrics
60 cd/m2
Brightness
100,000 h
Working Life
2.5 kV
Withstand Voltage
