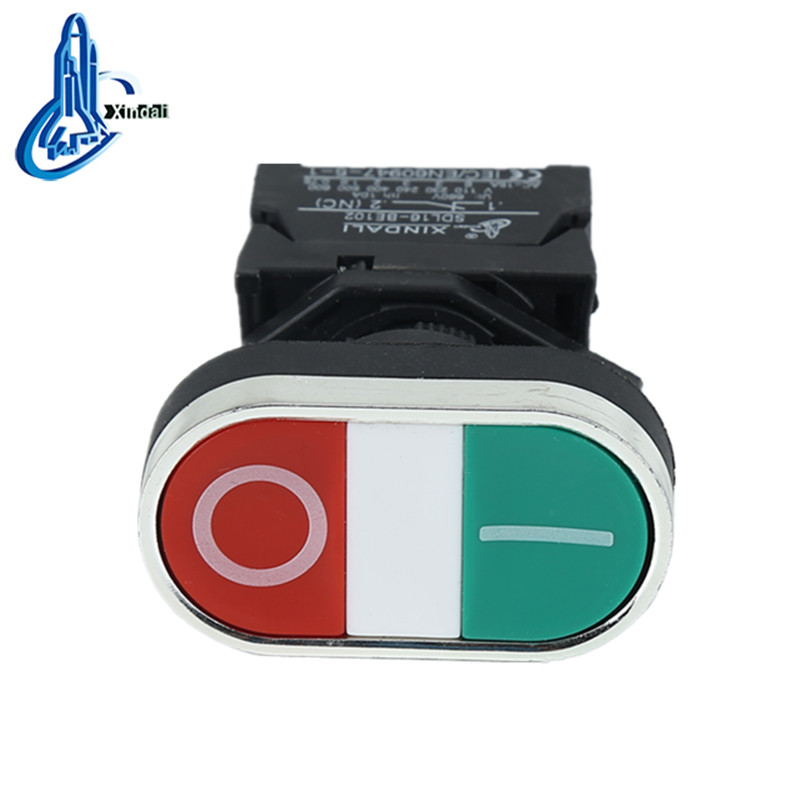

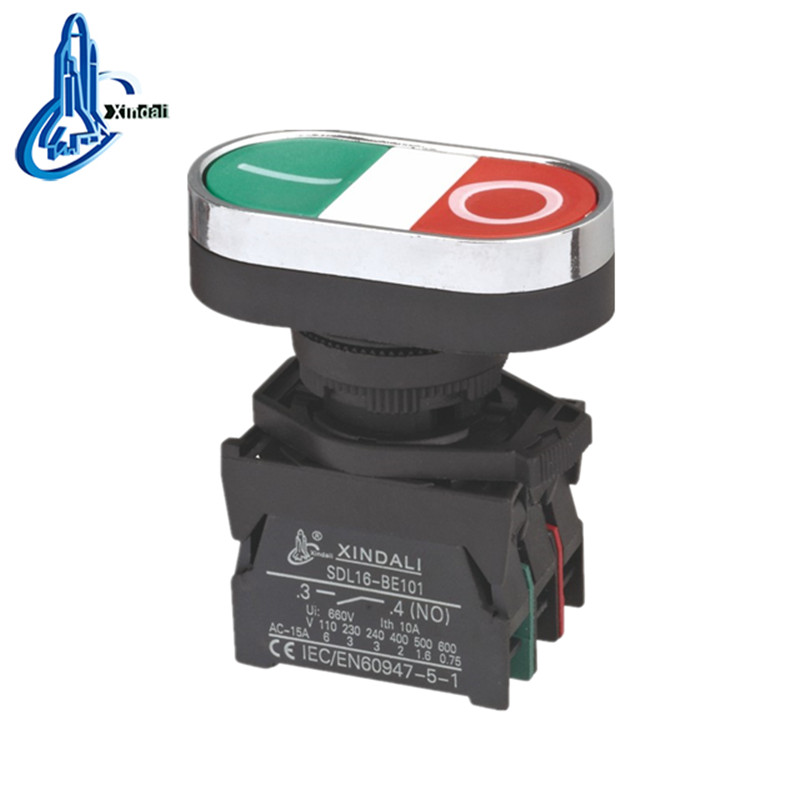

Waterproof IP65 Industrial Push Button Switch with Indicator Lamp
This industrial push button switch is designed for ON/OFF control in demanding environments. It features waterproof IP65 protection and an integrated indicator lamp for clear status indication.
Technical Specifications
Overview
Industrial-Grade Control Solution
The XDL21 series industrial push button switch features an integrated indicator lamp, providing reliable ON/OFF control and status visibility. Engineered with high-grade anti-flame plastic and zinc alloy, this switch is built for longevity and durability in demanding environments. Its IP65 waterproof rating ensures excellent protection against dust and moisture ingress, making it suitable for control panels and industrial machinery.
Technical Specifications
Electrical Ratings
600 V
Insulation Voltage (Ui)
10 A
Thermal Current (Ith)
6 kV
Impulse Withstand (Uimp)
Performance Parameters
| Metric | Value |
|---|---|
| Operating Temp | -5°C to +55°C |
| Storage Temp | -25°C to +70°C |
| Mechanical Life | 3 Million Operations |
| Protection Rating | IP65 |
Contact Features
- Special silver alloy contacts
- High anti-electrical erosion properties
- Slow breaking mechanism
- Reliable NC contact breaking
Certifications
- Certifications & Standards
- CEIEC 60947-5-1ISO 9001RoHSULGB/T 14048.1
