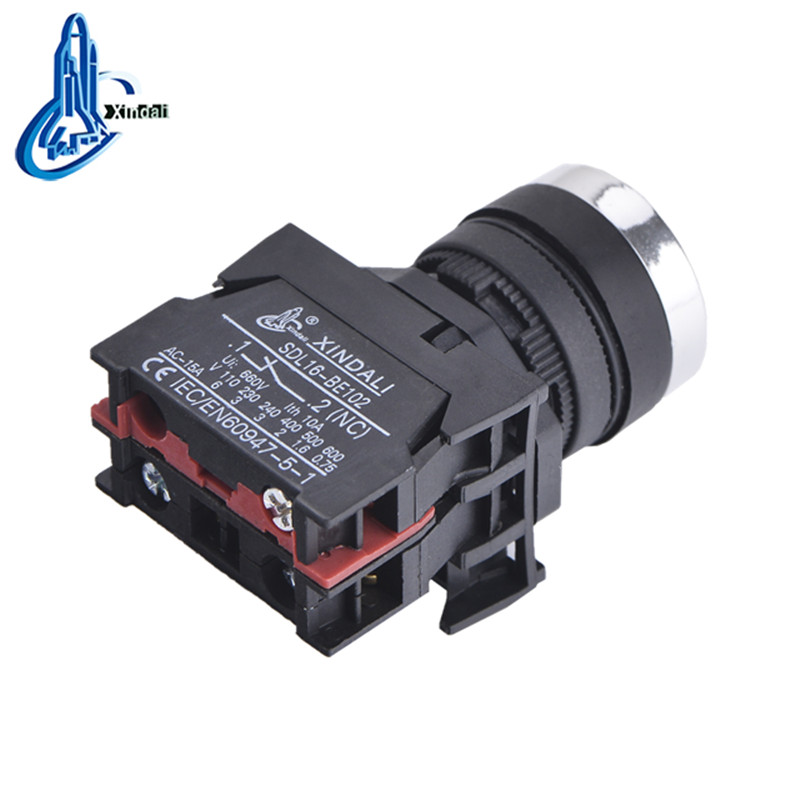

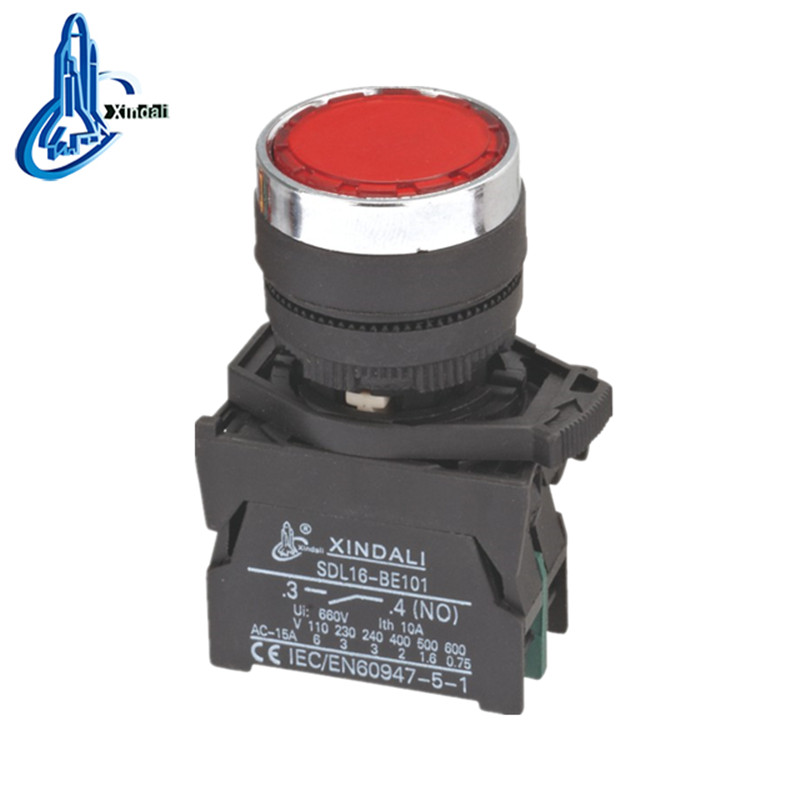

Waterproof Illuminated Push Button Switch
This waterproof push button switch features illumination for clear indication. It is designed for use in harsh environments.
Technical Specifications
Product Overview

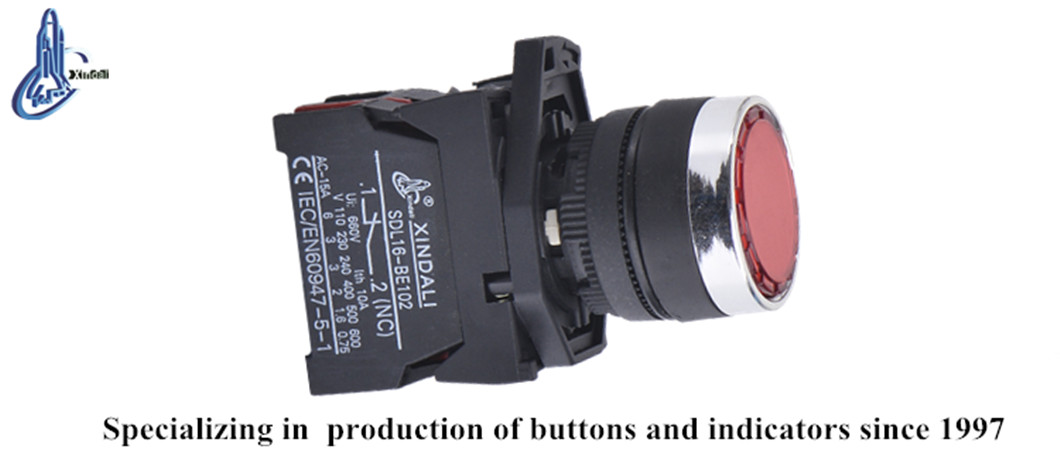

Industrial Illuminated Push Button
The XDL21 series push button switch is a high-performance control solution designed for demanding industrial environments. Featuring a robust zinc alloy and high-grade anti-flam plastic body, it provides exceptional durability and reliable signaling for control circuits up to 660V. With an IP65 protection rating, this illuminated switch ensures safety and clarity in diverse applications ranging from distribution cabinets to power stations.
Technical Specifications
Electrical Ratings
660 V
Rated Insulation Voltage
10 A
Conventional Heating Current
6 kV
Impulse Withstand Voltage
Performance Parameters
| Metric | Value |
|---|---|
| Contact Resistance | ≤25mΩ |
| Insulation Resistance | ≥50MΩ |
| Brightness | 60cd/m2 |
| Mechanical Life | 3,000,000 cycles |
| Protection Grade | IP65 |
Certifications & Compliance
- Standards & Certifications
- CEISO 9001RoHSULIEC 60947-5-1GB/T14048.1
Environment
Operating Conditions
- Operating Temperature: -5°C to +55°C
- Storage Temperature: -25°C to +70°C
