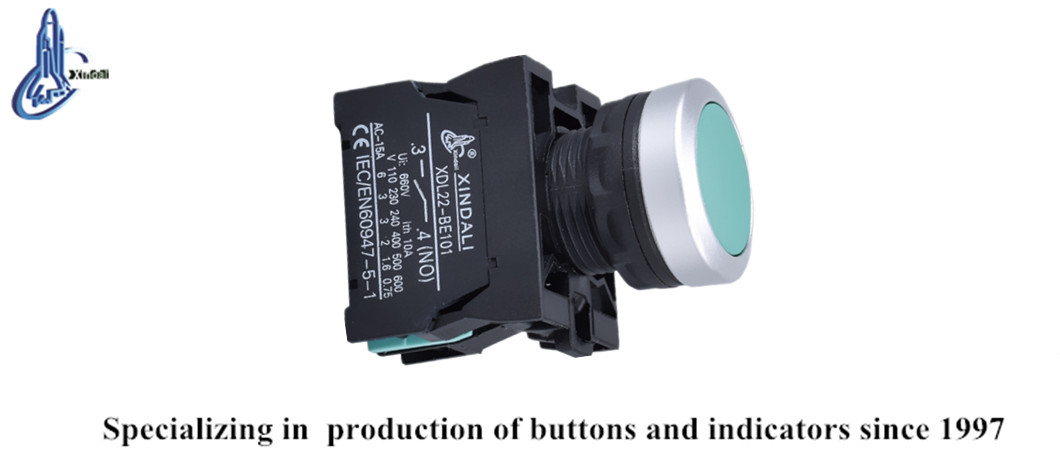

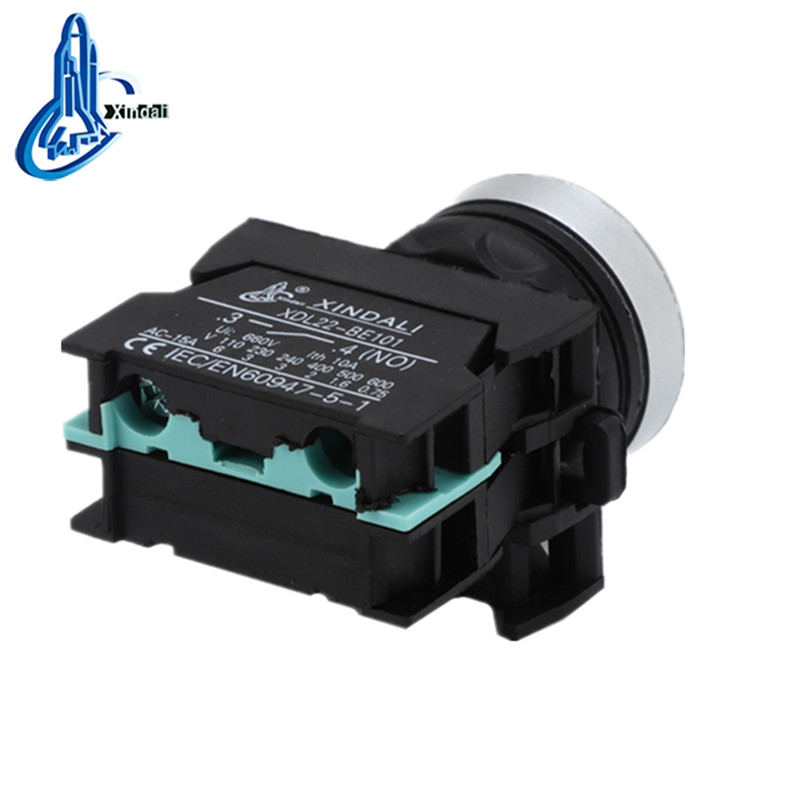

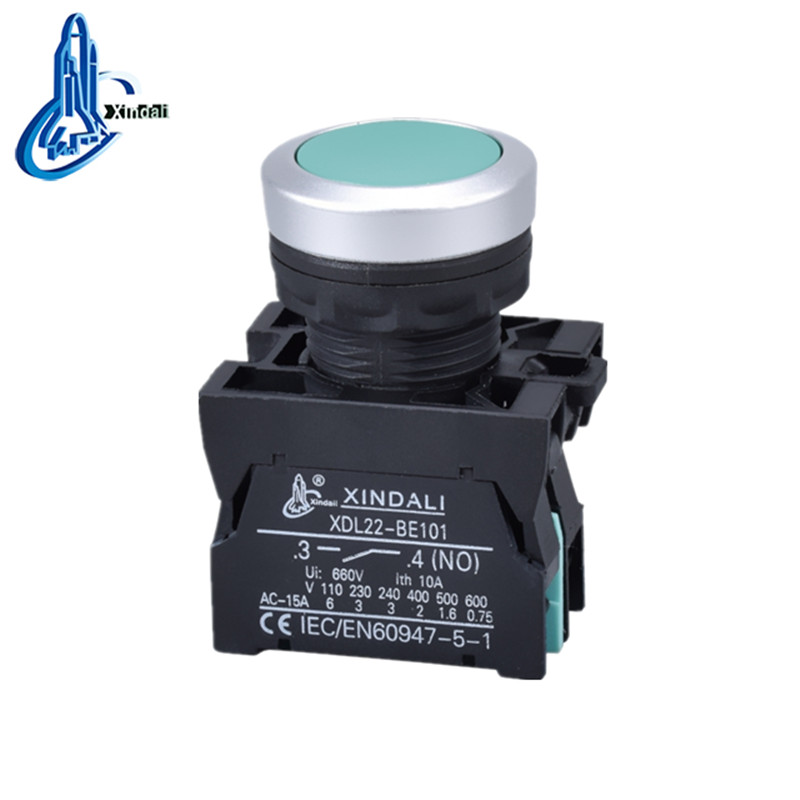

Waterproof Flush Mount Push Button Switch
This waterproof power switch features a flush push button design. It is engineered for reliable performance in demanding environments where protection against moisture and dust is essential.
Technical Specifications
Product Overview
Industrial Flush Mount Push Button
This series of flush-mount push buttons is designed for robust control of circuits up to 660V AC or 400V DC. Engineered with high-grade anti-flam plastic and zinc alloy, it features silver alloy contacts to ensure superior resistance to electrical erosion. The unit is built to international standards, providing reliable operation in demanding industrial environments.
Technical Standards
Standards Conformance
- IEC 60947-5-1
- GB/T 14048.1
- GB 14048.5
- IEC 68-2-6 (Vibration)
- IEC 68-2-27 (Impact)
- Certifications
- CEISO 9001RoHSUL
Electrical Ratings
- Rated Voltage (AC)
- 660 V
- Rated Voltage (DC)
- 400 V
- Rated Thermal Current
- 10 A
Environmental Specifications
Protection Rating
IP40IP54IP65IP66IP67IP68
- Operating Temperature Range
- -5°C to +55°C
- Relative Humidity
- 35% to 85% RH
Mechanical Specifications
Fastening Torque
0.8 Nm
Recommended
1.2 Nm
Maximum
Mechanical Durability
| Type | Operations |
|---|---|
| Pushbutton | 300,000 |
| Emergency Button | 30,000 |

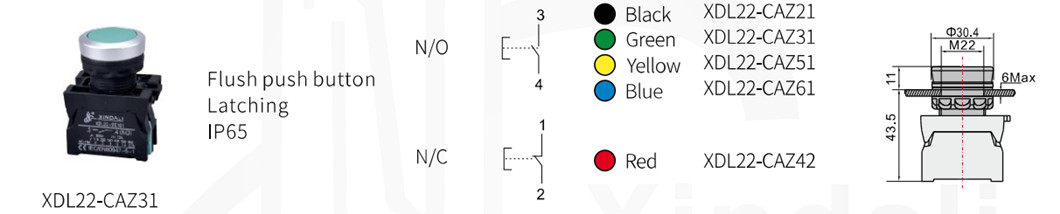

- Mounting Hole Diameter
- 22 mm
