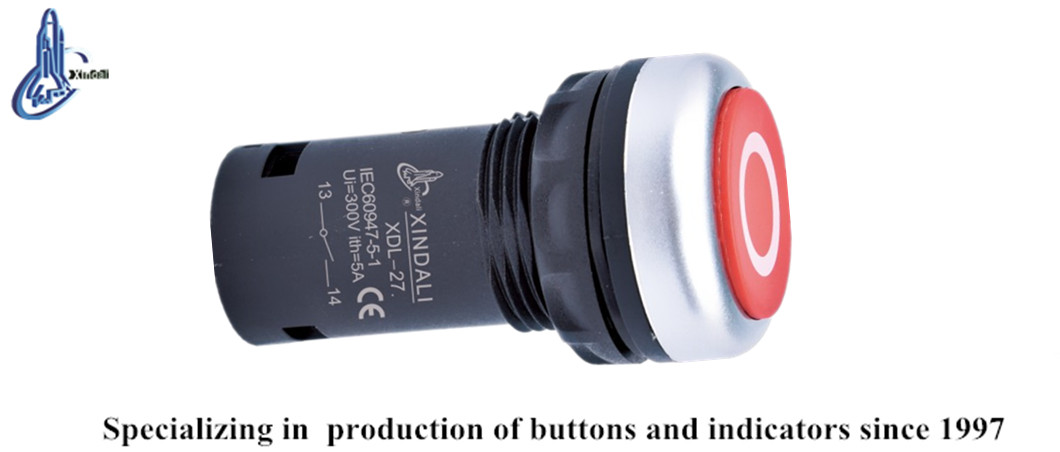

Waterproof Flush Mount Push Button Switch
This waterproof push button switch is designed with a flush spring return mechanism. With an IP65 rating, it provides protection against dust and water ingress.
Technical Specifications
Product Overview
Professional Flush Mount Push Button
This high-performance flush spring return push button is engineered for demanding industrial control environments. Designed with an IP65 waterproof rating, it ensures reliable operation in dusty and moisture-prone areas. The switch utilizes a high-grade silver alloy contact for superior electrical erosion resistance, providing a durable solution for control circuits and signal interlocking.
Technical Specifications
Electrical Ratings
660 V
Max AC Voltage
400 V
Max DC Voltage
10 A
Heating Current
Insulation and Contact
- Insulation resistance ≥50MΩ
- Contact resistance ≤25mΩ
- Withstand voltage AC 2.5KV/min
Operational Life
| Component | Mechanical Cycles | Electrical Cycles |
|---|---|---|
| Push Button | 1,000,000 | 5,000,000 |
| Selector Switch | 500,000 | 250,000 |
Compliance and Environment
- Standards Compliance
- CERoHSULIEC 60947-5-1GB/T 14048.1
Physical Characteristics

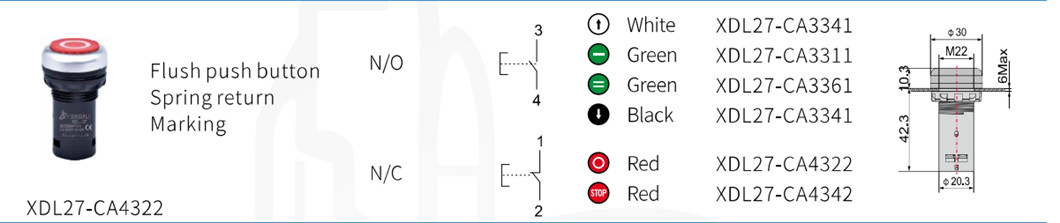

Physical Dimensions
- Mounting Hole: M22
- Total Height: 42.3mm
- Head Height: 10.3mm
- Diameter: 30mm
Protection Rating
IP65DustproofWaterproof
