Technical Specifications
Product Overview

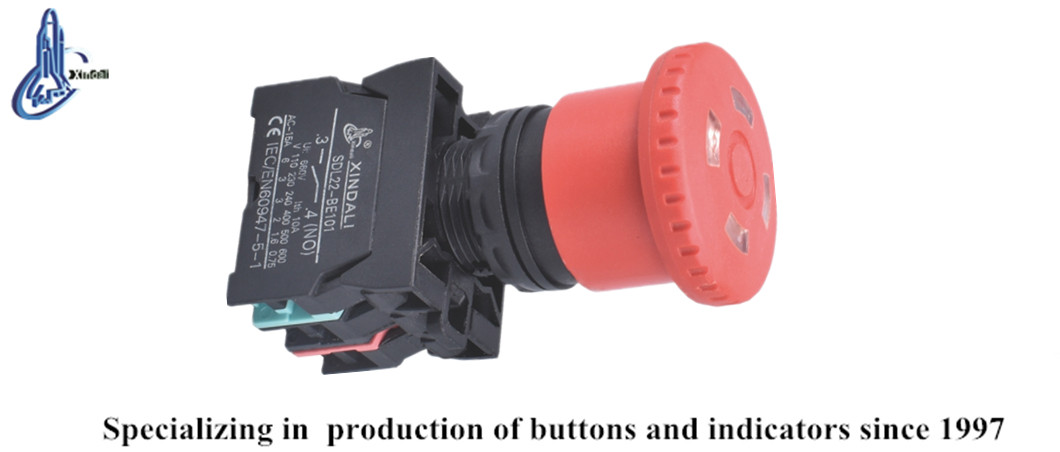

Robust Emergency Stop Solution
This emergency stop pushbutton is designed for critical safety applications in industrial control circuits. Built with a high-grade anti-flame plastic body and silver alloy contacts, it ensures long-term reliability and high resistance to electrical erosion. With an IP67 rating and a clear indication window, it provides both superior environmental protection and visual confirmation of switch status.
Electrical Ratings
AC-15A Performance Metrics
| Voltage (V) | Current (A) |
|---|---|
| 110V | 6 |
| 230V | 3 |
| 240V | 3 |
| 400V | 2 |
| 500V | 1.6 |
| 600V | 0.75 |
- Operational Voltage
- Up to 660V AC / 400V DC
- Rated Thermal Current (Ith)
- 10 A
Technical Specifications
IP Protection Rating
IP65IP66IP67IP68
Temperature Range
- Operating: -5°C to +55°C
- Storage: -25°C to +70°C
Mechanical Life
300 k cycles
Standard Pushbutton
30 k cycles
Emergency Button
- Compliance and Standards
- CEISO 9001RoHSULIEC 60947-5-1GB/T 14048.1

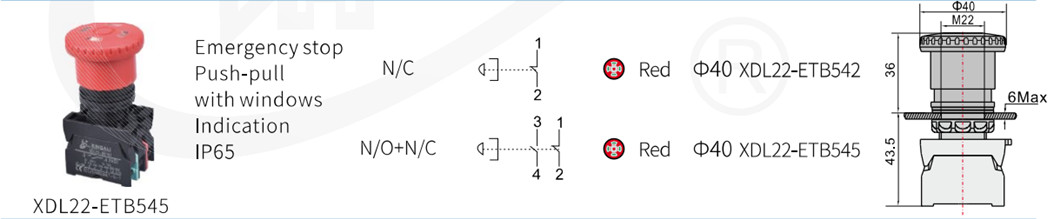

Dimensions and Mounting
- Fastening Torque
- 0.8 Nm
- Mounting Hole Diameter
- 22mm
