Waterproof Emergency Light Pushbutton Switch

This waterproof emergency light pushbutton switch is designed for industrial applications. It features robust construction for use in harsh environments.

Request a Quote Download PDFPDF

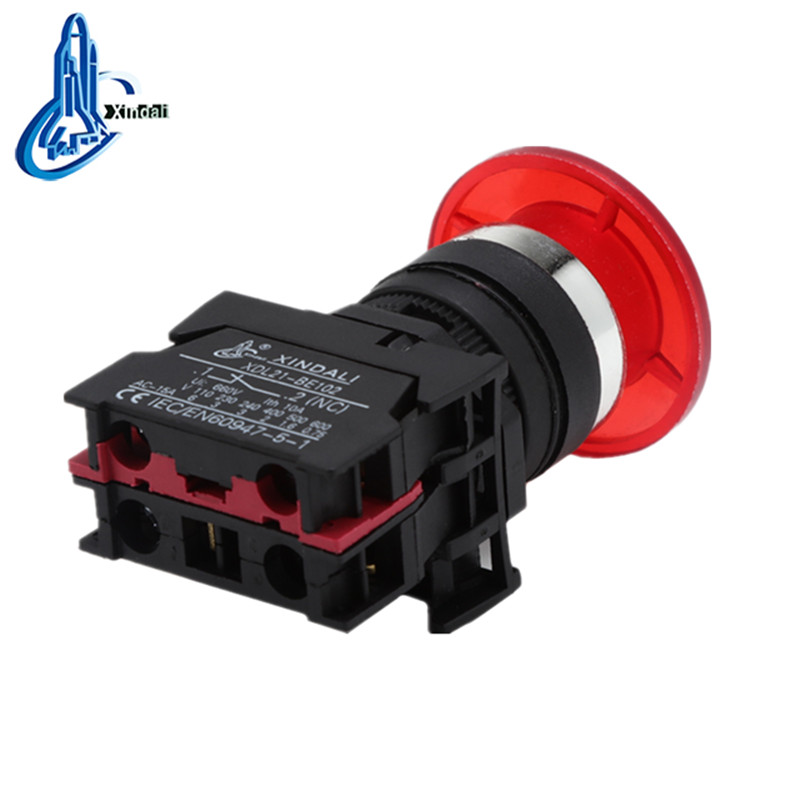

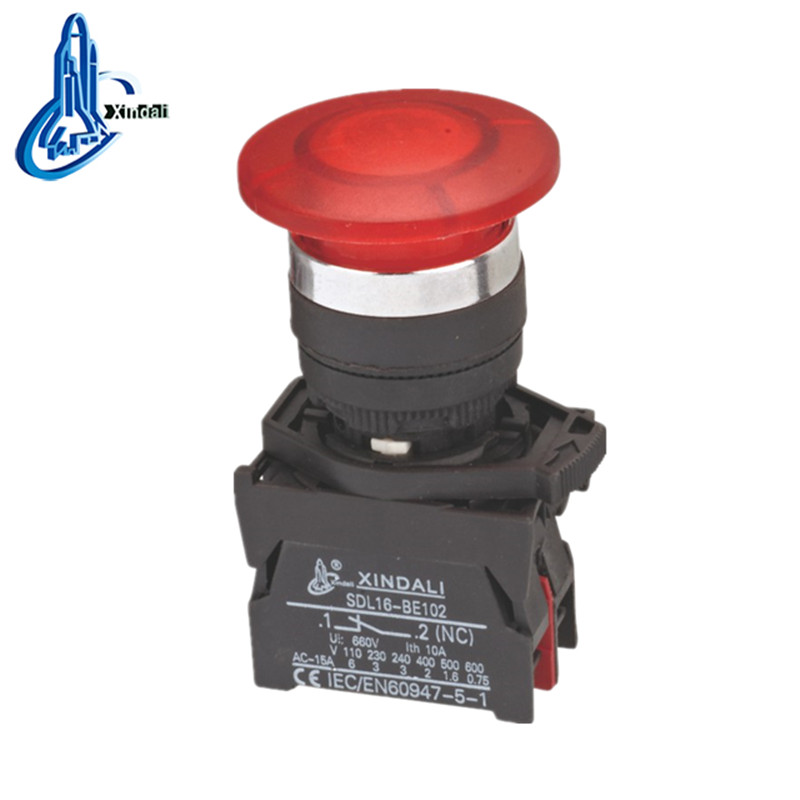

XDL21-CWC42 waterproof emergency light remote heads pushbutton switch - Image 1

Technical Specifications

Product Overview

Industrial Emergency Control Solution

This waterproof emergency stop pushbutton switch is engineered for high-reliability control in demanding industrial environments. Featuring a robust zinc alloy and high-grade anti-flam plastic construction, it ensures durability and consistent performance. Designed for safety-critical applications, it includes a normally closed (N/C) contact for reliable breaking in emergency scenarios.

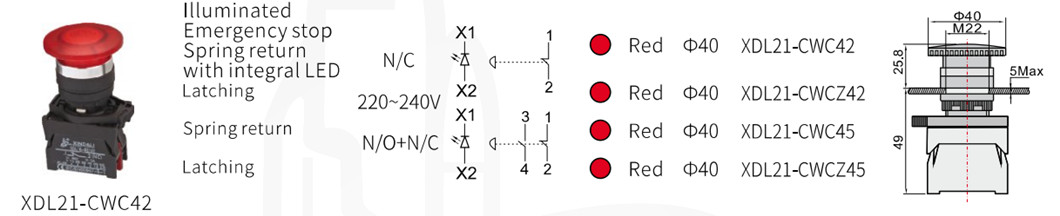

Illuminated emergency stop switch configuration — Model equipped with integral LED for emergency status indication.

Technical Parameters

Electrical Characteristics

660 V

Rated Insulation Voltage

10 A

Thermal Current

6 kV

Impulse Withstand

Operational Life

Component	Mechanical Cycles
Emergency Stop Button	300,000
Standard Button	3,000,000

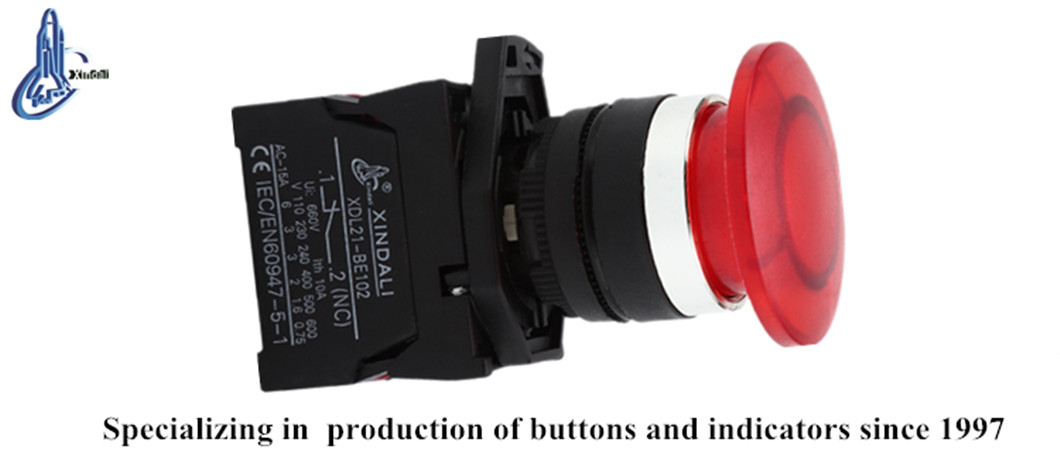

Emergency stop pushbutton showing technical voltage ratings — High-durability mushroom-head emergency stop design.

Environmental and Standards

Environmental Rating

IP65 Protection

Certifications: CEISO 9001RoHSULIEC60947-5-1GB/T14048.1
Operating Temperature Range: -5°C to +55°C

Physical Dimensions

Installation Details

Mounting Diameter: 22mm
Mushroom Head Diameter: 40mm
Total Height: 49mm
Max Panel Thickness: 5mm

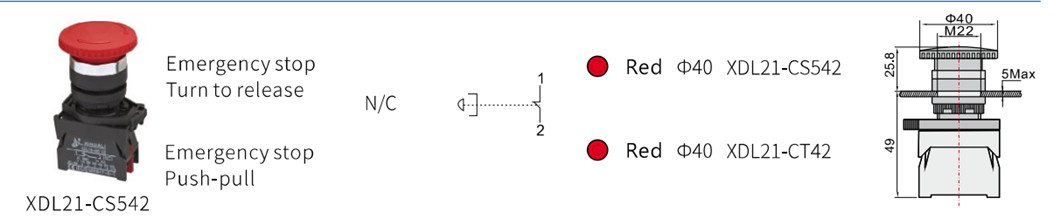

Dimensional drawing for XDL21 series pushbutton — Detailed dimensions for panel mounting.
