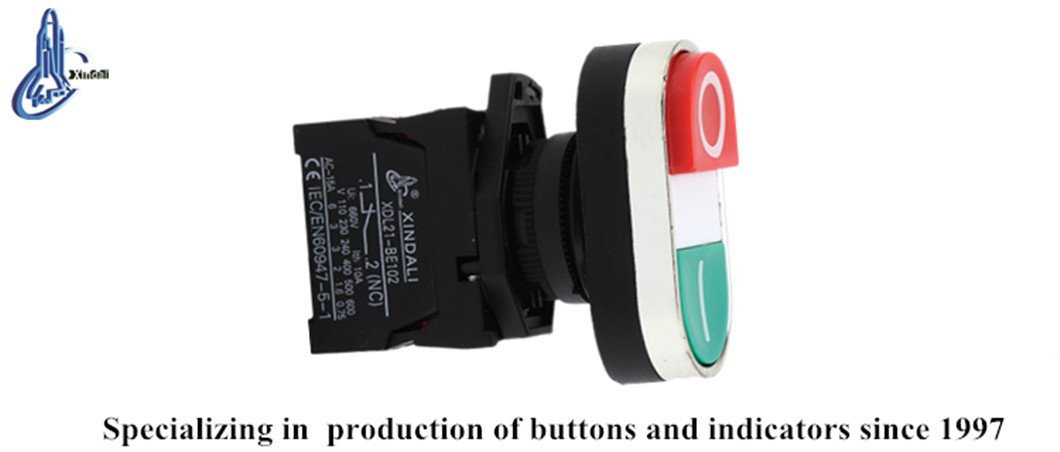

Waterproof Double Action Push Button Switch
This waterproof double action push button switch is designed for electrical power applications. It is suitable for use in distribution boxes, control cabinets, and power stations.
Technical Specifications
Product Overview
Versatile Industrial Push Button Switch

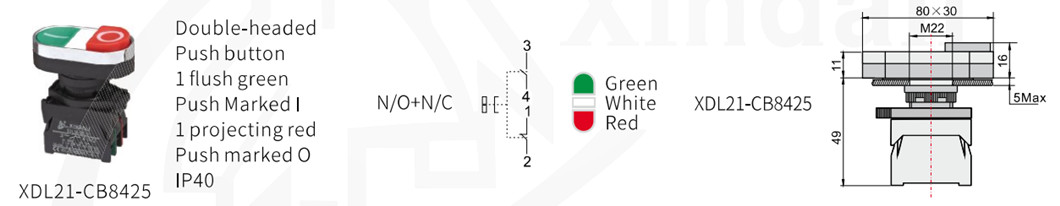

The XDL21-CB8425 double-action push button switch is engineered for high-performance control in industrial electrical systems. Featuring a rugged design utilizing zinc alloy and flame-retardant plastics, it provides reliable operation in demanding environments ranging from distribution cabinets to communication networks. This unit supports AC voltages up to 660V and ensures safety through rigorous international certification standards, including CE and RoHS compliance.
Technical Specifications
Ingress Protection
IP40IP65
Electrical Performance Data
| Metric | Value |
|---|---|
| Insulation Resistance | ≥50MΩ |
| Contact Resistance | ≤25mΩ |
| Withstand Voltage | AC 2.5KV/min |
| Pollution Grade | 3 |
- Rated Insulation Voltage
- 660 V
- Conventional Thermal Current
- 10 A
- Contact Configuration
- N/ON/C
Operating Parameters
Mechanical Lifespan
3,000,000 operations
Standard Button
- Operating Temperature
- -5°C to +55°C
Compliance
- International Standards
- CEISO 9001RoHSULIEC60947-5-1
