Waterproof Convex Head Push Button Switch

This is a waterproof push button switch with a convex red head. It features a normally open (NO) and normally closed (NC) contact configuration, providing versatile control options.

Request a Quote Download PDFPDF

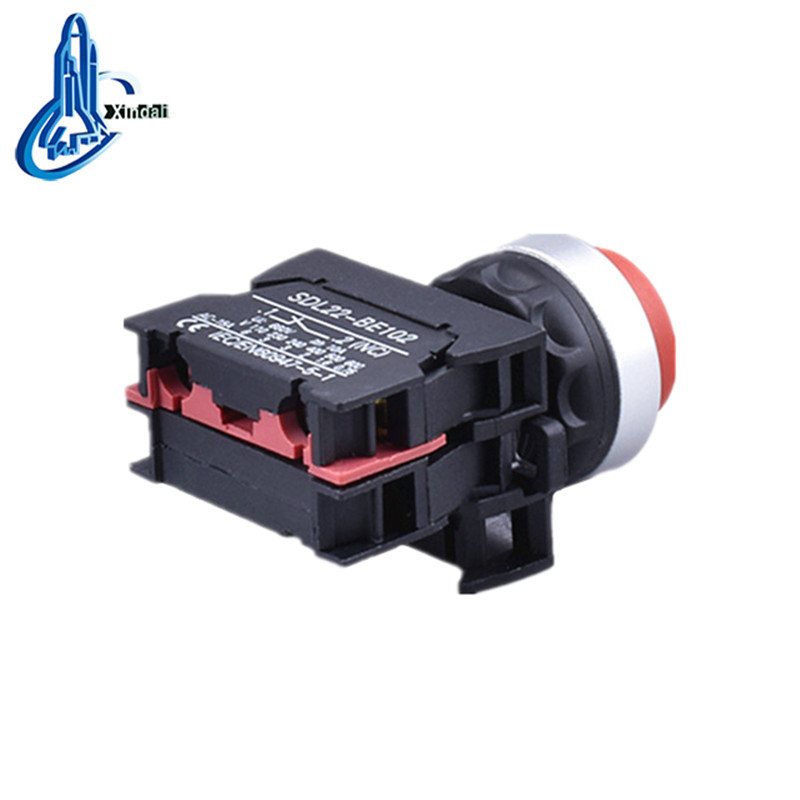

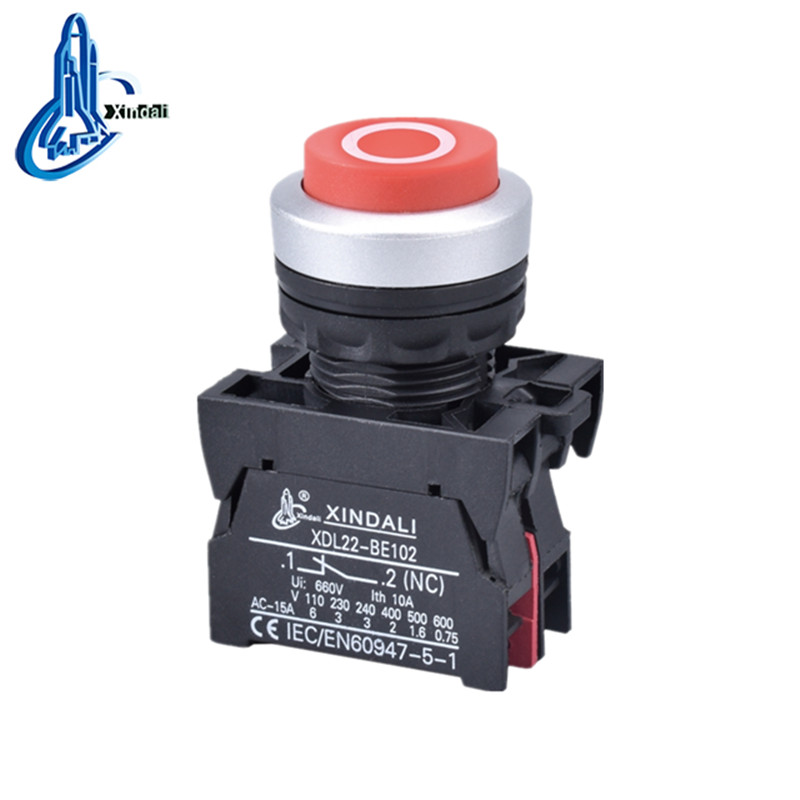

XDL22-CL4322 waterproof convex head waterproof red no nc push button switch - Image 1

Technical Specifications

Product Overview

Industrial Push Button Switch

The XDL22-CL4322 is a high-performance convex head push button switch engineered for demanding industrial control environments. Designed for reliability, it features a rugged construction capable of handling AC voltages up to 660V and DC circuits, making it ideal for signal control and emergency signaling. Its specialized silver alloy contacts ensure high resistance to electrical erosion, while the durable design provides robust ingress protection against dust and moisture.

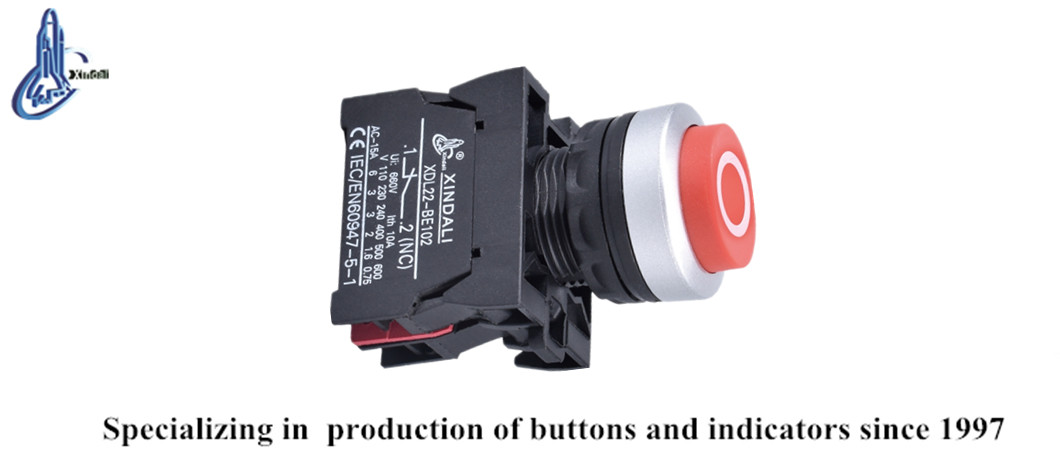

Waterproof convex red actuator push button switch — Durable and reliable push button designed for harsh environments.

Electrical Ratings

Rated AC Voltage: 660 V
Thermal Current (Ith): 10 A
Contact Configuration: NONC

Technical Specs

IP Protection Grade

IP40IP54IP65IP66IP67IP68

Operating Temperature Range: -5°C to +55°C
Relative Humidity: 35-85% RH
Fastening Torque: 0.8 Nm
Pollution Grade: 3

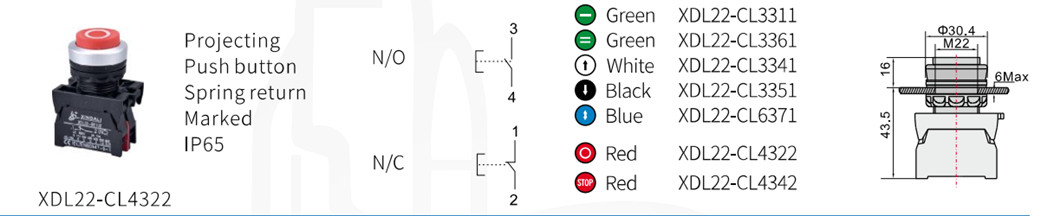

Convex head push button switch showing physical dimensions and identification markings — Projecting push button switch with spring return mechanism.

Certifications

Standards Compliance

IEC60947-5-1
GB/T14048.1
GB14048.5
CE
ISO9001
ROHS
UL
