Vertical Shaft Engine 79cc-159cc
This vertical shaft engine features a compact structure. It has a displacement of 79cc-159cc.
Technical Specifications
Product Overview
Vertical Shaft Performance
This vertical shaft engine series, ranging from 79cc to 159cc, is engineered for efficiency and reliability in diverse professional applications. Featuring advanced OHV technology, it provides superior power output and optimized fuel combustion. The compact design ensures easy integration into various machinery, while the integrated easy-start system simplifies operation for end-users.

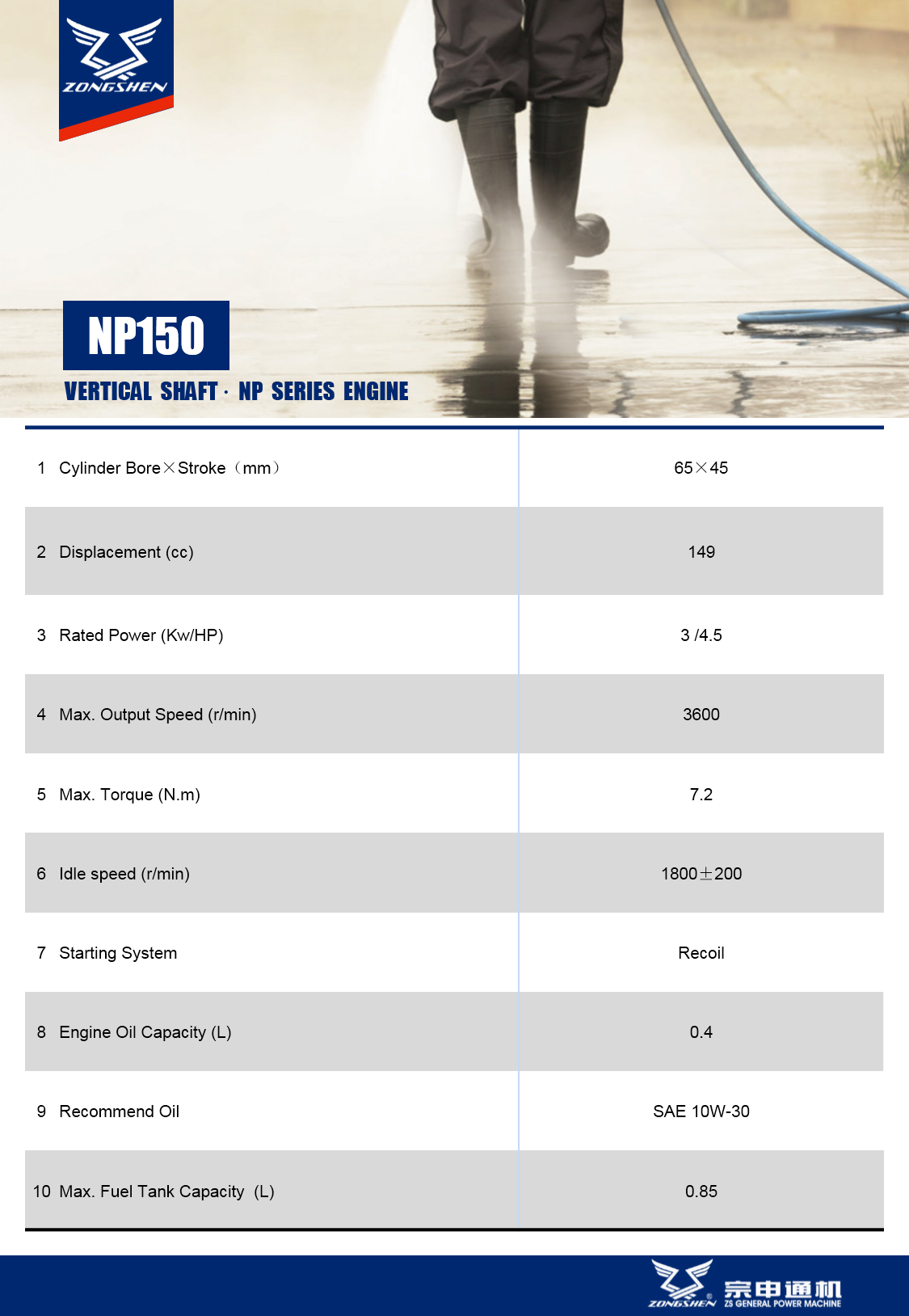

Technical Specifications
Rated Power
3 Kw
Power
4.5 HP
Power
- Displacement Range
- 79cc - 159cc
- Displacement
- 149 cc
- Maximum Torque
- 7.2 N.m
- Max Output Speed
- 3600 r/min
- Idle Speed
- 1800±200 r/min
- Bore x Stroke
- 65 x 45 mm
Operational Details
- Starting System
- Recoil
- Engine Oil Capacity
- 0.4 L
- Recommended Oil
- SAE 10W-30
- Fuel Tank Capacity
- 0.85 L
Features
- Engine Highlights
- OHV TechnologyEasy Start SystemCompact StructureVertical Shaft
