Technical Specifications
Overview
Precision Flow Measurement

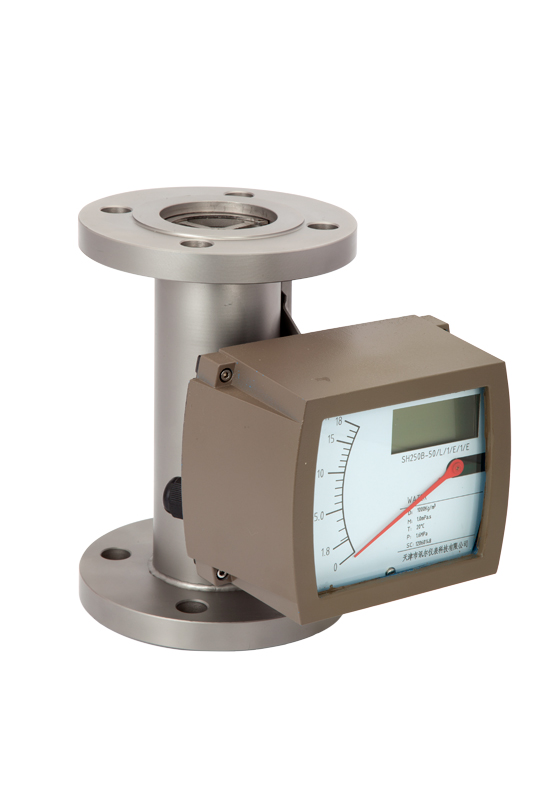

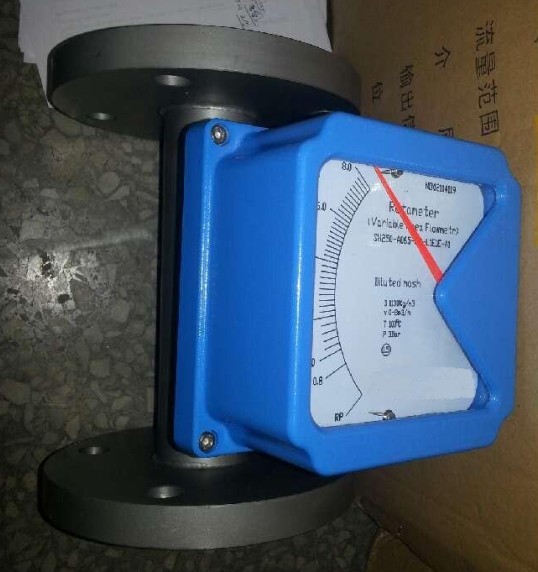

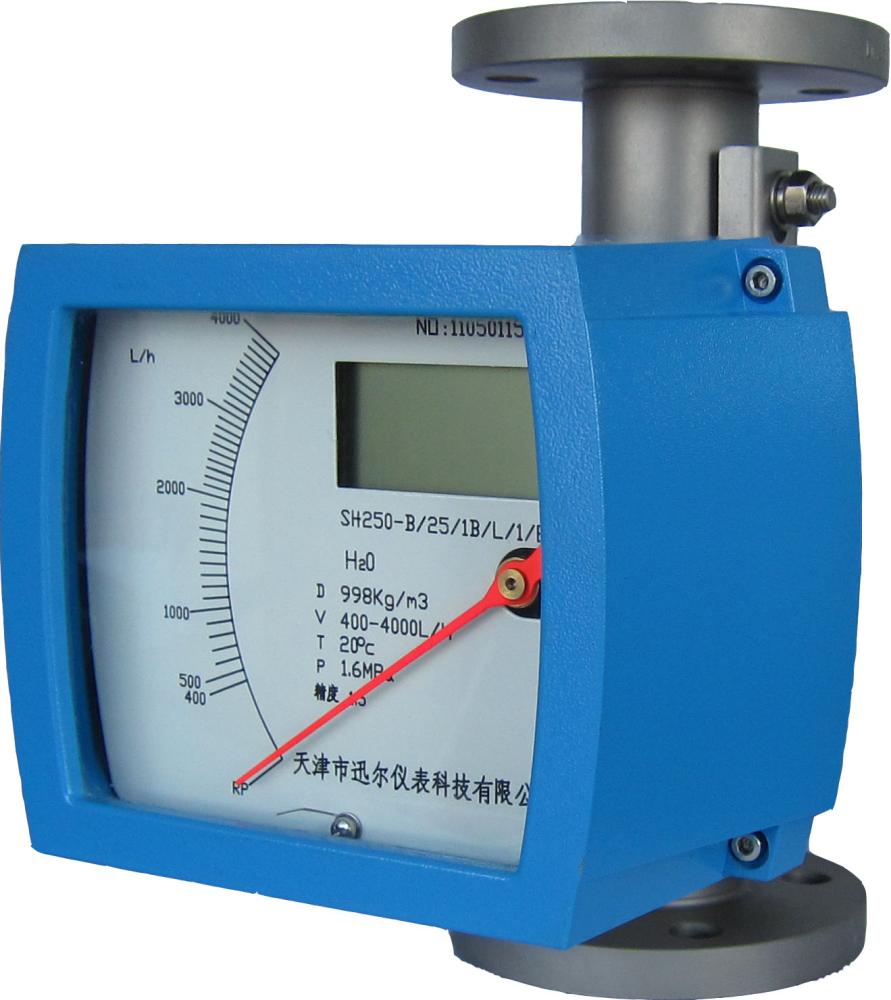

This variable area flowmeter is designed for reliable and accurate fluid flow measurement in industrial piping systems. Utilizing a float-based tapered tube design, it provides visual flow rate verification alongside optional electronic signal output. Its robust construction supports diverse connection types and challenging operating environments, including high-temperature and hazardous conditions.
Performance Metrics
Accuracy Rating
1.5 %
Standard Accuracy
1 %
Special Accuracy
Operating Limits
Maximum Pressure by Pipe Size
| Pipe Size (DN) | Max Pressure |
|---|---|
| DN15, DN25, DN40, DN50 | 4.0 Mpa |
| DN80, DN100, DN150 | 1.6 Mpa |
Temperature Tolerances
- Ordinary Fluid: -40°C to 100°C
- High-Temperature Fluid: -80°C to 250°C
- Liner F46 Fluoroplastic: -40°C to 80°C
- PTFE: -10°C to 120°C
Installation & Compatibility
- Connection Options
- FlangedThreadedTri-clamp
Compliance & Safety
Explosion-proof Classes
Intrinsically safeExibIICT4ExdIIBT4
Technical Specifications
- Power & Output
- 3.6VDC 2-wire, 4-20mA output
