Tower Crane
This tower crane is engineered for efficient lifting and material handling on construction sites. Its modular design allows for easy assembly and disassembly, adapting to varying project requirements.
Technical Specifications
Overview
High-Performance Construction Tower Crane

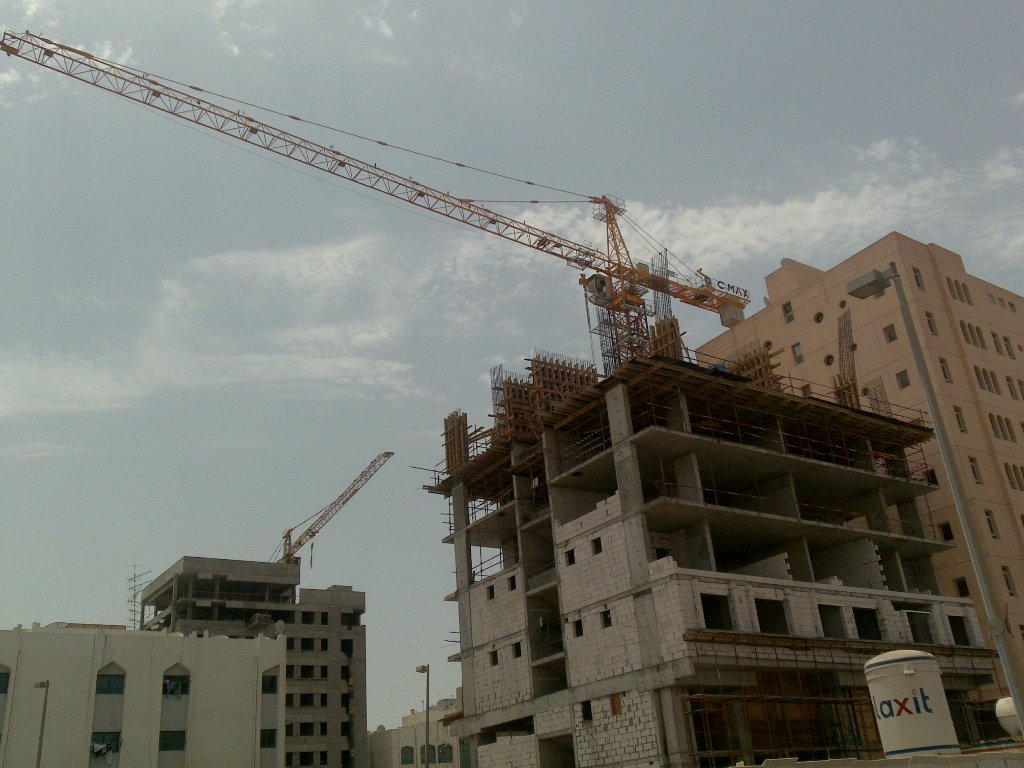

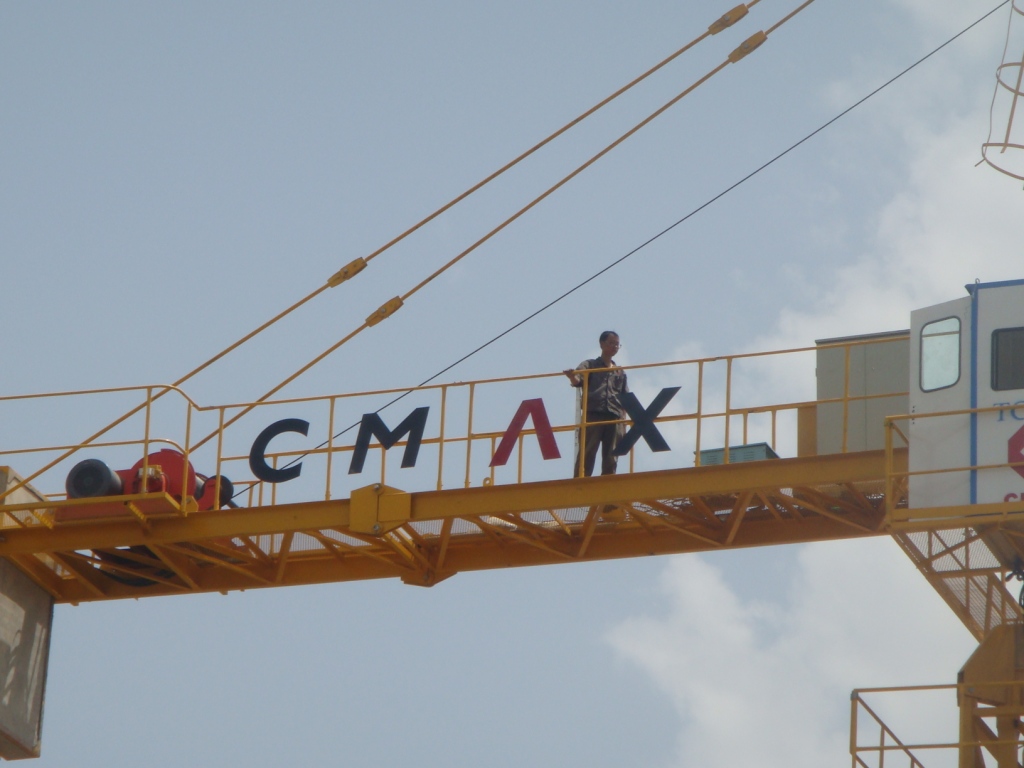

The TC5013 is a robust tower crane engineered for efficient material handling on high-rise construction projects. It offers a maximum lifting capacity of 6 tons and an adaptable working range of up to 50 meters, ensuring versatility for various site requirements. With advanced hoisting, trolleying, and slewing mechanisms, it provides the precision and reliability necessary for demanding heavy-lifting tasks.
Performance Metrics
Core Performance Data
6 t
Max Lifting Capacity
50 m
Max Working Range
150 m
Max Height with Attachment
Technical Specifications
Crane Dimensions
- Independent Height: 41.5m
- Mast Section Size: 1.6m x 1.6m x 2.5m
- Min Working Range: 2.5m
- Operating Environment
- -40 to +60 degrees Celsius
Mechanism Details
Operational Mechanisms
| Mechanism | Speed | Motor Model |
|---|---|---|
| Hoist | 7/32.2/63.5 m/min | YZTD225M3 |
| Trolleying | 20/40 m/min | YDEJ132S |
| Slewing | 0-0.6 r/min | YLEW112M |
