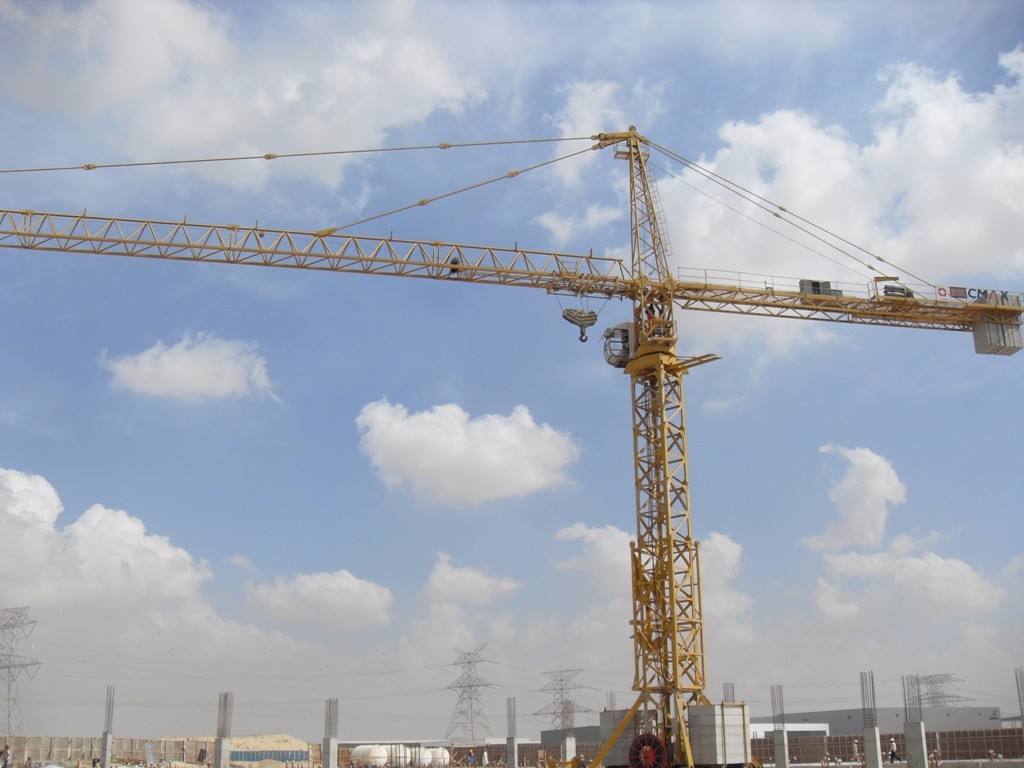

TC7135 Tower Crane
This tower crane is designed with advanced technology to ensure optimal performance and safety. Its structure is designed with three-dimensional software and force calculation software to ensure high safety and performance.
Technical Specifications
Overview
High-Performance Tower Crane
The TC7135 is a high-capacity tower crane engineered for demanding construction environments, including high-rise and bridge building projects. It features advanced VVVF and PLC control systems to ensure precise load handling, operational efficiency, and safety. Its modular design allows for flexible reach and straightforward assembly, making it a reliable solution for complex job sites.
Performance Metrics
Key Performance Metrics
16 t
Max Lifting Capacity
3.5 t
Tip Load at 71m
60 m
Independent Height
200 m
Max Height with Attachment
- Working Ranges
- 50m55m60m65m71m
Technical Specifications
Hoist Mechanism Capacity & Speed
| Falls | Capacity (t) | Speed (m/min) |
|---|---|---|
| 2 | 0-8 | 0-64 |
| 2 | 0-8 | 0-32 |
| 4 | 0-16 | 0-16 |
- Environmental Limits
- -40 to +60 degrees Celsius
- Mast Section Size
- 2m x 2m x 2.5m
