Topless Tower Crane with 8-25 Ton Capacity
This topless tower crane features easy assembly/disassembly due to the absence of a tower cap structure or pull rod. Its modular structure and lower overall height allow for easier installation on constricted construction sites.
Technical Specifications
Overview
Versatile Topless Tower Crane
The TL6015 topless tower crane is a highly versatile and safe lifting solution designed for complex construction projects. Its modular design ensures easy assembly and disassembly, while the compact footprint makes it particularly well-suited for operation in confined urban job sites. With flexible jib configurations and robust load-bearing capabilities, this crane offers reliability for various lifting requirements.
Performance Metrics
Rated Lifting Capacities
8 t
Max Capacity
61.7 m
Max Jib Length
44 m
Max Free Height
- Standards & Certifications
- CEISO 9001
Technical Specifications
- Crane Base Dimensions
- 4.5m x 4.5m
- Standard Mast Type
- L46

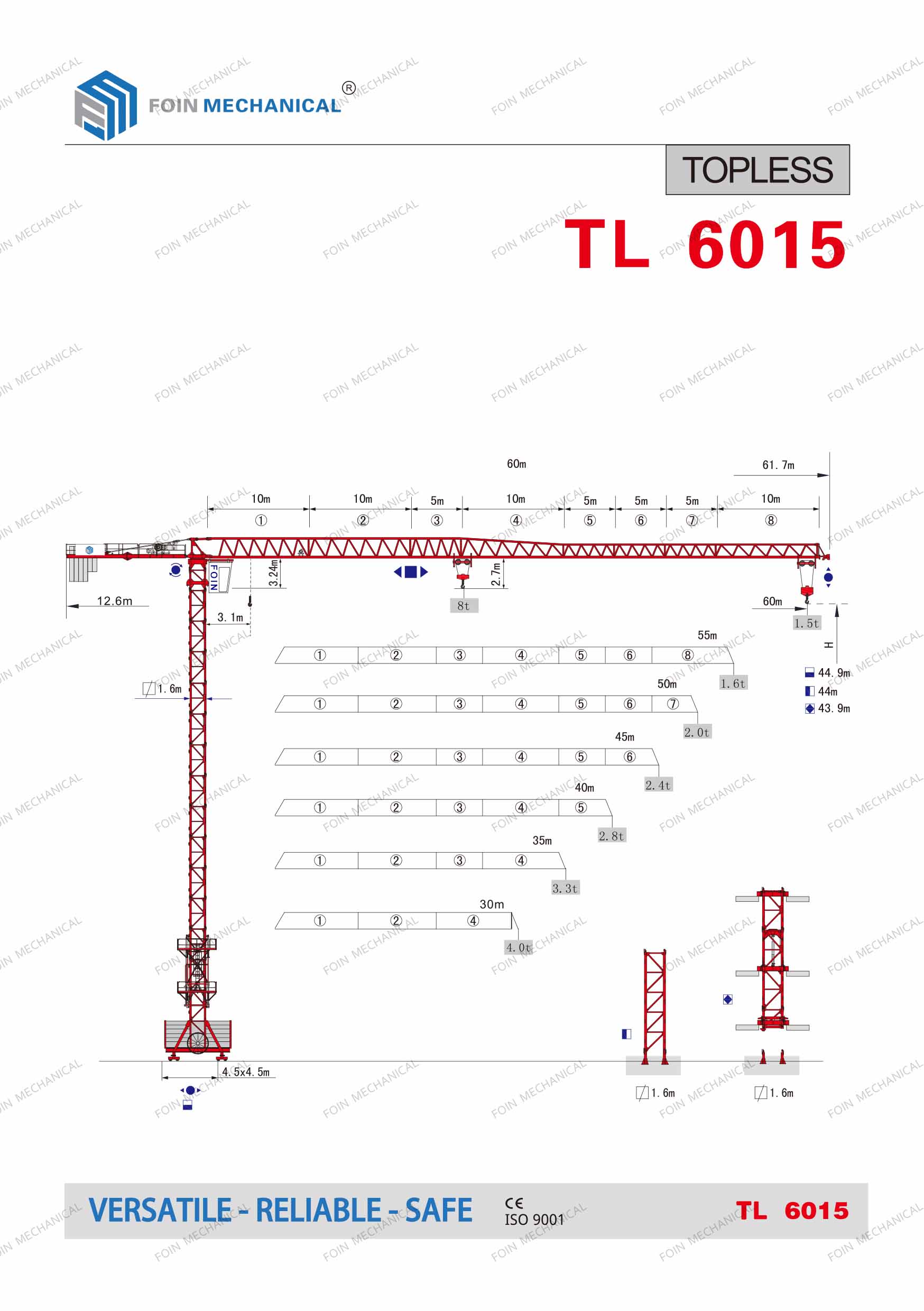

Load Configurations
Typical Load Capacity
| Reach | Capacity |
|---|---|
| 60m | 1.5t |
| 55m | 1.6t |
| 45m | 2.0t |
| 40m | 2.4t |
| 35m | 2.8t |
| 30m | 3.3t |
Operational Details
Key Features
- Modular design for rapid deployment
- Climbing mechanism for high-rise building progress
- Topless design for reduced interference in tight spaces

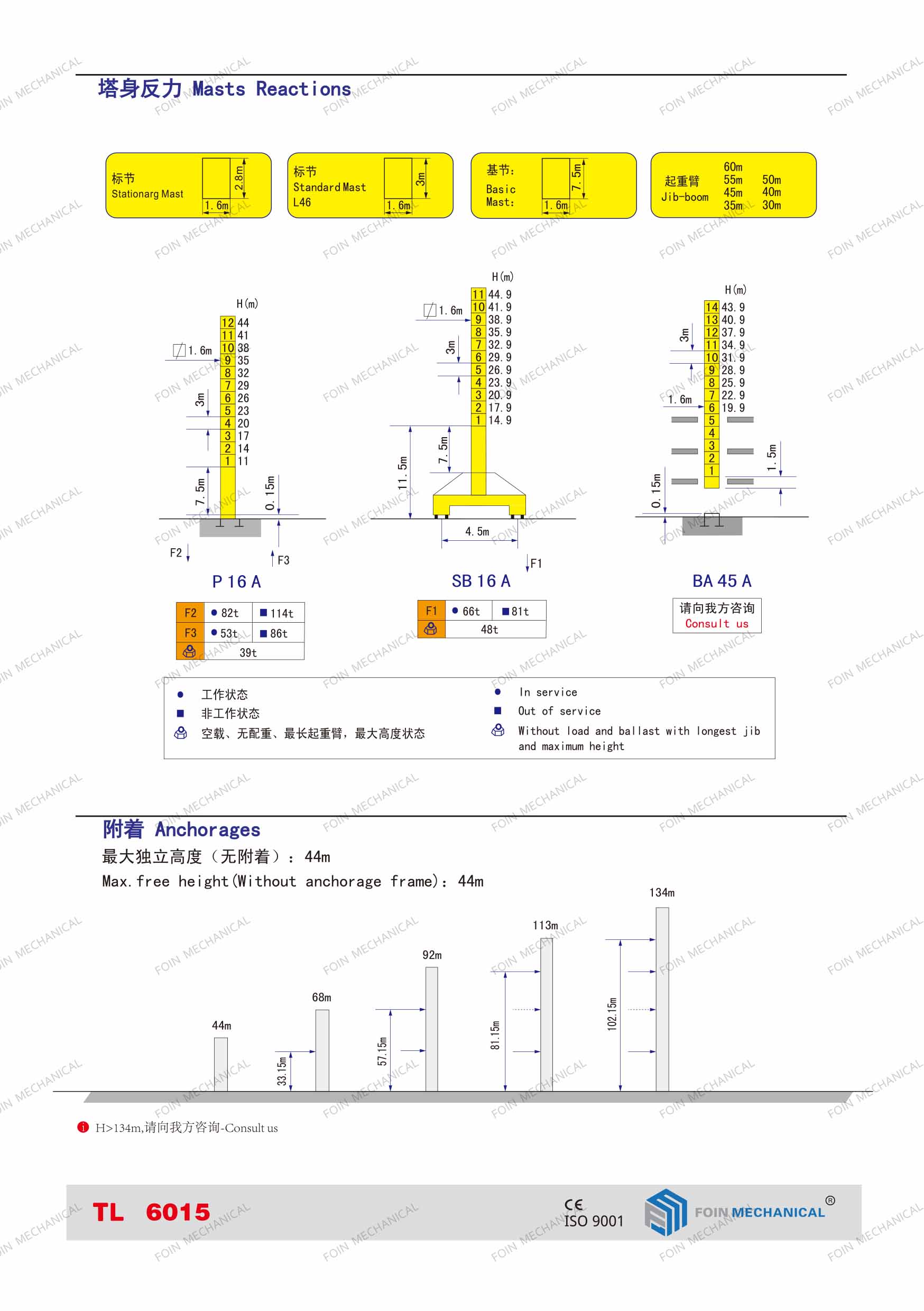

- Multiple anchorage configurations available
