Topless Tower Crane with 25-ton Capacity
This tower crane features a topless design, eliminating the need for a tower cap or pull rod, which simplifies both assembly and disassembly. With greater structural strength, this crane has fewer parts, making it more convenient to transport.
Technical Specifications
General Overview

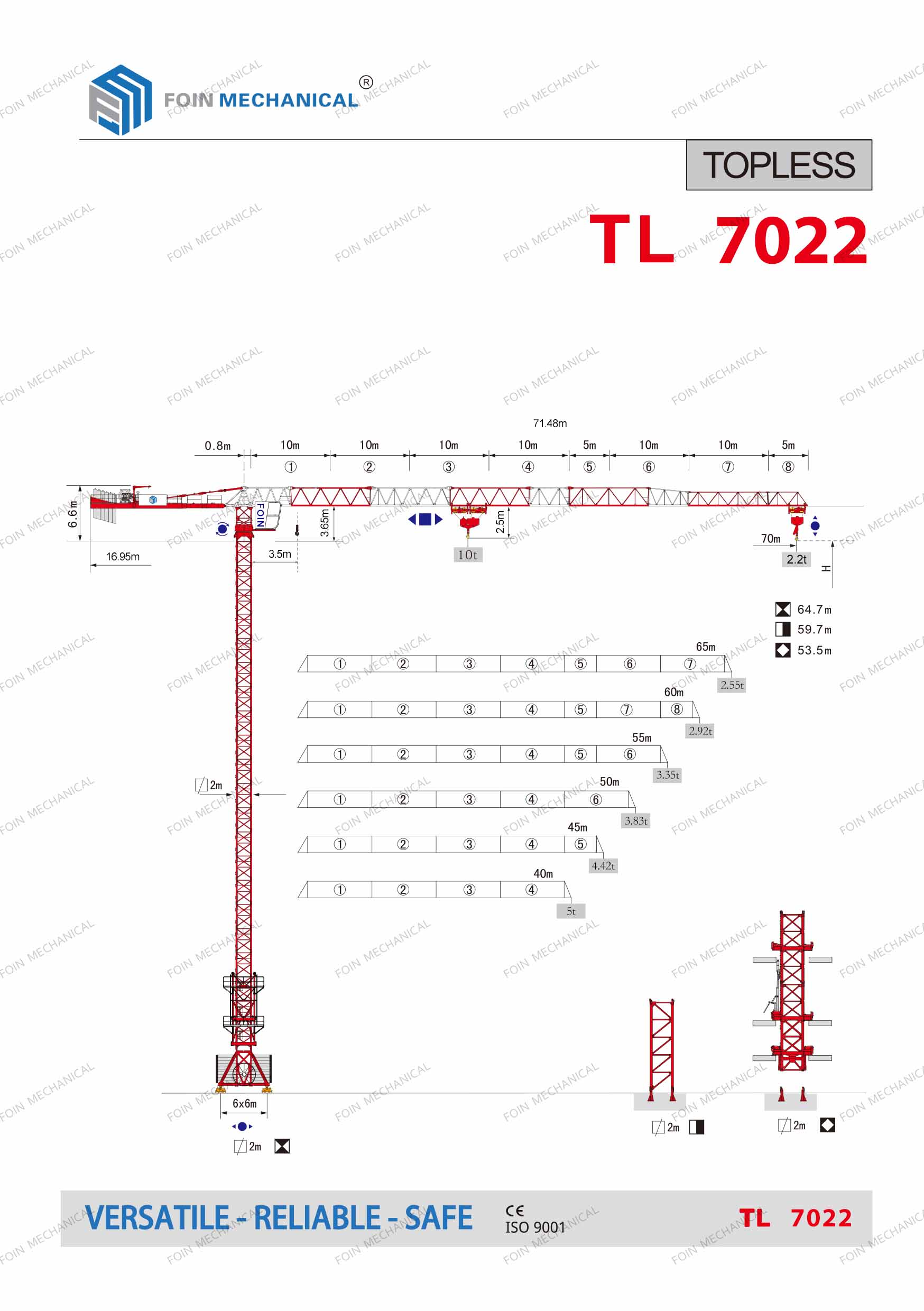

Topless Tower Crane TL7022
The TL7022 is a versatile topless tower crane engineered for demanding construction projects requiring high lifting capacities and operational efficiency. With a maximum jib length of 71.48 meters and a top load capacity of 10 tons, it provides reliable performance in various height configurations. The crane features advanced control systems and robust weather-resistant construction, making it suitable for stationary, climbing, and traveling applications.
Technical Performance
Performance Metrics
10 t
Max Capacity
71.48 m
Max Jib Length
64.7 m
Max Freestanding Height
- Control System Types
- AI controlVFD controlOrdinary speed control
Operational Configuration
Use Schemes
- Stationary
- Chassis weight
- Traveling Chassis
- Internal climbing
Power Requirements
- 220V/60Hz
- 380V/55Hz
- 400V/50Hz
- 440V/60Hz
Quality & Compliance
Certifications
CEISOGOSTCU-TR
Finish Specifications
| Component | Specification |
|---|---|
| Paint Thickness | 140μm |
| Paint Type | UV-resistant, weather-resistant polyurethane |
| Ladders & Platforms | Hot-dip galvanized |
Service & Terms
Business Terms
| Term | Details |
|---|---|
| Warranty | 16 months localized |
| Delivery Time | 10-35 days |
| MOQ | 1 set |
| Spare Parts | Free provided |
