Topkit Tower Crane with 70-Meter Radius
This topkit tower crane has a traditional appearance and a maximum working radius of 70 meters. It can reach a maximum height of 280 meters and lift up to 50 tons.
Technical Specifications
Product Overview
Versatile Topkit Tower Crane

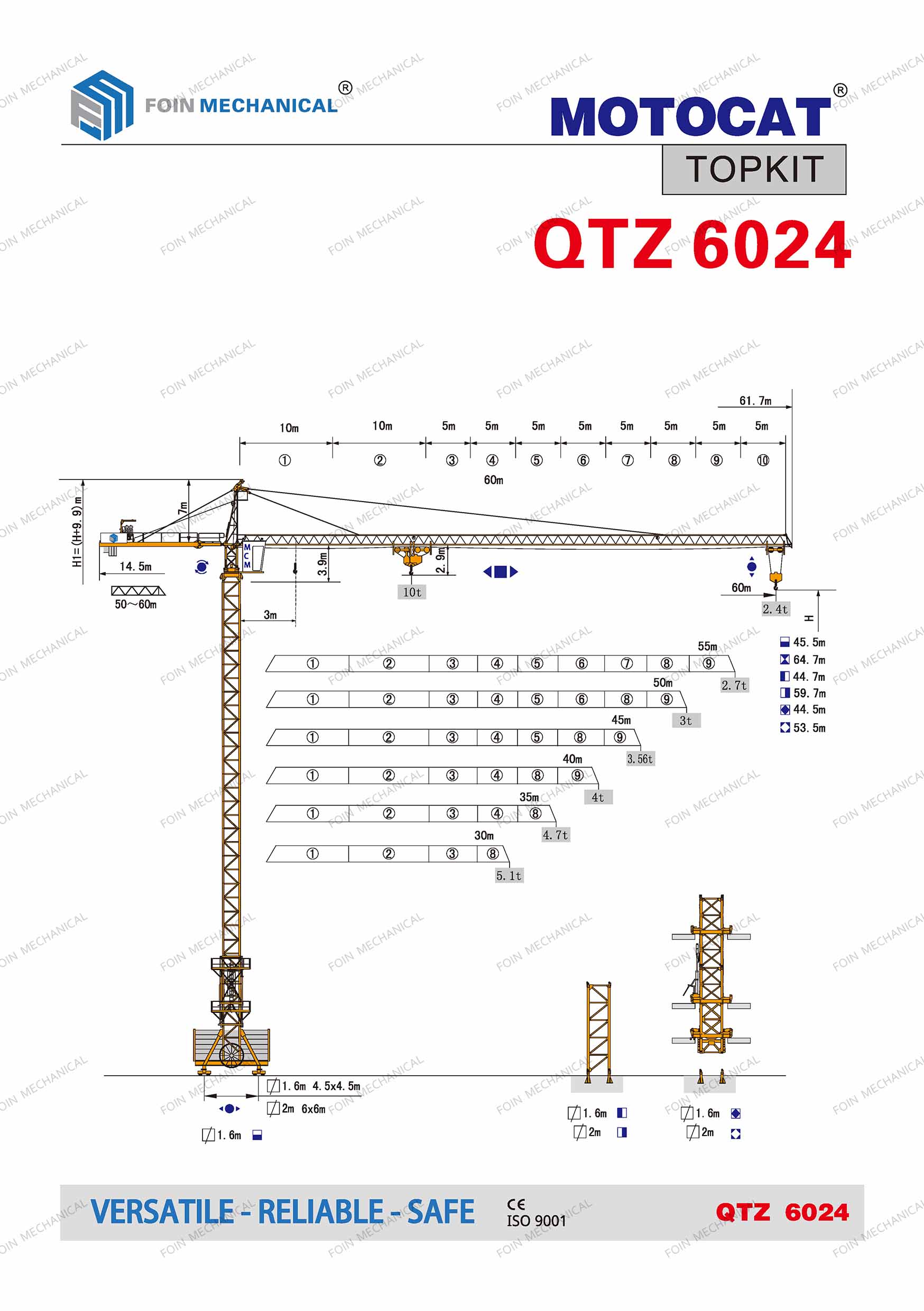

The 6024 Topkit Tower Crane is designed for high-performance lifting across diverse construction environments. With a maximum jib length of 61.7 meters and a lifting capacity of up to 10 tons, it offers adaptable configurations for various site requirements. Engineered for safety and reliability, this crane features durable UV-resistant coatings and advanced control systems for efficient operation.
Technical Specifications
Performance Metrics
61.7 m
Max Jib Length
10 t
Max Capacity
64.7 m
Max Height
Base Configurations
- 1.6m x 1.6m
- 2m x 2m
- 4.5m x 4.5m
- 6m x 6m
- Available Jib Lengths
- 30m35m40m45m50m55m60m61.7m
Operation & Control
Control System Types
AI ControlVFD ControlOrdinary Speed Control
Operational Schemes
- Stationary
- Chassis Weight
- Traveling Chassis
- Internal Climbing
- Supported Power Supply
- 220V/60Hz380V/55Hz400V/50Hz440V/60Hz
Construction Quality
- Coating Specifications
- 140μm UV-resistant and weather-resistant polyurethane
- Galvanization
- Yes
Compliance & Service
- Certifications
- CEISOGOSTCU-TR
- Warranty Period
- 16 months
