Technical Specifications
Overview

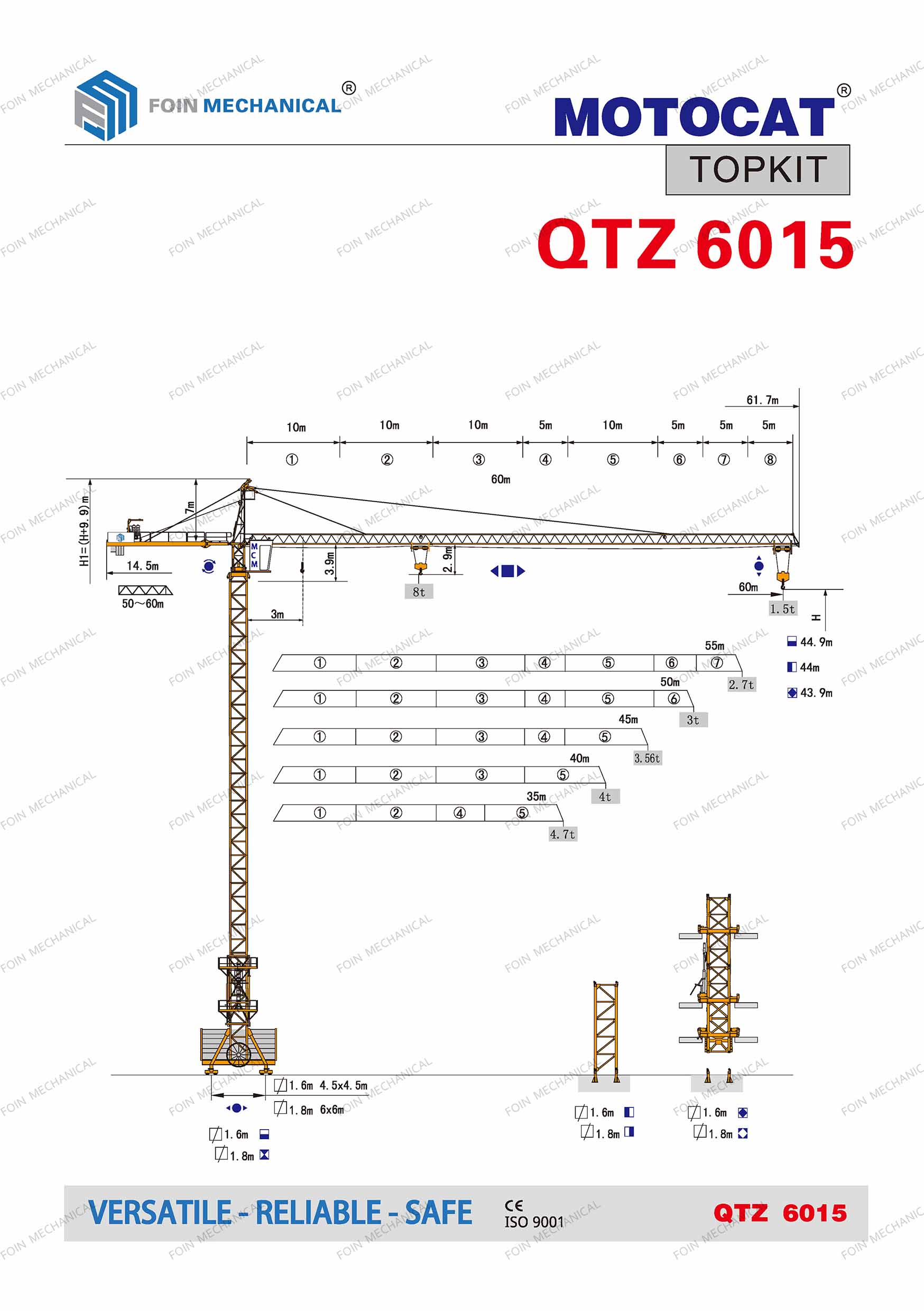

Versatile Climbing Tower Crane
The QTZ 6015 is a high-performance climbing tower crane designed for vertical construction projects. It offers exceptional versatility with a maximum working radius of 60 meters and a robust load capacity of up to 8 tons. Engineered for safe and efficient operations, this crane features modular components for straightforward assembly and disassembly on varied job sites.
Performance
Key Operational Metrics
60 m
Maximum Radius
8 t
Maximum Load
44 m
Max Free Standing Height
Technical Specifications

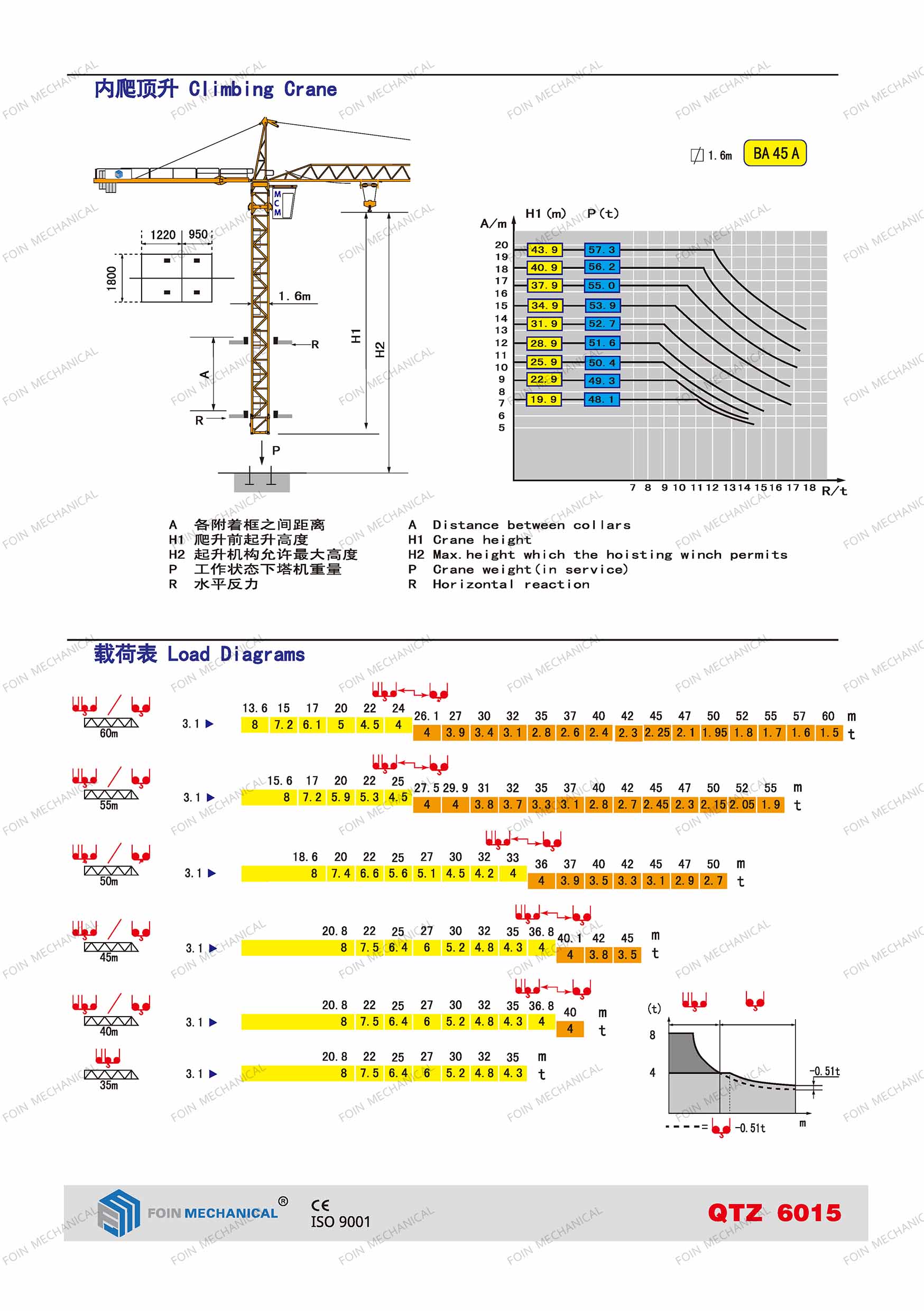

Lifting Capacity by Jib Length
| Jib Length | Max Capacity | Tip Load |
|---|---|---|
| 60m | 8t | 1.5t |
| 55m | 8t | 1.8t |
| 50m | 8t | 2.7t |
| 45m | 8t | 3.5t |
| 40m | 8t | 4t |
| 35m | 8t | 4.7t |
Foundation Configurations
- 1.6m base with 4.5m x 4.5m footprint
- 1.8m base with 6m x 6m footprint
Compliance
- Certifications & Standards
- CEISO 9001
