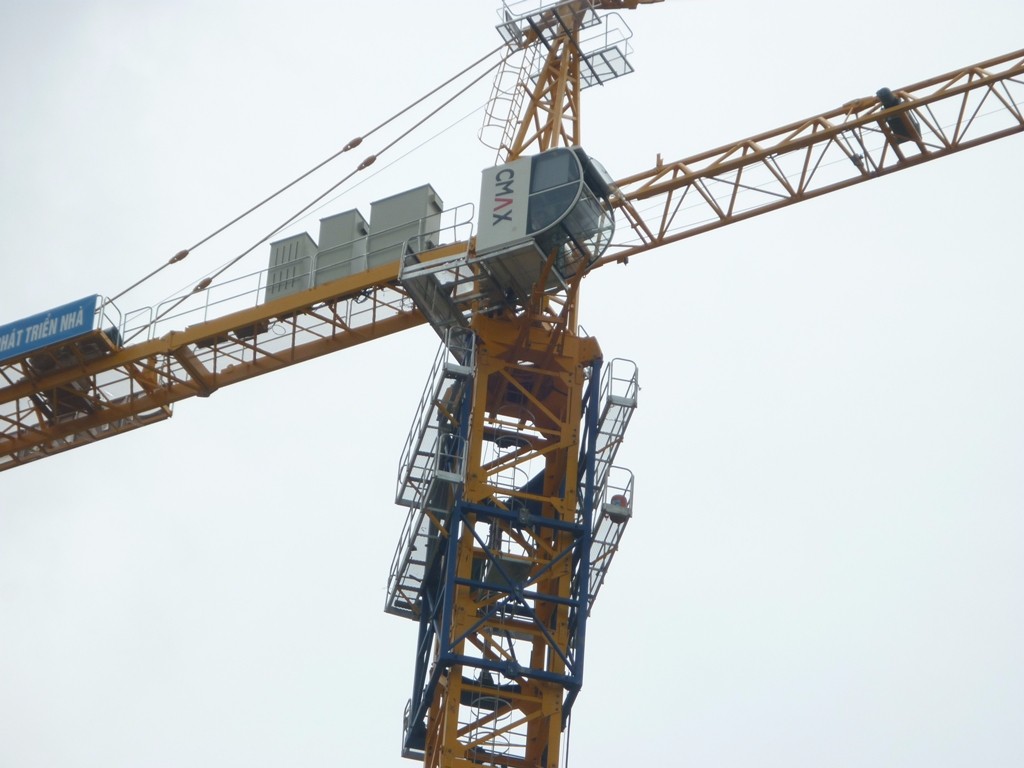

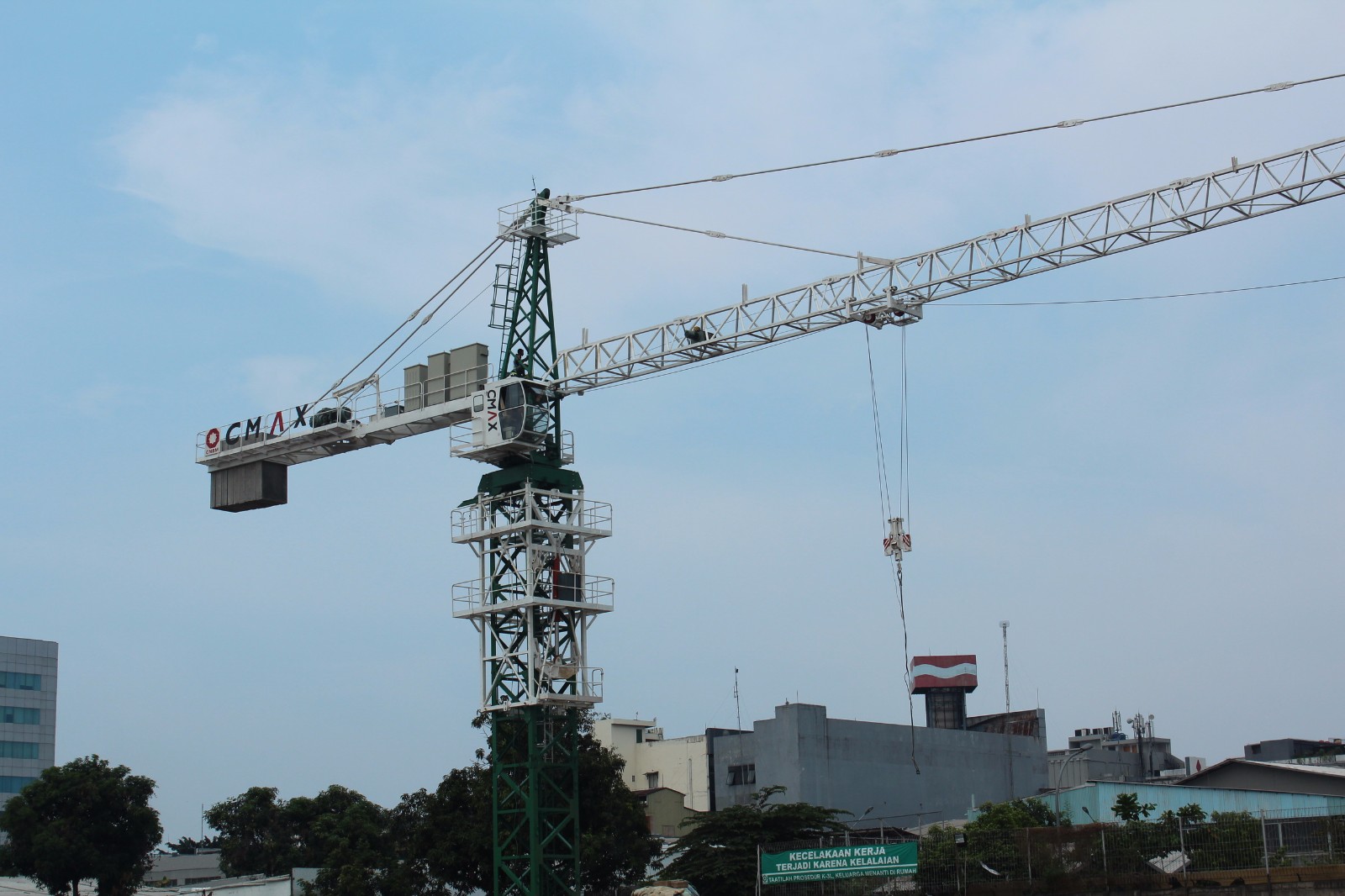

TC6024 Tower Crane
This tower crane adapts advanced technology in its design for optimal performance. Its structure is designed with three-dimensional software and force calculation software to ensure safety and performance.
Technical Specifications
Overview
High-Performance TC6024 Tower Crane
The TC6024 tower crane is a robust lifting solution engineered for demanding construction environments. With a maximum lifting capacity of 10 tons and a flexible jib reach of up to 60 meters, it ensures efficient material handling and precise positioning on complex work sites. Designed for stability and safety, this modular crane supports freestanding heights up to 60 meters, with attachment options extending up to 200 meters.
Performance Metrics
Key Performance Indicators
10 t
Max Lifting Capacity
2.4 t
Tip Load at 60m
60 m
Max Independent Height
200 m
Max Height with Attachment
- Lifting Capacities
- 0-2.5t0-5t0-10t
Technical Specifications
Operational Range
- Working range: 45m, 54m, 60m
- Minimum working range: 2.5m
- Working temperature: -40 to +60°C
Power & Electrical
| Requirement | Value |
|---|---|
| Power (Generator) | 290 KVA |
| Power (Transformer Booster) | 320 KVA |
| Startup Voltage/Current | 361V-418V / 386A |
| Rated Voltage/Current | 380V-440V / 192A |
