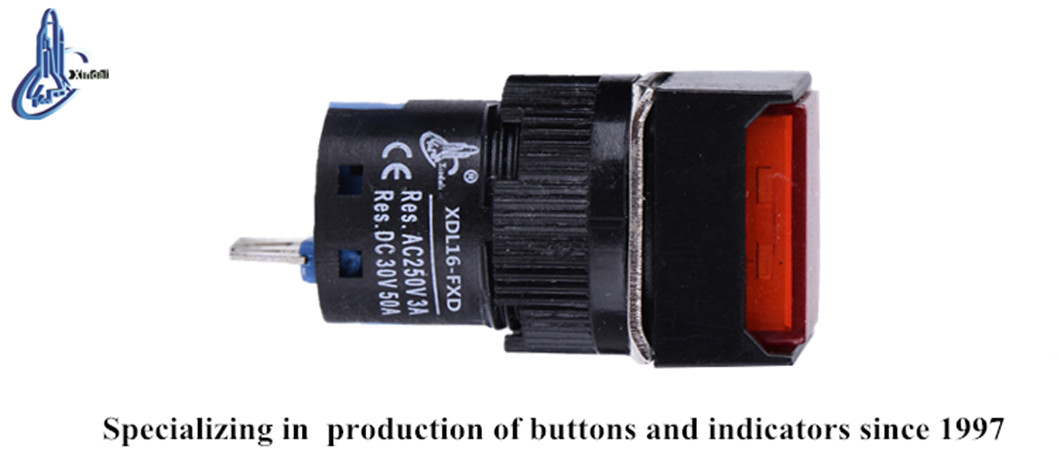

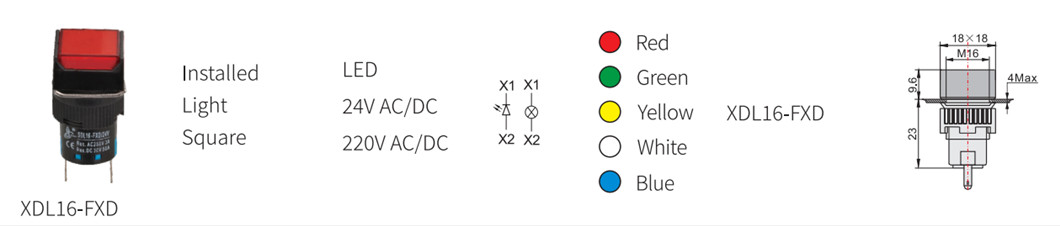

Compact Industrial LED Push Button
The XDL16-FXD series is a high-performance square push button switch featuring integrated LED illumination. Engineered for industrial control, it offers robust operation with zinc alloy and high-grade anti-flam plastic components. This versatile switch is ideal for signal, control, and interlocking purposes in circuits up to 660V.
Electrical Specifications
- Rated Insulation Voltage
- AC 600V (50Hz/60Hz)
- Conventional Heating Current
- 10 A
- Contact Resistance
- ≤25mΩ
- Insulation Resistance
- ≥50MΩ
Performance Metrics
Mechanical Life
1,000,000 cycles
Pushbutton
500,000 cycles
Selector Switch
Electrical Life
5,000,000 cycles
Pushbutton
250,000 cycles
Selector Switch
Environmental Ratings
Operating Environment
- Temperature range: -25°C to +50°C
- Relative humidity: ≤85%
- Altitude: ≤2,000m
- Pollution grade: 3
- Protection Grade
- IP40IP55
Certifications
Certifications
CEISO 9001ROHSULIEC 60947-5-1
