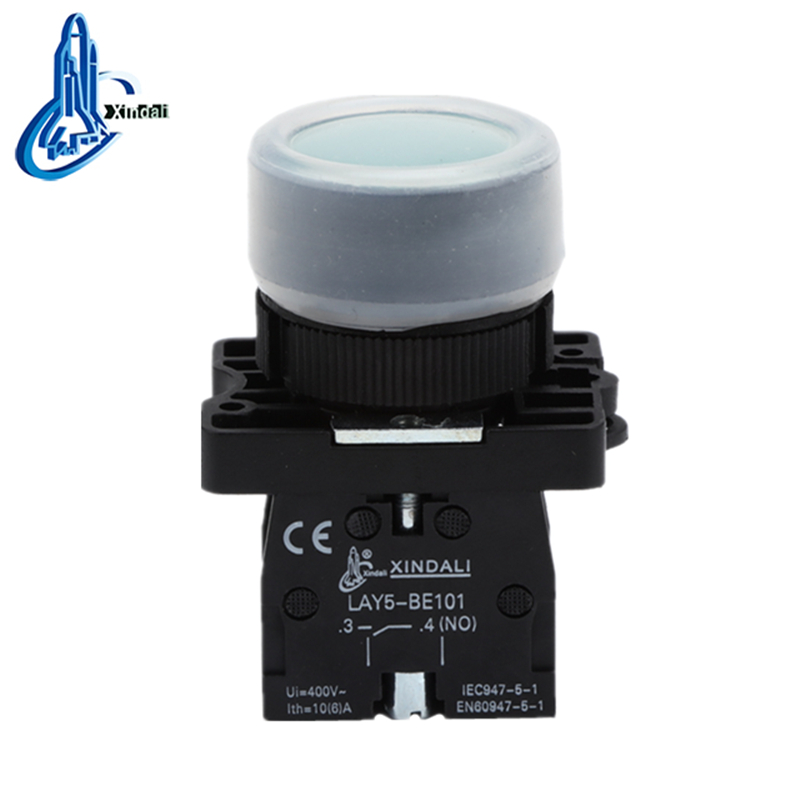

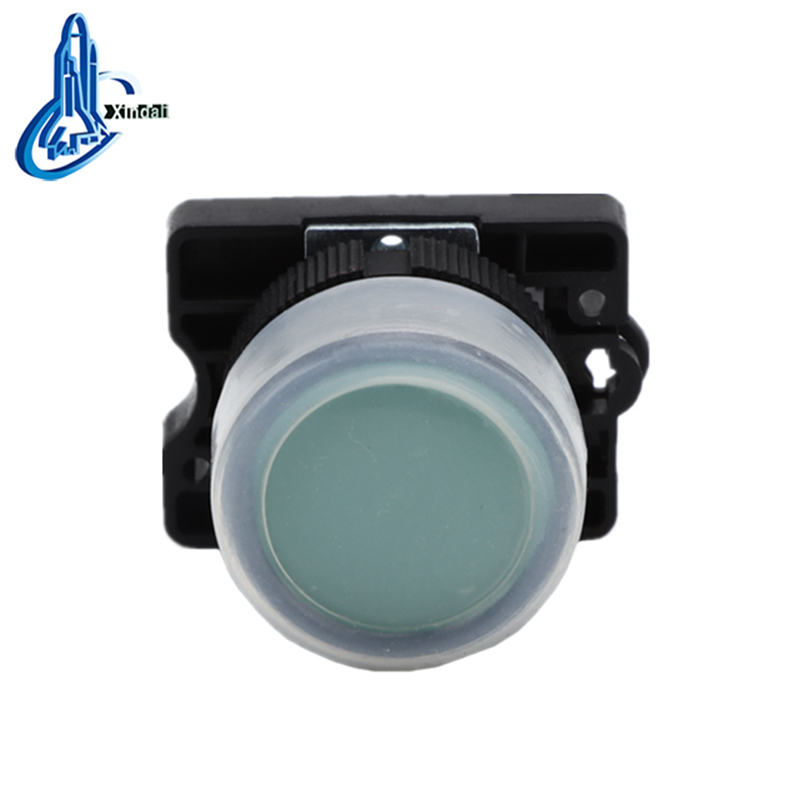

Spring Return Push Button Switch with Green Button
This is a spring return push button switch with a green button. It is designed for use in controlling circuits with AC voltage up to 660V and DC voltage below 400V.
Technical Specifications
Overview
Spring Return Push Button Switch
This spring return push button switch is engineered for reliable control in industrial environments, supporting AC circuits up to 660V and DC circuits below 400V. Featuring a durable green button, it is constructed from high-grade anti-flam plastic and zinc alloy for enhanced safety and longevity. The contact mechanism utilizes a special silver alloy to resist electrical erosion, ensuring consistent performance in demanding applications like signal control and interlocking.
Electrical Specifications
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
- Withstand Voltage
- AC 2.5KV/min
Performance Metrics
Mechanical Life
1,000,000 cycles
Pushbutton Operations
Electrical Life
500,000 cycles
Pushbutton Operations
Signal Lamp Performance
| Parameter | Value |
|---|---|
| Brightness | 60cd/m² |
| Continuous Working Life | 100,000 hours |
| Voltage Wave | ±20% |
Compliance & Standards
Certifications
CEISO 9001RoHSUL
- Compliance Standards
- GB/T14048.1IEC60947-5-1
